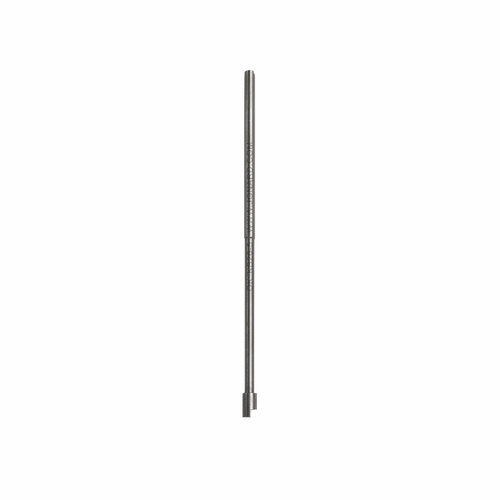

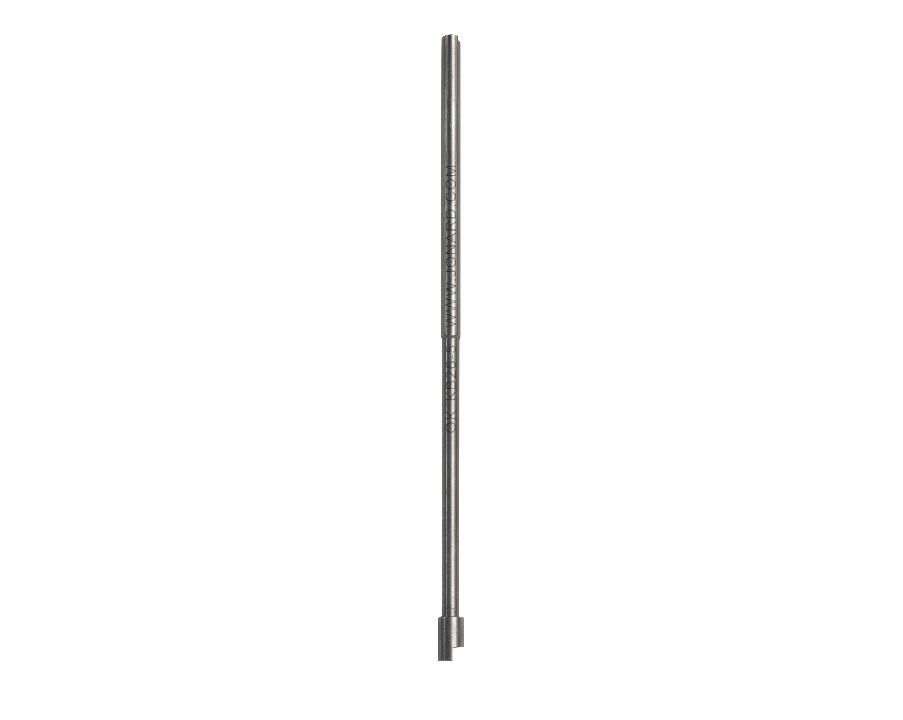

JONARD KB26-5 Wire Wrapping Bit 5", 26 Awg 811490014237
Fully compatible with any make or model of wire wrapping tools, this 5" wire wrapping bit is perfect for wrapping 26 AWG wire around binding posts in hard-to-reach locations when used in conjunction with a wire wrapping tool.
Compatible Wrap Sleeve Part No.: P2426-5 and P2426-5INS
Specifications Sleeve Part No. P2426-5 and P2426-5INS (sold separately)
Wrap Function Wrap
Wrap Type Regular
Wire Gauge 26 AWG (0.40 mm)
Minimum Terminal Diagonal 0.058" (1.47 mm)
Maximum Terminal Diagonal 0.073" (1.85 mm)
Terminal Hole Depth 0.75" (19.05 mm)
Terminal Hole Diameter 0.075" (1.9 mm)
Effective Radius 0.100" (2.54 mm)
Wrap Post Size 0.045" (1.14 mm)
Length 5" (127 mm)
Weight 0.083 lb (37.65 g)
UPC No. 811490014237
