Uniweld Mtw-2 Micro 6000 Welding Tip Upc 30552 New

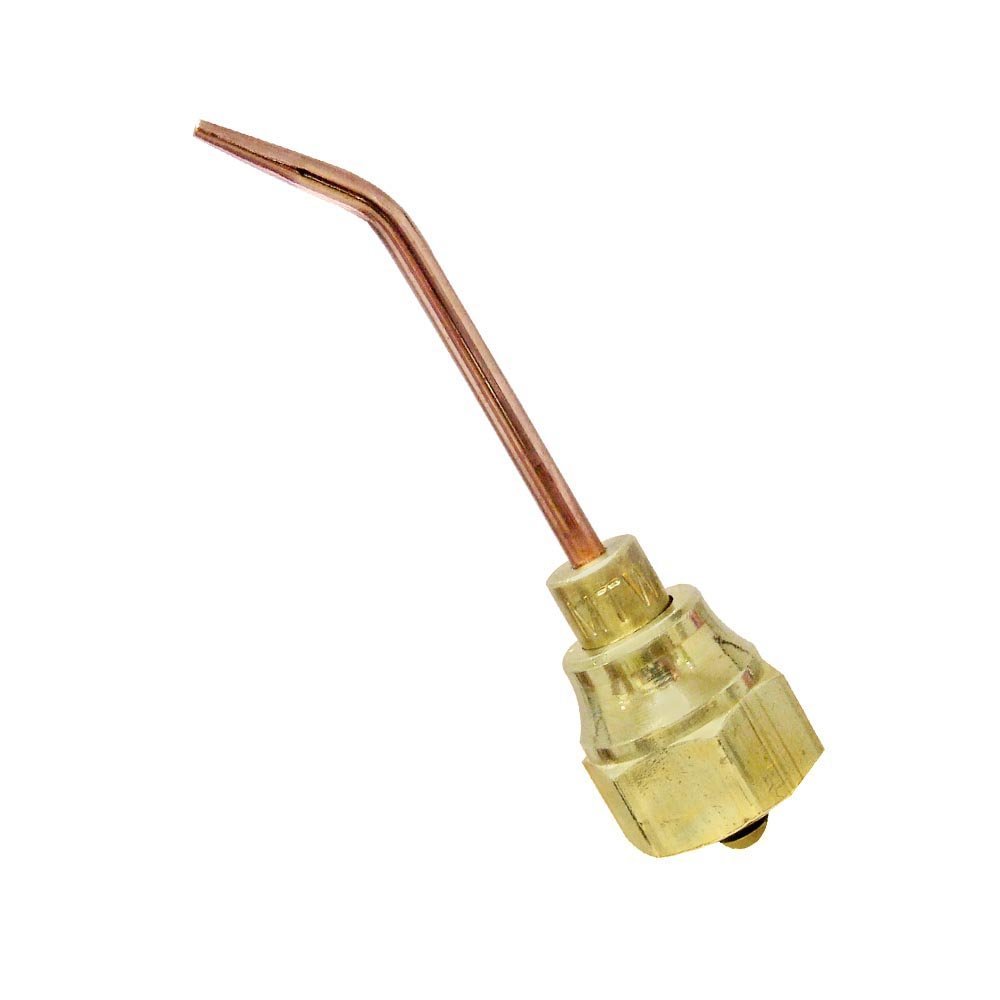

Uniweld Mtw-2 Micro 6000 Miniature Weld/Braze Tip Provides High Performance, Pinpoint Concentrated Heat In Tight Spaces. At Only 3" Long, It Is Ideal For Those Tough-To-Reach Areas. Tip Is Capable Of Welding Up To 3/64" And Brazing Up To 1/2" Of Copper. Tip Elbow Is Copper, Mixer And Nut Are Brass. Has Two O-Ring Seals So Tip Nut Only Needs To Be Firmly Hand Tightened.
High Performance Oxyacetylene Brazing Tips That Provide Precise Concentrated Heat Up To 6000�F
Proudly Made In The Usa And 100% Flame Tested
Provides Pinpoint Concentrated Heat In Tight Spaces
Capable Of Welding Up To 5/64In And Brazing Up To 1 Inch Of Copper
Tip Elbow Is Copper, Mixer And Nut Are Brass
Fits Either The 71 Or Wh550 Welding Handle
Specifications:
Part # Mtw-2
Acetylene Consumption Scfh 2-3
Oxygen (Psig) 5
Acetylene Pressure (Psig) 5
Overall Length 3 Inches
Welding Metal Thickness 3/64 Inches
Brazing Copper Tubing 1/2 Inch
Use With Welding Handle #: 71, Wh250, Wh550, Wh350
Weight : 2.1 Ounces
Product Dimensions: 3 X 0.7 X 0.7 Inches
*Type28, Type17-15 & Type17-30 Tips Can Be Attached To A Wh350 Welding Handle Using An F15 Adaptor - Sold Separately.Read More
