Uniweld 12107 Mastar Acetylne Regulator, B Tank -Psi/Kg- Upc 12107 New

Uniweld 12107 Mastar Acetylne Regulator, B Tank -Psi/Kg- Upc 12107 New

Available*
Item # 37837016
Model # 12107
$108.53
Peac Financing financing available. Learn More
Qty:

* Notes on Availability:
If item is in stock, it will ship same day.
Lead times vary, contact us for more info.
(Images may not be of the actual item being sold.)

  • Product Description
  • You Might Also like
  • Recently Viewed
Generic
Class
Group
Type
Manufacturer
LOT
TORCHES
Tools
Torches- Heat Shrink
Hvac And Plumbing
UNIWELD PRODUCTS INC
CA Prop 65 Warning Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov

Product Description

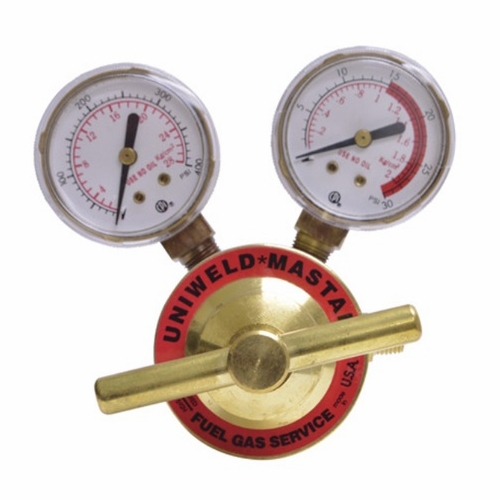

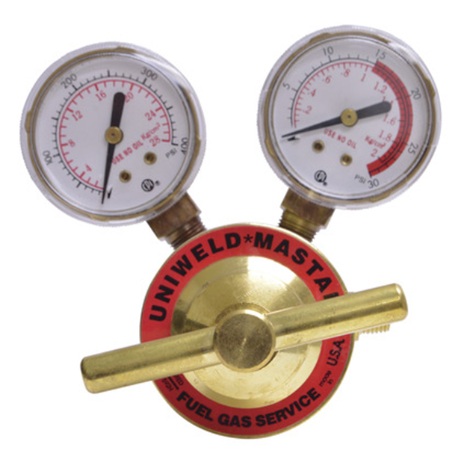

Uniweld 12107 Mastarฎ Acetylne Regulator, B Tank (Psi/Kg) Upc 12107 New

Uniweld 12107 - Mastarฎ Acetylne Regulator, B Tank (Psi/Kg)

- Machined Brass Bonnet And Forged Brass Body. - Easy-To-Read Single Scale 1-1/2" Gauges. - 1-5/8" Tri-Layered Reinforced Neoprene Diaphragm. - Mechanical Stem Type Seat. - Rear Inlet Cylinder Connection. - T-Handle For Smooth Flow Adjustment. - Porous Metal Inlet Filter. - Blow Off Disc Type Pressure Relief For Low Pressure Gauge Protection Only. - Protective Rubber Gauge Boots.

Part # Cga Inlet Outlet Connection Delivery Psig Replacement 1-1/2” Gauges Rso Oxygen 540 “A” (Rh) 3/8”-24 (M) 2-60 G49; 100 Psi G56; 4000Psi Rsob Oxygen 540 “B” (Rh) 9/16”-18 (M) 2-60 G49; 100 Psi G56; 4000Psi 12106 Oxygen 540 “A” (Rh) 3/8”-24 (M) 2-60 G85-1; 100 Psi/Kg G82-1; 4000 Psi/Kg 12107 Acetylene 520 “A” (Lh) 3/8”-24 (M) 2-15 G79-1; 30 Psi/Kg(Rl) G73-1; 400 Psi/Kg Rsmc2 Acetylene 200 “A” (Lh) 3/8”-24 (M) 2-15 G15; 30 Psi (Rl) G19; Contents (400 Psi Max.) Rsmc2B Acetylene 200 “B” (Lh) 9/16”-18 (M) 2-15 G15; 30 Psi (Rl) G19; Contents (400 Psi Max.) Rsb2 Acetylene 520 “A” (Lh) 3/8”-24 (M) 2-15 G15; 30 Psi (Rl) G19; Contents (400 Psi Max.) Rsb2B Acetylene 520 “B” (Lh) 9/16”-18 (M) 2-15 G15; 30 Psi (Rl) G19; Contents (400 Psi Max.)

Depth: 6” Width: 3-3/4” Height: 4-1/4” Weight: 2-1/2 Lbs.

Maximum Flow - 2600 Scfh Free Air @ 70 ฐF No Flow Restrictions

Mastar Rs Chart

Note: The Standard Cubic Foot Per Hour Flows Are Obtained With The Regulator Outlet Full Open With No Restrictions; Using A Preset Outlet Pressure And With Decreasing Cylinder Pressure.
