Product Description

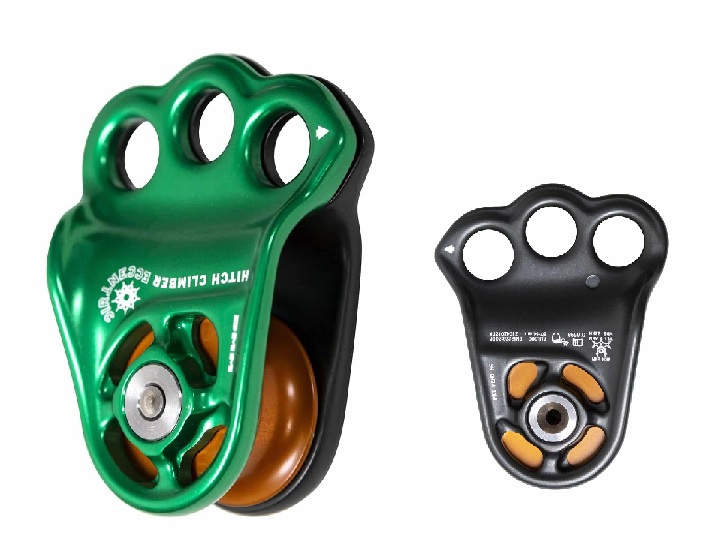

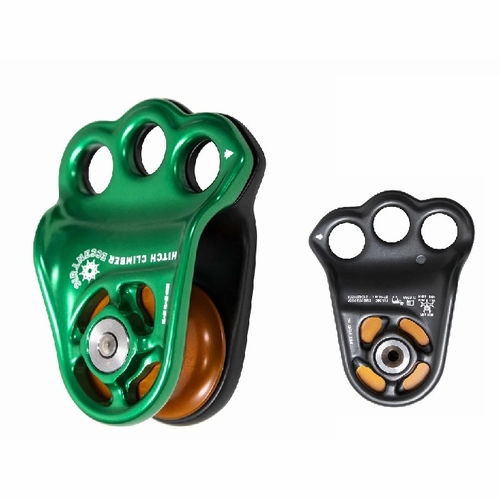

Buckingham 5007P1 Hitch Climber Eccentric Pulley - 5007P1
Buckingham 5007P1
Hitch Climber Eccentric Pulley - 5007P1
The Hitch Climber Eccentric Is An Evolution Of The Classic Triple Attachment Pulley That Became Widely Known As The Hitch Climber Pulley. The Three-Hole Construction Makes Rigging And Organizing Much Simpler And Allows For Off-Center Hanging To Minimize Rope To Pulley Friction.
Sku: 5007P1
Features:
New Pushing Plates Advance Friction Hitches Earlier And More Efficiently.
Optimized Fairlead Flairs.
Three-Hole Rig Plate Facilitates A Wide Range Of Positioning Systems And Neatly Organizes Connectors.
Hot Forged And Cnc Machined Aluminum Side Plates.
Large Diameter High Stiffness Stainless Steel Axle Assembly.
Large Sheave With Efficient Roller Bearing.
Corrosion-Resistant And Tamper-Proof Assembly.
Specifications
Product Number: 5007P1
Product Name: Hitch Climber Eccentric Pulley
Length: 3 3/4"
Width: 3"
Weight: 6.2 Oz.
Sheave Diameter: 1.65"
Sheave Thread Diameter: 1.1"
Min Rope Diameter: 7 Mm
Max Rope Diameter: 14 Mm
Mbs: 32 Kn (7,194 Lbs.)
Wll: 6 Kn (1,349 Lbs.)
Designed For: Specialist Rigging Or Hitch Climbing ApplicationsRead More
