Product Description

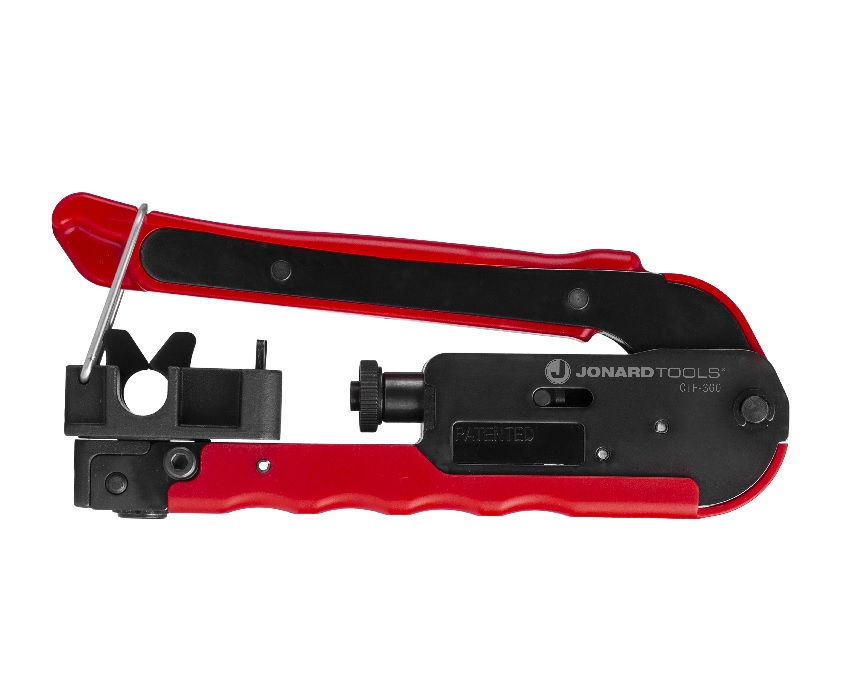

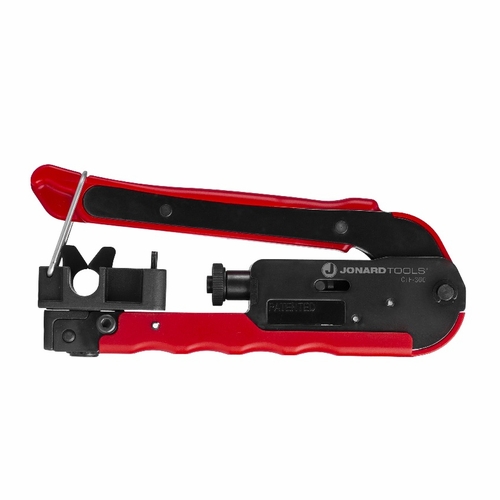

Jonard Ctf-360 360� Compression Tool - Short And Long Style F Connectors 811490011557
Using Specially Designed Jaws To Hold Connectors In Place While Compressing, This Patented Ctf-360 Is Designed To Hold And Compress Connectors Requiring A Full 360 Degree Support. Perfect Tool For Short F Connectors For Rg59/6 Cables And F Connectors For Rg7/11 Cables. This Tool Also Features The Following:
Patented Rotatable Head Provides 360� Connector Support For Short F Connectors Used On Rg59/6 Cables And For F Connectors Used On Rg7/11 Cables
Made Of Durable High Carbon Steel With A Black Oxide Finish
Ergonomic Finger Groove Grips Provide Extra Comfort And Support While Crimping
Fixed Design So No Adjustments Are Needed
Spring-Loaded Hinge Automatically Opens The Tool
Ring Loop Keeps Tool Closed When Not In Use
Compatible Connectors:
Pct: Drs/Trs 7/11, Trs 6/9/59 & Mini/Headend, Trs Ra 6/11,
Ppc: Cmp6, Cmp6Q, Cmp59, Cmp59Q, Cmp11, Ex6Xl, Ex59Xl, Ex59Xlhe, Ex6Xlws, Ex6Lp , Ex7, Ex7N716, Ex11, Ex11N716, Ex320Qr, Ex320N716, Ex59Xlk, Ex6Xlk, Ex6Xlp, Ex7N716Ws, Ex59Xlk, Ex6Xlk, Ex6Xlp, Ex7N716Ws, Ex11N716Ws, Ex59Xlws, Ex11N716Wsplus, Ex11N716Plus, Ex7N716Wsplus, Ex7N716Plus, Ex6Xlplus, Ex6Xlwsplus, Ex59Xlplus, Ex59Xlwsplus, Ex6Xlws, Ex6Iec
Digicon: Ds6, Ds59, Ds59Q, Ds11, Ds7
Belden: Sns11A5Tp275, Sns59Q5Ns, Sns1P59Qs, Sns11A5Ns, Sns7Asns, Sns1P6, Sns59Tp275, Sns6Tp275, Sns7Bns, Sns1P59, Sns1P59Hel, Sns7Bq, Sns7As, Sns7B
Corning Gilbert Ultraease: Gf-Ue-59, Gf-Ue-59Q, Gf-Ue-6, Gf-Ue-6Q, Gf-Ue-5.1, Gf-Urs-6-Sr, Gf-Urs-59-Sr, Gaf-Urs-11Mh
Atx Networks: 9-Mpf-Cq
Plus Many Other Brands.
Connector Type
Model: F Short
Specifications
Connector Type
360, F Short
Material
Carbon Steel
Length
6.22" (158 Mm)
Weight
0.922 Lb (0.418 Kg)
Upc #
811490011557Read More
