JONARD CSS-105 Replacement Blade For CSS-596 811490017443

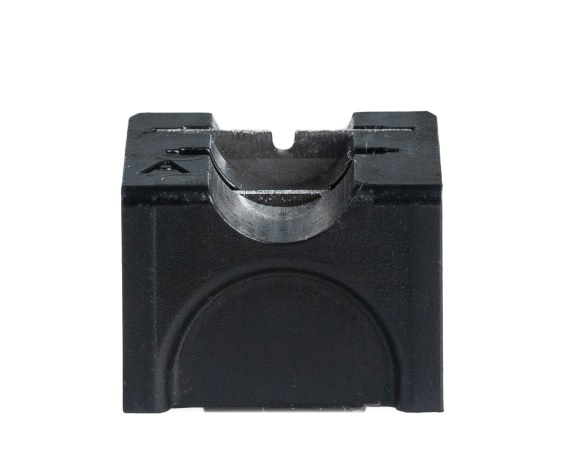

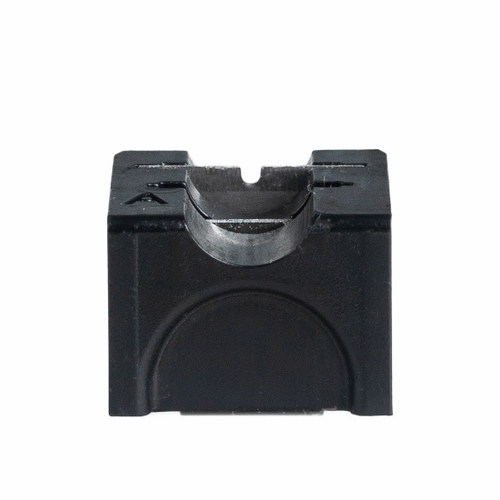

The Replacement Blade Cartridge is for the COAX Stub End Cable Stripper (CSS-596). This cartridge features the following:
Provides a 2-level strip for RG59 & RG6 cables, exposing 1/4" of braid and 5/16" of center conductor Will not cut or damage the braid or score the center conductor High carbon steel blades last for over 5,000 strips on each side Compatible with all of our CSS tools (COAX Stub End Strippers) Model: 1/4" / 5/16"
Specifications Cable Type COAX
Cable Size RG59 and RG6
Strip Length Removes 1/4" jacket, 5/16" shield, & dielectric exposing center conductor
Weight 0.014 lbs (6.35 grams)
UPC No. 811490017443
Blade Replacement Instructions:
To replace blade cartridge: open jaws and push upwards on the front of the blade cartridge. Cartridge will lift out. To install new blade cartridge: insert cartridge into tool and close jaws. Give the jaws a squeeze to insure the blade locks into place.
