FrenchCreek TRV120S12 Traverse 120 foot system (6 inch -12 inch wide x 2-1/4 inch deep base)
Available*
Item # 35217436
Model # TRV120S12
$1,513.01
financing available. Learn More
* Notes on Availability:
If item is in stock, it will ship same day.
Lead times vary, contact us for more info.
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description
FrenchCreek TRV120S12 Traverse 120' system (6"-12" wide x 2-1/4" deep base)
FrenchCreek TRV120S12 Traverse 120' system (6"-12" wide x 2-1/4" deep base)

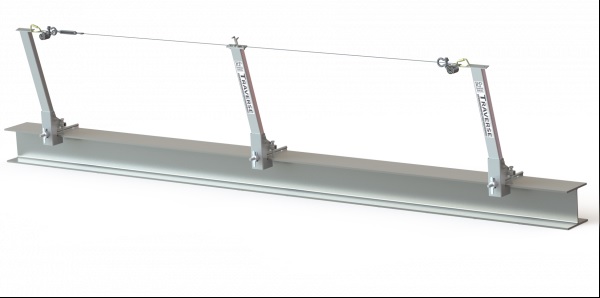

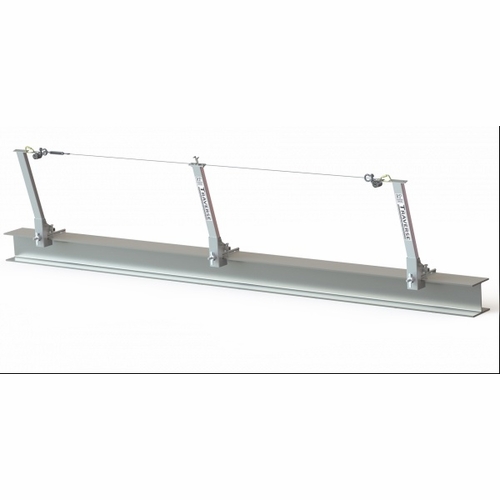

The Traverse Series temporary horizontal lifeline system offers ideal protection when an overhead anchorage doesn’t exist. Extremely lightweight and portable, this system incorporates a modular multi-base design that accommodates a wide range of steel beams.
Lengths available from 10-240’ Fits 6"-12" width, up to a 2 ¼" flange (options available for beams up to 36") Pass-thru adapters allow continuous tie-off and mobility Capacity 2 users per span; no more than 6 per total system 42" working height (above beam) Weight: 60’ system approximately 99.5 lbs.
OVERVIEW 120 Ft Traverse horizontal lifeline system, steel I-beam base (6"-12" base). 3 qty TRV-S12 (steel I-beam stanchion), 1 qty cable assembly with tensioner, 2 qty CHL-CEA (coil energy absorber), 1 qty TRV-PASS (Traverse system pass-through bracket)
FEATURES Installation Flanges 6"-12" width to 2-1/4" deep (options available for beams up to 36") System Includes (3) TRV-S12, (1) cable assembly, (2) CHL-CEA, (1) TRV-PASS
SPECIFICATIONS Length Additonal lengths available 10'-240' ex. TRV60S12, TRV100S12 Capacity 2 users per span, no more than 6 per total system Working Height 42" working height (above beam) Material High strength zinc plated steel Lifeline Constituent Galvanized wire rope Standards Meets or exceeds OSHA & ANSI requirements
FrenchCreek TRV120S12 Traverse 120' system (6"-12" wide x 2-1/4" deep base)
The Traverse Series temporary horizontal lifeline system offers ideal protection when an overhead anchorage doesn’t exist. Extremely lightweight and portable, this system incorporates a modular multi-base design that accommodates a wide range of steel beams.
Lengths available from 10-240’ Fits 6"-12" width, up to a 2 ¼" flange (options available for beams up to 36") Pass-thru adapters allow continuous tie-off and mobility Capacity 2 users per span; no more than 6 per total system 42" working height (above beam) Weight: 60’ system approximately 99.5 lbs.
OVERVIEW 120 Ft Traverse horizontal lifeline system, steel I-beam base (6"-12" base). 3 qty TRV-S12 (steel I-beam stanchion), 1 qty cable assembly with tensioner, 2 qty CHL-CEA (coil energy absorber), 1 qty TRV-PASS (Traverse system pass-through bracket)
FEATURES Installation Flanges 6"-12" width to 2-1/4" deep (options available for beams up to 36") System Includes (3) TRV-S12, (1) cable assembly, (2) CHL-CEA, (1) TRV-PASS
SPECIFICATIONS Length Additonal lengths available 10'-240' ex. TRV60S12, TRV100S12 Capacity 2 users per span, no more than 6 per total system Working Height 42" working height (above beam) Material High strength zinc plated steel Lifeline Constituent Galvanized wire rope Standards Meets or exceeds OSHA & ANSI requirements
