Product Description

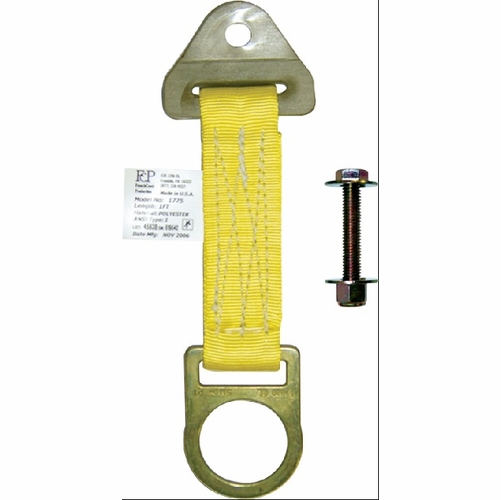

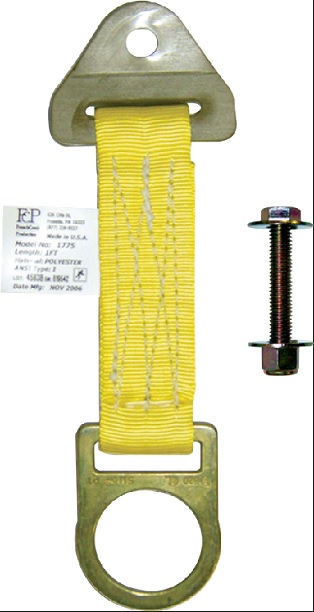

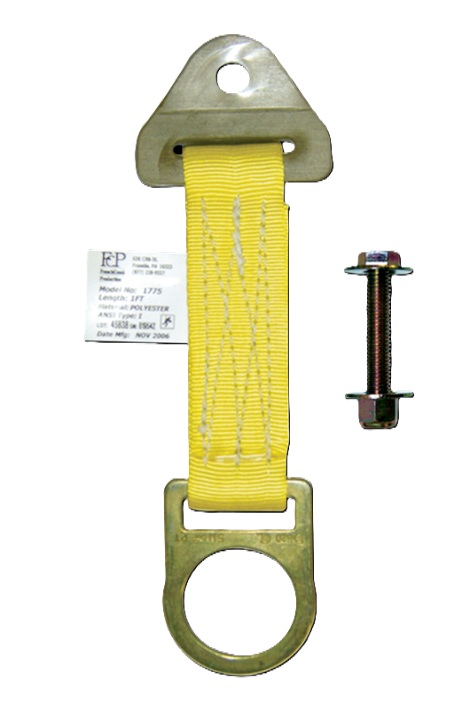

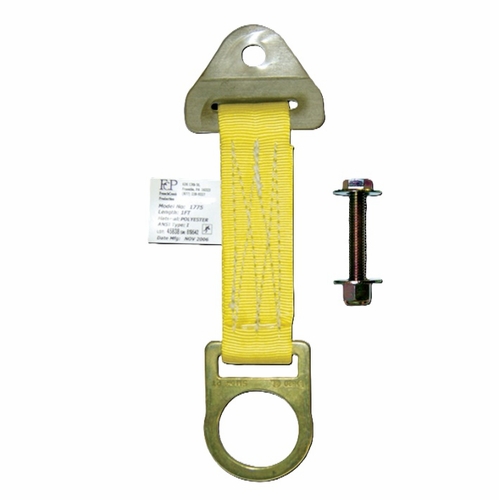

Frenchcreek 1775-S3 Steel Anchorage Connectors 1/4" Stainless Steel Anchor Plate W/3" Bolt Assembly
Frenchcreek 1775-S3
Steel Anchorage Connectors 1/4" Stainless Steel Anchor Plate W/3" Bolt Assembly
Frenchcreek Features A Complete Line Of Steel Anchorage Connectors Ranging From Removable And Reusable To Permanently Affixed. These Anchors Are Connected To Solid Steel Structures And/Or Steel I-Beams.
Steel Anchor Plate (Bolts To Steel Surfaces)
1/4" Stainless Steel Anchor Plate With Bolts, Nuts And Washers
1-3/4" Webbing With D-Ring
1-3/4" Maximum Steel Thickness
Features
Feature 1 Designed To Anchor Into Steel Structure
Feature 2 Plated, Corrosion Resistant Hardware
Feature 3 1/4" Stainless Steel Anchor Plate With Grade 8 Bolt, Nut, And Washer
Feature 4 1-3/4" Polyester Webbing With Dee Ring
Feature 5 Accomodates Up To 1-3/4" Steel Thickness
Specifications
Size Fits 1-3/4" Maximum Steel Thickness
Weight Capacity 130-310 Lbs Ansi 400 Lbs. Osha
Attachment Type Bolt-On
Item Weight 2 Lbs
Material High Strength Stainless Steel, Polyester Webbing, High Strength Alloy Steel Dee Ring
Standards Ansi Z359.1 Osha RequirementsRead More
