BUCKINGHAM 50062D OX BLOCK CLEVIS TOP OX HORN
Available*
Item # 35216125
Model # 50062D
$1,025.46
financing available. Learn More
* Notes on Availability:
If item is in stock, it will ship same day.
Lead times vary, contact us for more info.
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Generic
Class
Group
Type
Manufacturer
LOT
Blocks
Safety Equipment
Personnel Retrieval
Blocks-Placing-Prelashing- Overlashing
Buckingham Manufacturing
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description

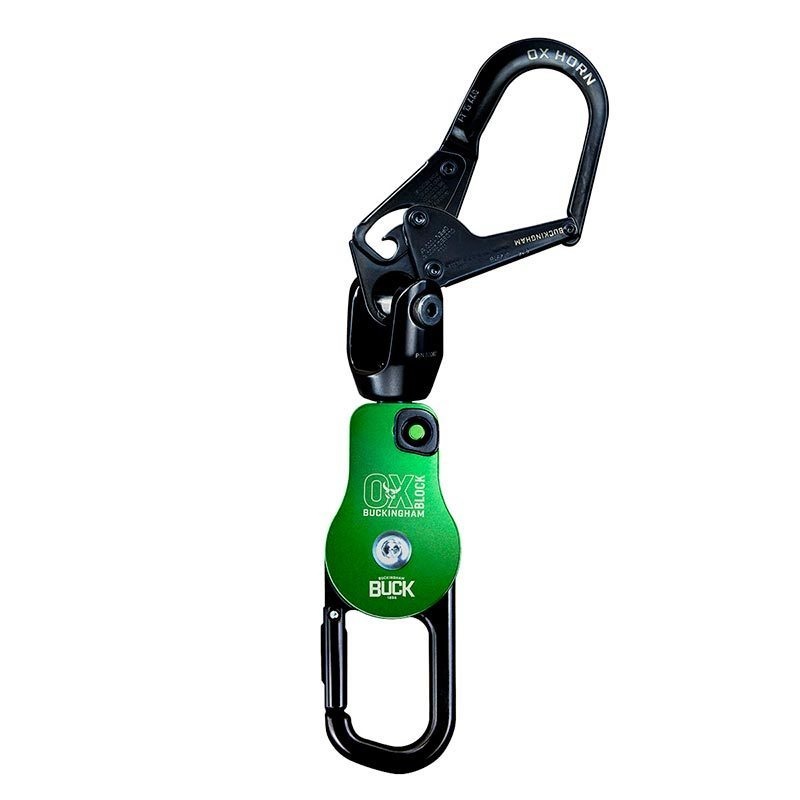

BUCKINGHAM 50062D OX BLOCK CLEVIS TOP OX HORN
BUCKINGHAM 50062D OX BLOCK CLEVIS TOP OX HORN
A new version of the OX BLOCK® that features the OX HORN™ on the shackle top. With its 2" gate opening, it is designed to replace a non-rated "meat hook" currently in use by many linemen. It has a working load limit of 2500 pounds with the gate closed and a 1000 pound working load limit with the gate open.
The OX BLOCK® is a rope snatchblock with an integrated friction bar used for: Hurtman/self-rescue Lowering Raising Snubbing loads
It allows the rigging professional to handle loads with greater control. When lowering loads, tension is transferred from the worker to the OX BLOCK®.
The patented OX BLOCK® replaces standard handline blocks, parted blocks and various snatch blocks. Has greater WLLs than blocks of similar size. When configured with optional pulleys, the OX BLOCK® can be used to create a 4:1, 5:1 or 6:1 mechanical advantage reducing the amount of force needed to lift heavy loads. The advantage of the pulleys used by Buckingham is the swivel side plate that allows for quick and easy rope installation without removing the pulley from the connecting device. ASME B30 Compliant
Product Number: 50062D Product Name: OX BLOCK™ CLEVIS TOP WITH OX HORN™ Material: Lightweight Aluminum Length: 10.5" Width: 2" Gate Opening Capacity: 1.5" Weight: 2.15 Adjustable Sling: No Connector WLL: OX Horn – 2,500 lbs. (Closed Gate) / 1,000 lbs. (Open Gate) HOOK TO EYE: MBS: 6,000 lbs WLL: 1,500 lbf SHEAVE TO EYE: MBS: 10,000 lbs WLL: 2,500 lbf OX Block™ Standards: ASME B30 Compliant Made In USA?: Yes
BUCKINGHAM 50062D OX BLOCK CLEVIS TOP OX HORN
A new version of the OX BLOCK® that features the OX HORN™ on the shackle top. With its 2" gate opening, it is designed to replace a non-rated "meat hook" currently in use by many linemen. It has a working load limit of 2500 pounds with the gate closed and a 1000 pound working load limit with the gate open.
The OX BLOCK® is a rope snatchblock with an integrated friction bar used for: Hurtman/self-rescue Lowering Raising Snubbing loads
It allows the rigging professional to handle loads with greater control. When lowering loads, tension is transferred from the worker to the OX BLOCK®.
The patented OX BLOCK® replaces standard handline blocks, parted blocks and various snatch blocks. Has greater WLLs than blocks of similar size. When configured with optional pulleys, the OX BLOCK® can be used to create a 4:1, 5:1 or 6:1 mechanical advantage reducing the amount of force needed to lift heavy loads. The advantage of the pulleys used by Buckingham is the swivel side plate that allows for quick and easy rope installation without removing the pulley from the connecting device. ASME B30 Compliant
Product Number: 50062D Product Name: OX BLOCK™ CLEVIS TOP WITH OX HORN™ Material: Lightweight Aluminum Length: 10.5" Width: 2" Gate Opening Capacity: 1.5" Weight: 2.15 Adjustable Sling: No Connector WLL: OX Horn – 2,500 lbs. (Closed Gate) / 1,000 lbs. (Open Gate) HOOK TO EYE: MBS: 6,000 lbs WLL: 1,500 lbf SHEAVE TO EYE: MBS: 10,000 lbs WLL: 2,500 lbf OX Block™ Standards: ASME B30 Compliant Made In USA?: Yes
