Buckingham 50062Ac-4 Ox Block W/ Sling

Buckingham 50062Ac-4 Ox Block W/ Sling

Buckingham 50062Ac-4 Ox Block W/ Sling

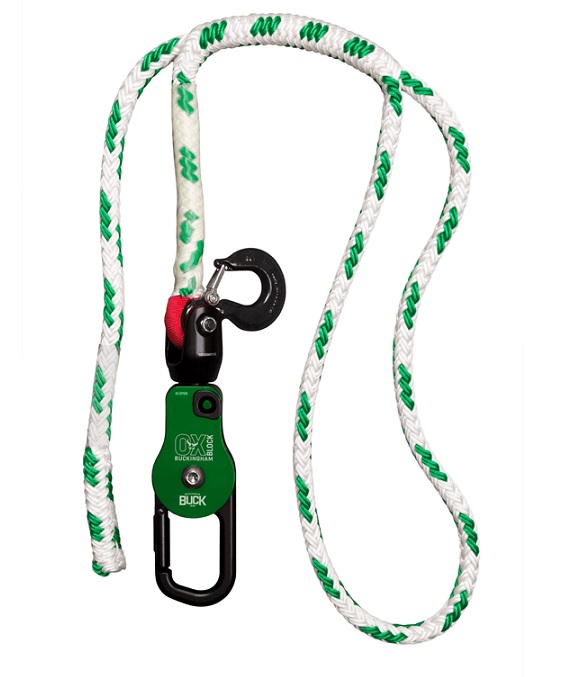

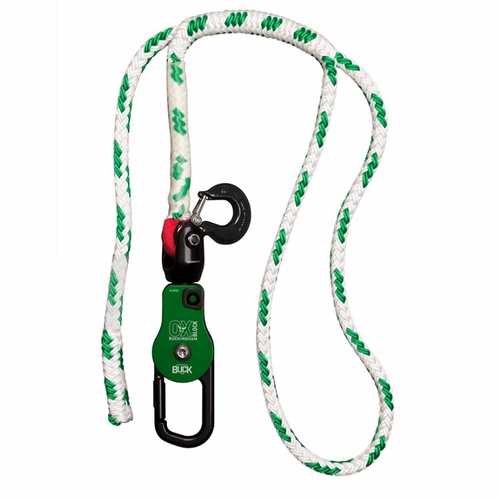

Ox Block� Clevis Top With A 4' Adjustable Sling And Hook. No Handline.

The Ox Block� Is A Rope Snatchblock With An Integrated Friction Bar Used For: Hurtman/Self-Rescue Lowering Raising Snubbing Loads. **Handline Hook And Snap Are Not Intended For Human Support.

The Patented Ox Block� Replaces Standard Handline Blocks, Parted Blocks And Various Snatch Blocks. Has Greater Wlls Than Blocks Of Similar Size. When Configured With Optional Pulleys, The Ox Block� Can Be Used To Create A 4:1, 5:1 Or 6:1 Mechanical Advantage Reducing The Amount Of Force Needed To Lift Heavy Loads. The Advantage Of The Pulleys Used By Buckingham Is The Swivel Side Plate That Allows For Quick And Easy Rope Installation Without Removing The Pulley From The Connecting Device. Asme B30 Compliant

Product Number: 50062Ac-4 Product Name: Ox Block� Clevis Top Handline Assembly Material: Lightweight Aluminum Length: 10.5" Width: 2" Gate Opening Capacity: 1.5" Weight: 4.6 Lbs. Adjustable Sling: 4' X 5/8" Handline Assembly: No Hook To Eye: Mbs: 6,000 Lbs. Wll: 1,500 Lbf. Sheave To Eye: Mbs: 10,000 Lbs. Wll: 2,500 Lbf. Ox Block� Standards: Asme B30 Compliant Made In The Usa?: YesRead More
