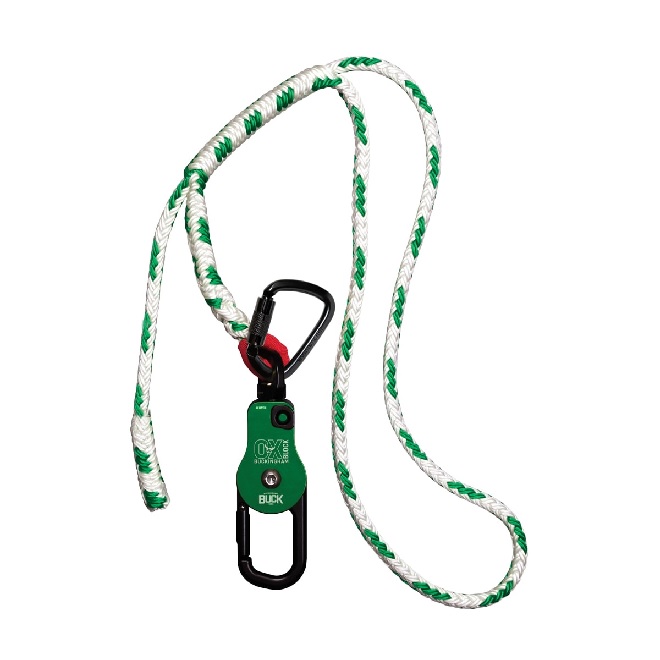

BUCKINGHAM 50061A-7 OX BLOCK W/ SLING
Available*
Item # 35216025
Model # 50061A-7
$1,105.85
financing available. Learn More
* Notes on Availability:
If item is in stock, it will ship same day.
Lead times vary, contact us for more info.
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Generic
Class
Group
Type
Manufacturer
LOT
Blocks
Safety Equipment
Personnel Retrieval
Blocks-Placing-Prelashing- Overlashing
Buckingham Manufacturing
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description
BUCKINGHAM 50061A-7 OX BLOCK W/ SLING
BUCKINGHAM 50061A-7 OX BLOCK W/ SLING
OX BLOCK® with 7' adjustable sling & steel carabiner.
The OX BLOCK® handline assembly, as a whole, can be used for hurtman rescue. However, DO NOT USE P/N 2406 handline hook [MBS 500lbs] or handline snap [MBS 750 lbs] for human support. All components used for rescue must have a 5000 lb. rating, configured to accept human support. For rigging, ensure the weak link has a 4 to 1 safety factor.
The OX BLOCK® is a rope snatchblock with an integrated friction bar used for:
Hurtman/self-rescue Lowering Raising Snubbing loads
It allows the rigging professional to handle loads with greater control. When lowering loads, tension is transferred from the worker to the OX BLOCK®.
The patented OX BLOCK® replaces standard handline blocks, parted blocks and various snatch blocks. Has greater WLLs than blocks of similar size. When configured with optional pulleys, the OX BLOCK® can be used to create a 4:1, 5:1 or 6:1 mechanical advantage reducing the amount of force needed to lift heavy loads. The advantage of the pulleys used by Buckingham is the swivel side plate that allows for quick and easy rope installation without removing the pulley from the connecting device. ASME B30 Compliant
Product Number: 50061A-4 Product Name: OX BLOCK™ HANDLINE ASSEMBLY Material: Polyester Rope, Aluminum OX Block (50061), Steel rigging carabiner (5005S5), Steel Hook (2406) Length: 7' Sling (Rope), 8.27" OX Block (50061), 4.68" carabiner (5005S5) Width: 5/8" Rope, 1.99" OX Block (50061), 3.07" carabiner (5005S3) Weight Rating: 5,000 lbs. Weight: 4.25 lbs. Breaking Strength: Carabiner (5005S5)- MBS 11,240lbs (50KN), OX Block (50061)- MBS (Sheave to eye)- 10,000lbf/MBS (Hook to eye)- 6,000lbf. WLL-50061A-4 (Sling Only)- Straight- 3,200 lbs, Choker- 2,560 lbs, Basket- 6,400lbs. SWL- 2406 (Hook) 500lbs. Links to Relevant Hardware: 50061 OX Block™ 5005S5 Carabiner OX Block™ Standards: ASME B30 Compliant Made In USA?: Yes
BUCKINGHAM 50061A-7 OX BLOCK W/ SLING
OX BLOCK® with 7' adjustable sling & steel carabiner.
The OX BLOCK® handline assembly, as a whole, can be used for hurtman rescue. However, DO NOT USE P/N 2406 handline hook [MBS 500lbs] or handline snap [MBS 750 lbs] for human support. All components used for rescue must have a 5000 lb. rating, configured to accept human support. For rigging, ensure the weak link has a 4 to 1 safety factor.
The OX BLOCK® is a rope snatchblock with an integrated friction bar used for:
Hurtman/self-rescue Lowering Raising Snubbing loads
It allows the rigging professional to handle loads with greater control. When lowering loads, tension is transferred from the worker to the OX BLOCK®.
The patented OX BLOCK® replaces standard handline blocks, parted blocks and various snatch blocks. Has greater WLLs than blocks of similar size. When configured with optional pulleys, the OX BLOCK® can be used to create a 4:1, 5:1 or 6:1 mechanical advantage reducing the amount of force needed to lift heavy loads. The advantage of the pulleys used by Buckingham is the swivel side plate that allows for quick and easy rope installation without removing the pulley from the connecting device. ASME B30 Compliant
Product Number: 50061A-4 Product Name: OX BLOCK™ HANDLINE ASSEMBLY Material: Polyester Rope, Aluminum OX Block (50061), Steel rigging carabiner (5005S5), Steel Hook (2406) Length: 7' Sling (Rope), 8.27" OX Block (50061), 4.68" carabiner (5005S5) Width: 5/8" Rope, 1.99" OX Block (50061), 3.07" carabiner (5005S3) Weight Rating: 5,000 lbs. Weight: 4.25 lbs. Breaking Strength: Carabiner (5005S5)- MBS 11,240lbs (50KN), OX Block (50061)- MBS (Sheave to eye)- 10,000lbf/MBS (Hook to eye)- 6,000lbf. WLL-50061A-4 (Sling Only)- Straight- 3,200 lbs, Choker- 2,560 lbs, Basket- 6,400lbs. SWL- 2406 (Hook) 500lbs. Links to Relevant Hardware: 50061 OX Block™ 5005S5 Carabiner OX Block™ Standards: ASME B30 Compliant Made In USA?: Yes
