PELSUE PH05R Personnel Hoist with 50 foot x 1/4 inch synthetic cord & Pelsue Davit Bracket
Item # 35202490
Model # PH05R
Call for FREE Estimate
CLICK OR DIAL 800-422-4823
* Notes on Availability:
If item is in stock, it will ship same day.
Lead times vary, contact us for more info.
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Generic
Class
Group
Type
Manufacturer
LOT
Winches
Safety Equipment
Personnel Retrieval
Winches- Personnel retrieval
Pelsue
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description

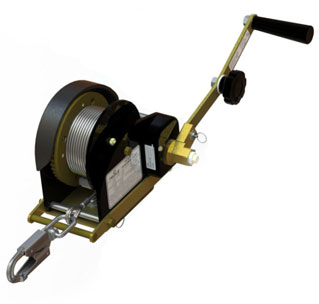

PELSUE PH05C Personnel Hoist with 50’ stainless steel cable and Pelsue Davit Bracket
PH Series Man Rated Hoists Pelsue PH Series Hoists are designed and tested as personnel hoists for a single user Mechanical Retrieval/ Lifting Devices as defined in OSHA 1910.146 & ANSI Z117.1 for attaching a person that is entering or exiting from a confined space. Pelsue PH Series Hoists are built with an internal braking system to prevent the accidental pay out of line, as well as a backup locking pawl system to prevent “freewheeling” of the hoist. In the case that the primary brake ever becomes disabled the Pelsue personnel hoist has a built in secondary “overspeed” brake for redundancy. Hoist line extension (pay out) should occur ONLY when the handle is turned counterclockwise AND a force of AT LEAST 10 lbs.(4.5 kg.) is applied to the line. The hoist frame attaches to a quick release bracket which can then be mated to the various Pelsue structures and components.
Features: Designed to meet ANSI Z117.1 standard Man rated to 310 lbs. Secondary “overspeed” brake 5.5:1 gear ratio single speed drive Retrieval rate of 23’ per minute Continuous braking drive prevents free wheeling Double pawls on friction brake provide back up safety Low wear, high temperature brake pads require minimal maintenance Anti-friction drive bearings assure trouble free life in continuous use Three permanent wraps of cable on the drum to assure low cable attachment loads Tensioner pad prevent loosening of cable lays Slip clutch drive prevents back winding of cable drum Zinc plated and anodized aluminum components reduces corrosion in harsh environments Mounting means provided for quick attachment Available with stainless steel cable or synthetic rope Removable drive handle with speeder knob Gear teeth cover Soft-sided carry case included
PH Series Man Rated Hoists Pelsue PH Series Hoists are designed and tested as personnel hoists for a single user Mechanical Retrieval/ Lifting Devices as defined in OSHA 1910.146 & ANSI Z117.1 for attaching a person that is entering or exiting from a confined space. Pelsue PH Series Hoists are built with an internal braking system to prevent the accidental pay out of line, as well as a backup locking pawl system to prevent “freewheeling” of the hoist. In the case that the primary brake ever becomes disabled the Pelsue personnel hoist has a built in secondary “overspeed” brake for redundancy. Hoist line extension (pay out) should occur ONLY when the handle is turned counterclockwise AND a force of AT LEAST 10 lbs.(4.5 kg.) is applied to the line. The hoist frame attaches to a quick release bracket which can then be mated to the various Pelsue structures and components.
Features: Designed to meet ANSI Z117.1 standard Man rated to 310 lbs. Secondary “overspeed” brake 5.5:1 gear ratio single speed drive Retrieval rate of 23’ per minute Continuous braking drive prevents free wheeling Double pawls on friction brake provide back up safety Low wear, high temperature brake pads require minimal maintenance Anti-friction drive bearings assure trouble free life in continuous use Three permanent wraps of cable on the drum to assure low cable attachment loads Tensioner pad prevent loosening of cable lays Slip clutch drive prevents back winding of cable drum Zinc plated and anodized aluminum components reduces corrosion in harsh environments Mounting means provided for quick attachment Available with stainless steel cable or synthetic rope Removable drive handle with speeder knob Gear teeth cover Soft-sided carry case included
