PELSUE FT-C70 FALL UNI-LITE ARREST TOWER, SYNTHETIC

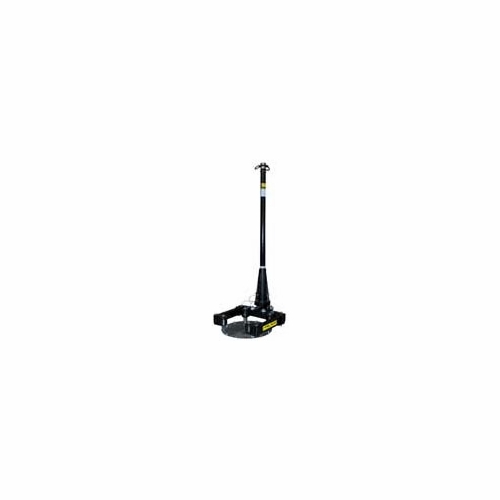

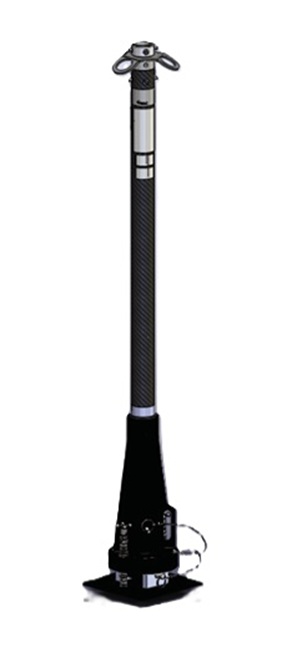

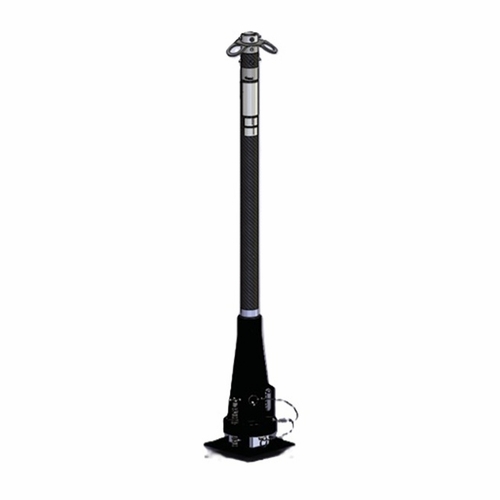

PELSUE FT-C70 FALL UNI-LITE ARREST TOWER, SYNTHETIC NEW Fall Arrest Towers The Uni-Lite fall arrest tower is intended to provide an elevated fall arrest anchorage for up to three persons. The system is composed of a composite tube and cast aluminum base. The upper insert features a 360° swivel tie off for attachment of up to three personal fall arrest systems, when used in conjunction with a 900 lb. MAF (Maximum Arrest Force) fall arrest device. The composite tower is inserted into a cast aluminum base that can be pinned in place to any one of the various base plates [may be used with a number of different weld-on or bolt-on mounting bases (see below). May also be used with the adjustable anchor clamp]. This portable anchorage system can be used on top of transformers and other areas where walking/working surface hazards may be present. Certified as a 3-person fall arrest anchorage as per OSHA Section 1910.66 & ANSI Section A10.14.

Base Plates The base plates provide multiple attachment options for the various fall arrest towers. Once the base plate is attached, the tower simply pins in place for use. Custom designs available. Call for details.

Specifications:

Item # Description FT-C70 Uni-Lite Fall Arrest Tower

FB-SW1 Weld on Base Plate

FB-SB1 Bolt on Base Plate

FB-BT1 Bolt on Base Plate Adapter

FB-VA1 Round Base Plate

FB-RB1 Round Base Plate for stud weld

BC-14S Anchor Clamp Base - adjustable TFAT-14C Telescopic Extension FT-C70 Carry Case - Model# 122870-001
