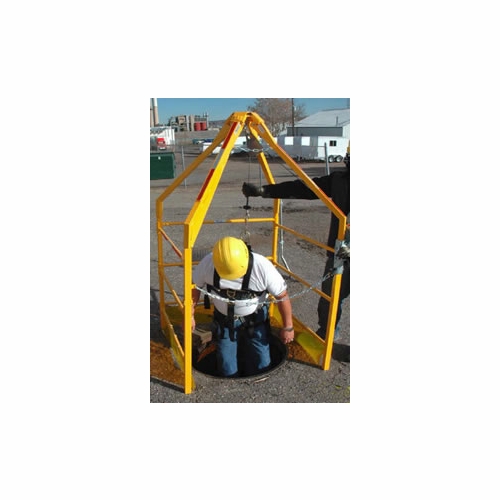

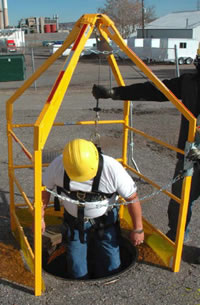

PELSUE LG5A HEAVY DUTY LIFEGUARD 5000 LB. LIFEGUARD SYSTEM-HEAVY DUTY W/ LEVELING FEET NEW LG5A LIfeguard Fall Arrest System
Man Rated Capacity.350 lbs. (159Kg)*
Min. Proof Load.5000 lbs. (2268 Kg)
Retrieval Safety Factor 13 to 1
Fall Arrest Safety Factor..5 to 1* (Under normal use when fully deployed)
System meets OSHA, ANSI, & CSA safety standards when used by a qualified individual.
Dimensions.42 W X 42 L X 75 H INCHES
Materials & Construction:
Upper Arm Assembly Structural Grade Aluminum & Steel
Guard Assembly.Structural Grade Aluminum
Winch Mount 5052-H32 Aluminum
Hardware Grade 5 Steel
Upper Arm Assembly 34 lbs.
Guard Assembly. 33 lbs.
Standard Set Up Requirements:
Level Ground surface or proper adjustment of levelling feet (sold separately)
All locking pins and arms to be securely in place.
Winch or SRL to be securely mounted to winch mount.
Model # Description
1 pulley, 1 carabiner, 4 leveling feet, and 1 winch bracket
LF5-B Bracket to mount secondary winch
LG5-C Carry case for upper section only
900 LB. MAXIMUM ARREST FORCE FALL ARREST DEVICE MUST BE USED WHEN SYSTEM IS DEPLOYED AS A FALL ARREST SYSTEM! Certified Man-Rated retrieval winch, cable, Snap Hook and attachment devices must be used for full compliance!
shipping weight & dimensions
LG5-TA (Upper assy.) 50 Lbs. 49"x14"x13"
LG5-GA (Lower assy.) 43 Lbs. 46"x46"x6"
