GMP 71637 KIT TRAVELING GROUND
Available*
Item # 33620600
Model # 71637
$1,932.21
financing available. Learn More
* Notes on Availability:
If item is in stock, it will ship same day.
Lead times vary, contact us for more info.
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Generic
Class
Group
Type
Manufacturer
LOT
Grounding
Safety Equipment
Line Construction- Placing
Guards
GMP General Machine Products
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description

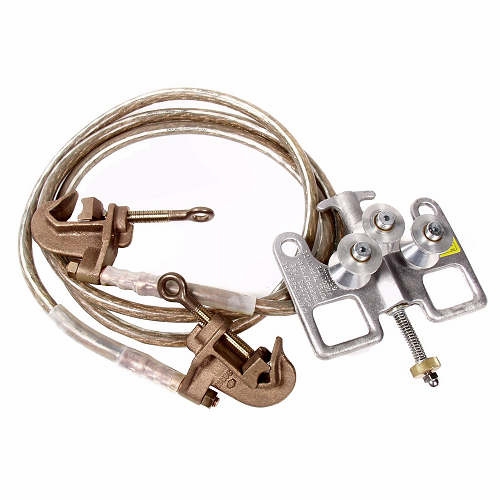

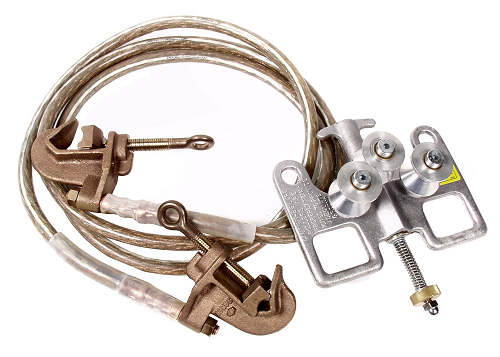

GENERAL MACHINE PRODUCTS 71637 KIT TRAVELING GROUND NEW The grounding roller provides a means of maintaining a continuous ground connection to moving conductors such as strand, open wire, or pull line being placed from a stationary reel.
The roller must be connected to a suitable ground by means of one of the 1/0 jumper cables provided in order to minimize the voltage on the conductors mentioned above in the event of an accidental contact with an energized power conductor.
Kit comes complete with: 1 each, aluminum, 3 roller, traveling ground equipped with two 5/8 in. (16 mm) buss bars for 2 jumper cable and clamps and two each, 1 in. (25 mm)tie back holes in frame. 1 each, jumper cable composed of 30', 1/0, clear PVC Grounding roller on messenger strand jacketed, copper jumper cable with each end fitted with copper compression ferrules and two 5/8 in. (16 mm) - NC threaded bronze grounding clamps. 1 each, jumper cable composed of 2 ft (.61 m), 1/0 clear PVC jacketed, copper jumper cable with each end fitted with copper compression ferrules and two 5/8 in. (16 mm) - NC threaded bronze ground clamps. 1 each, instruction card which outlines use of grounding kit as per OSHA requirements.
Consult factory for jumper lengths.
Traveling Ground Kit P/N 71637 Weight: 29 lbs. (13 kgs
The roller must be connected to a suitable ground by means of one of the 1/0 jumper cables provided in order to minimize the voltage on the conductors mentioned above in the event of an accidental contact with an energized power conductor.
Kit comes complete with: 1 each, aluminum, 3 roller, traveling ground equipped with two 5/8 in. (16 mm) buss bars for 2 jumper cable and clamps and two each, 1 in. (25 mm)tie back holes in frame. 1 each, jumper cable composed of 30', 1/0, clear PVC Grounding roller on messenger strand jacketed, copper jumper cable with each end fitted with copper compression ferrules and two 5/8 in. (16 mm) - NC threaded bronze grounding clamps. 1 each, jumper cable composed of 2 ft (.61 m), 1/0 clear PVC jacketed, copper jumper cable with each end fitted with copper compression ferrules and two 5/8 in. (16 mm) - NC threaded bronze ground clamps. 1 each, instruction card which outlines use of grounding kit as per OSHA requirements.
Consult factory for jumper lengths.
Traveling Ground Kit P/N 71637 Weight: 29 lbs. (13 kgs
