GMP 71136 SWIVEL BALL BEARING 2250 lb HEX
Available*
Item # 31617000
Model # 71136
$177.11
financing available. Learn More
* Notes on Availability:
If item is in stock, it will ship same day.
Lead times vary, contact us for more info.
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Generic
Class
Group
Type
Manufacturer
LOT
Swivels
Tools
Line Construction- Placing
Swivels- Pulling- Rodding
GMP General Machine Products
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description
GMP 71136 SWIVEL BALL BEARING 2250 # HEX NEW
GMP 71136 SWIVEL BALL BEARING 2250 # HEX NEW

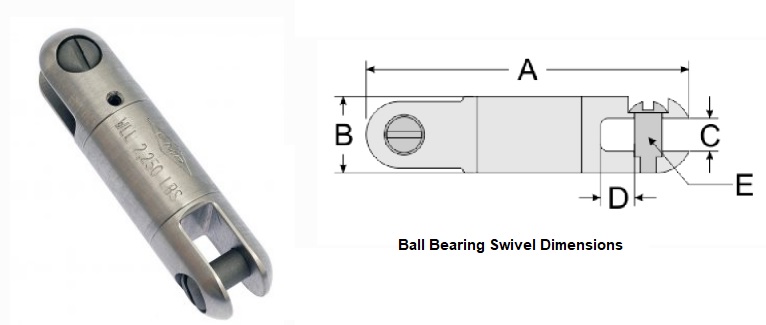

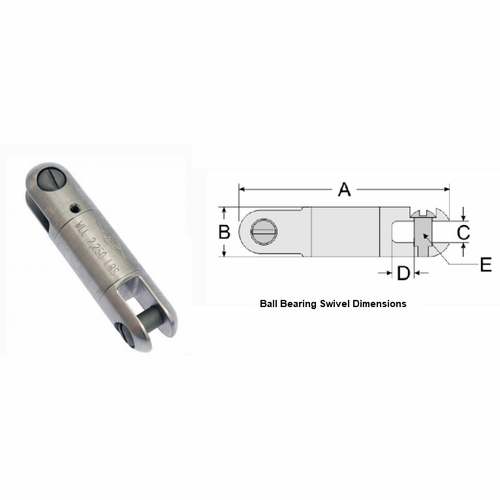

P/N 71136 BALL BEARING SWIVEL 2250 # HEX Working Load Limit Under Ground 2,250 lbs. (10.0kN) Working Load Limit Aerial 1,350 lbs. (6.0kN) Eye Width 3/8 inch (9.5mm) Repl. Pin # 33155 Hex Weight 0.45 lbs. (0.20 kg) Dimensions: A 3.39 inches (86.1mm) B 0.86 inches (22.3mm) C 0.37 inches (9.4mm) D 0.38 inches (9.6mm) E 0.308 inches (7.8mm)
These tough swivels are designed to handle higher thrust loads for extra cable safety and faster straight pulls. Precision-machined body is made of high quality stainless steel with higher working load ratings than comparably sized swivels available on the market These heavy-duty swivels are built with a thrust bearing for tensile load and a radial bearing for bending load Working Load Limit for under ground applications is based on a horizonal pull of 3:1 while aerial applications have a WLL of 5:1 CAUTION: To be used for underground cable installation only. These swivels are Not Designed for Directional Drilling applications. They are designed for pulling cable or rope. Do not allow these swivels to be pulled around a bullwheel or capstan. Damage to the swivel and/or wheel may occur.
GMP 71136 SWIVEL BALL BEARING 2250 # HEX NEW
P/N 71136 BALL BEARING SWIVEL 2250 # HEX Working Load Limit Under Ground 2,250 lbs. (10.0kN) Working Load Limit Aerial 1,350 lbs. (6.0kN) Eye Width 3/8 inch (9.5mm) Repl. Pin # 33155 Hex Weight 0.45 lbs. (0.20 kg) Dimensions: A 3.39 inches (86.1mm) B 0.86 inches (22.3mm) C 0.37 inches (9.4mm) D 0.38 inches (9.6mm) E 0.308 inches (7.8mm)
These tough swivels are designed to handle higher thrust loads for extra cable safety and faster straight pulls. Precision-machined body is made of high quality stainless steel with higher working load ratings than comparably sized swivels available on the market These heavy-duty swivels are built with a thrust bearing for tensile load and a radial bearing for bending load Working Load Limit for under ground applications is based on a horizonal pull of 3:1 while aerial applications have a WLL of 5:1 CAUTION: To be used for underground cable installation only. These swivels are Not Designed for Directional Drilling applications. They are designed for pulling cable or rope. Do not allow these swivels to be pulled around a bullwheel or capstan. Damage to the swivel and/or wheel may occur.
