GMP 80975 SHEAVE MANHOLE 5 inch HEAVY DUTY SHIPS LTL
Available*
Item # 31365055
Model # 80975
$2,318.69
financing available. Learn More
* Notes on Availability:
If item is in stock, it will ship same day.
Lead times vary, contact us for more info.
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Generic
Class
Group
Type
Manufacturer
LOT
Sheaves
Tools
Line Construction- Placing
Blocks-Placing-Prelashing- Overlashing
GMP General Machine Products
Corner Blocks-Lip Rollers-90 degree Blocks
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description
GMP 80975 SHEAVE MANHOLE 5 inch HEAVY DUTY NEW SHIPS LTL
GMP 80975 SHEAVE MANHOLE 5 inch HEAVY DUTY NEW SHIPS LTL
P/N 80975 5 in. Heavy Duty Manhole Sheave Weight 74 lbs. (34 kgs) SHIPS LTL FREIGHT

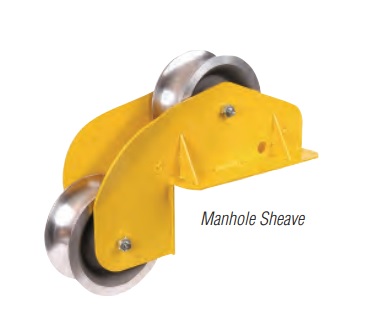

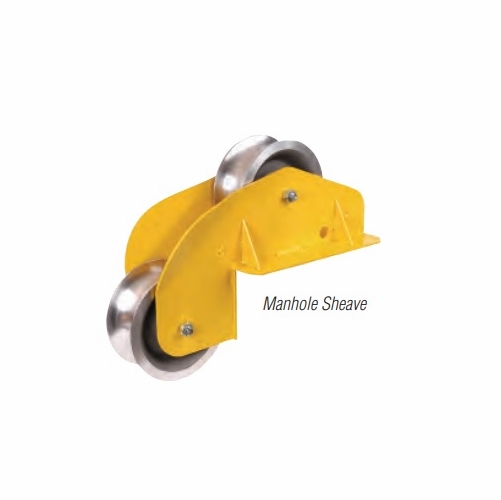

The Manhole Sheave or “Pittsburgh” is used to guide pulling line or cable over the manhole edge when placing and removing cable in manholes which are equipped with pulling in irons to support a sheave and shackle assembly. Consists of a reinforced, heat-treated wrought aluminum alloy frame with two self-lubricating, bronze bushed aluminum sheaves The frame also has a hole in each side plate so you can insert a 1 1/4 in. (32mm) dia. digging bar parallel to the ground to keep the sheave from being knocked into the manhole Approximate overall unit dimensions: 30 in. (762mm) L x 12 in. (305mm) W x 22 in. (559mm) H Sheaves are available to accommodate cable up to 3 in. (76mm), 4 in. (100mm) or 5 in. (130mm) diameters Standard units are rated at 7,500 lbs. (3.3kN) The 80975 heavy duty 5 in. model is rated for 10,000 lbs. (4.4kN)
GMP 80975 SHEAVE MANHOLE 5 inch HEAVY DUTY NEW SHIPS LTL
P/N 80975 5 in. Heavy Duty Manhole Sheave Weight 74 lbs. (34 kgs) SHIPS LTL FREIGHT
The Manhole Sheave or “Pittsburgh” is used to guide pulling line or cable over the manhole edge when placing and removing cable in manholes which are equipped with pulling in irons to support a sheave and shackle assembly. Consists of a reinforced, heat-treated wrought aluminum alloy frame with two self-lubricating, bronze bushed aluminum sheaves The frame also has a hole in each side plate so you can insert a 1 1/4 in. (32mm) dia. digging bar parallel to the ground to keep the sheave from being knocked into the manhole Approximate overall unit dimensions: 30 in. (762mm) L x 12 in. (305mm) W x 22 in. (559mm) H Sheaves are available to accommodate cable up to 3 in. (76mm), 4 in. (100mm) or 5 in. (130mm) diameters Standard units are rated at 7,500 lbs. (3.3kN) The 80975 heavy duty 5 in. model is rated for 10,000 lbs. (4.4kN)
