GMP 10105 MANDREL FLEX 4 3/4 inch FOR 5 inch
Available*
Item # 31200715
Model # 10105
$349.42
financing available. Learn More
* Notes on Availability:
If item is in stock, it will ship same day.
Lead times vary, contact us for more info.
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Generic
Class
Group
Type
Manufacturer
LOT
Mandrels
Tools
Line Construction- Placing
Missiles- Mice- Projectiles
GMP General Machine Products
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description

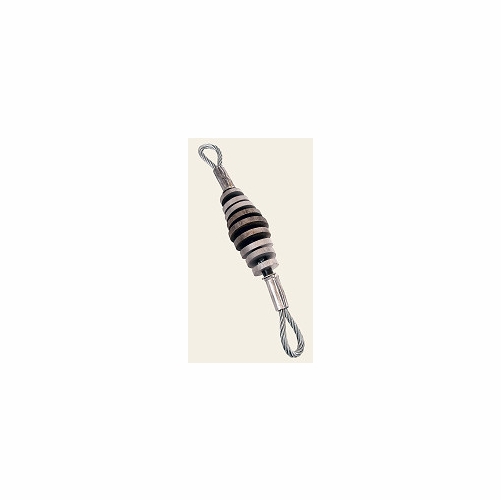

GENERAL MACHINE PRODUCTS 10105 MANDREL FLEX 4 3/4" FOR 5" NEW These mandrels are perfect for use in conduit with extreme bends
Available for conduit sizes ranging from 2 in. (50 mm) to 5 in. (127 mm)
The disks are made from hardened steel which are graduated in size and bend independently along the flexible cable body
P/N Conduit ID Weight Work Load Limit (WLL)
--------------------------------------------------------------------------------
10102 2 in. (50 mm) 8 lbs. (3.63 kgs) 2250 lbs (1020 kgs) 10106 2.5 in. (63 mm) 12 lbs.(5.5 kgs) 2250 lbs (1020 kgs) 10103 3 in. (76 mm) 15 lbs.(6.80 kgs) 4800 lbs (2177 kgs) 10107 3.5 in. (89 mm) 16 lbs.(7.3 kgs) 4800 lbs (2177 kgs) 10104 4 in. (101 mm) 17 lbs.(7.71 kgs) 4800 lbs (2177 kgs) 10105 5 in. (127 mm) 27 lbs.(12.2 kgs) 4800 lbs (2177 kgs)
Available for conduit sizes ranging from 2 in. (50 mm) to 5 in. (127 mm)
The disks are made from hardened steel which are graduated in size and bend independently along the flexible cable body
P/N Conduit ID Weight Work Load Limit (WLL)
--------------------------------------------------------------------------------
10102 2 in. (50 mm) 8 lbs. (3.63 kgs) 2250 lbs (1020 kgs) 10106 2.5 in. (63 mm) 12 lbs.(5.5 kgs) 2250 lbs (1020 kgs) 10103 3 in. (76 mm) 15 lbs.(6.80 kgs) 4800 lbs (2177 kgs) 10107 3.5 in. (89 mm) 16 lbs.(7.3 kgs) 4800 lbs (2177 kgs) 10104 4 in. (101 mm) 17 lbs.(7.71 kgs) 4800 lbs (2177 kgs) 10105 5 in. (127 mm) 27 lbs.(12.2 kgs) 4800 lbs (2177 kgs)
