DCD 08500-880 Poly Duct Checker™ 8 inch Dia, Sched.80 Duct
Available*
Item # 30509350
Model # 08500-880
$469.13
financing available. Learn More
* Notes on Availability:
If item is in stock, it will ship same day.
Lead times vary, contact us for more info.
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Generic
Class
Group
Type
Manufacturer
LOT
Mandrels
Tools
Line Construction- Placing
Missiles- Mice- Projectiles
DCD Design And Manufacturing Ltd
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description

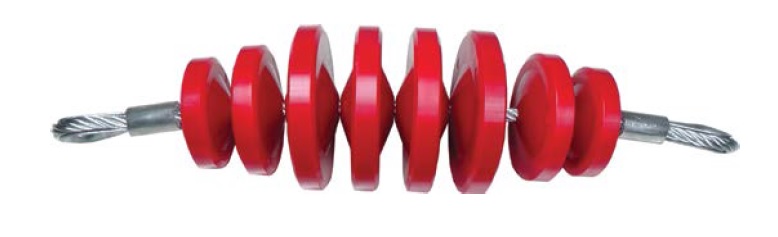

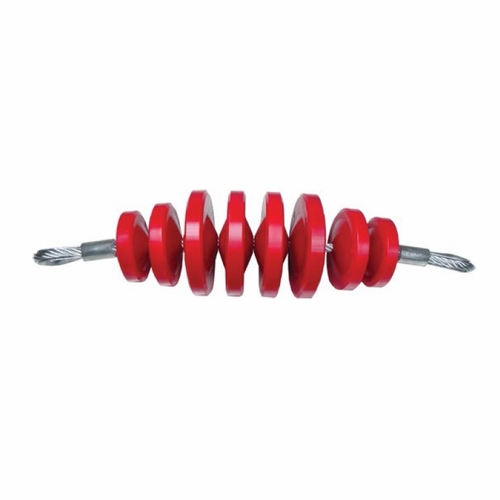

DCD 08500-880 Poly Duct Checker™ 8 inch Dia, Sched.80 Duct
DCD 08500-880 Poly Duct Checker™ 8 inch Dia, Sched.80 Duct
Part # 08500-880 Description Poly Duct Checker™ 8 inch Dia, for Sched.80
Nominal Duct Size 8 inch Schedule 80 Maximum Disc Diameter 6.86 inch Minimum Bend Radius 5-1/2 inch est. Length 22.5 inch 3:1 Safe Working Load 4,800 lb Ultmate Load 14,400 lb Weight 9.30 lb
The Poly Duct Checker™ is designed to ensure the duct bore is clear before installing the cable or other utility. Following initial installation of the ducting, it is often found that debris or partial collapse of the duct will impede installation of the cable. The discs are manufactured from high density polyurethane giving them the toughness to clear the duct without scraping or scratching the bore walls. The discs are spaced with gaps to allow passage through tight bends. The wire rope running through the mandrel is high quality, galvanized wire. Check the inside diameter of the ducting before selecting the product
DCD 08500-880 Poly Duct Checker™ 8 inch Dia, Sched.80 Duct
Part # 08500-880 Description Poly Duct Checker™ 8 inch Dia, for Sched.80
Nominal Duct Size 8 inch Schedule 80 Maximum Disc Diameter 6.86 inch Minimum Bend Radius 5-1/2 inch est. Length 22.5 inch 3:1 Safe Working Load 4,800 lb Ultmate Load 14,400 lb Weight 9.30 lb
The Poly Duct Checker™ is designed to ensure the duct bore is clear before installing the cable or other utility. Following initial installation of the ducting, it is often found that debris or partial collapse of the duct will impede installation of the cable. The discs are manufactured from high density polyurethane giving them the toughness to clear the duct without scraping or scratching the bore walls. The discs are spaced with gaps to allow passage through tight bends. The wire rope running through the mandrel is high quality, galvanized wire. Check the inside diameter of the ducting before selecting the product
