GMP 83662 REEL PWR RS SPOOL ONLY V*
Available*
Item # 31070010
Model # 83662
$1,056.93
financing available. Learn More
* Notes on Availability:
If item is in stock, it will ship same day.
Lead times vary, contact us for more info.
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Generic
Class
Group
Type
Manufacturer
LOT
Reels
Tools
Line Construction- Placing
Reels- Takeup- Drop- Carts
GMP General Machine Products
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description

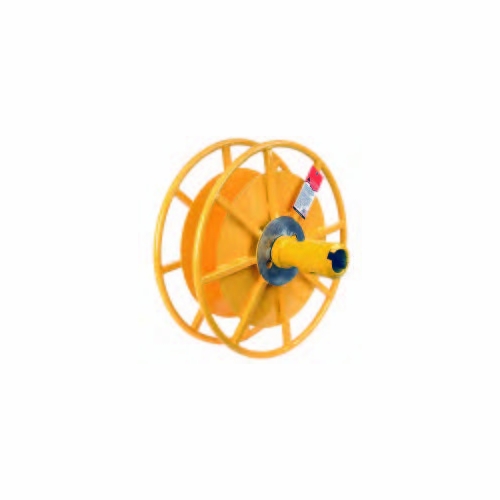

GENERAL MACHINE PRODUCTS 83662 REEL PWR RS SPOOL ONLY V* NEW Picture shows pole spindle and spool. This is the complete assembly.
It is intended for use in pulling aerial cable with a small size wire rope used as a pulling line. Also may be used for paying out the rope with the spool mounted on either the winch drum shaft or the pole spindle.
Perfect for utility pole work , this easy to use reel consists of a spool, driving and pole spindles, and 2 brake assemblies, one mounted on each spindle.
Can be mounted on either a drive or pole spindle. 2 3/4 inch OD and 6 inch hub
Driving spindle mounts on any 2 7/16 inch diameter winch extension shaft with a bayonet or pin type mount, while the pole spindle can support a spool on a pole.
The maximum allowable pull is rated for 2000 lbs
Spool is made with a heavy guage steel reinforced steel with a reinforced exterior facing. Has a durable bright yellow finish.
The length of the driving spool is 18.56 inches and the length of the pole spindle is 13.25 inches.
A durable bright yellow finish provides added safety.
Placing the brake hub on the assembly holds the spool on the spindle. Manually pressing the brake hub against the spool allows you to control free wheeling. Inverting the brake hub engages the spool and drive spindle in the driving position.
Ordering Information:P/N Description Weight
--------------------------------------------------------------------------------
83660 RS Power Reel 6" (Complete Assembly that includes 83662, 83663 and 83664) 126 lbs. (57 kgs) 83662 Spool only 6" 50 lbs. (23 kgs) 83663 Drive spindle and brake only for 6" spool 29 lbs. (13 kgs) 83664 Pole spindle and brake only for 6" spool 47 lbs. (21 kgs)
83669 RS Power Reel 12" (Complete Assembly that includes 83666, 83667 and 83668) 160 lbs. (73 kgs) 83666 Spool only 12" 72 lbs. (33 kgs) 83667 Drive spindle and brake only for 12" spool 33 lbs. (15 kgs) 83668 Pole spindle and brake only for 12" spool 55 lbs. (25 kgs)
83665 Reel brake assembly only 7 lbs. (3 kgs)
Ordering Information:P/N Description Weight
--------------------------------------------------------------------------------
83660 RS Power Reel 6" (Complete Assembly that includes 83662, 83663 and 83664) 126 lbs. (57 kgs) 83662 Spool only 6" 50 lbs. (23 kgs) 83663 Drive spindle and brake only for 6" spool 29 lbs. (13 kgs) 83664 Pole spindle and brake only for 6" spool 47 lbs. (21 kgs)
83669 RS Power Reel 12" (Complete Assembly that includes 83666, 83667 and 83668) 160 lbs. (73 kgs) 83666 Spool only 12" 72 lbs. (33 kgs) 83667 Drive spindle and brake only for 12" spool 33 lbs. (15 kgs) 83668 Pole spindle and brake only for 12" spool 55 lbs. (25 kgs)
83665 Reel brake assembly only 7 lbs. (3 kgs)
