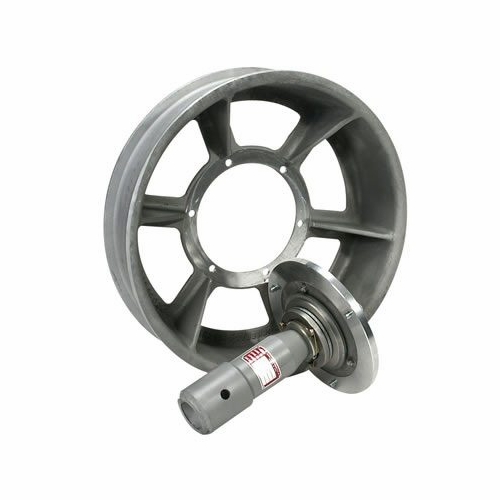

GMP 70391 CAPSTAN FO 25 inch 500 LBS
Available*
Item # 31006075
Model # 70391
$4,194.90
financing available. Learn More
* Notes on Availability:
If item is in stock, it will ship same day.
Lead times vary, contact us for more info.
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Generic
Class
Group
Type
Manufacturer
LOT
Capstans
Tools
Line Construction- Placing
Capstans
GMP General Machine Products
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description

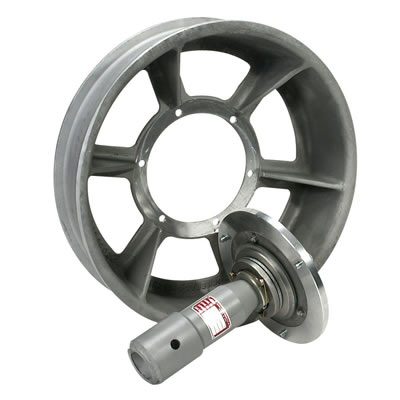

GENERAL MACHINE PRODUCTS 70391 CAPSTAN FO 25" 500 LBS offers you a choice of several lightweight aluminum alloy units that mount on a standard 2- 7/16 in. (62 mm) diameter drive shaft with either a bayonet or a cross pin type of connection.
These capstans can be used as end pullers or mid-assist booster pullers that will allow long, straight-through, splice-free pulls
Offered with a torque limiter between the drive spindle and the inner hub, factory set at standard 600 pounds-force (2669 N-force), but may be calibrated to other torque values, if requested
Also available with a steel shaft and no torque limiter for no-slip applications with a maximum rated load of 1500 lbs. (6672 N)*
Can also be used with Fiber Optic Cable Blowers to place longer lengths of cable without splicing.
P/N Working Dia. Working Width Pull Weight
in. mm in. mm lbs-force Newtons lbs. kgs
--------------------------------------------------------------------------------
15472 25 635 5 127 600 2669 80 34 15479 25 635 5 127 1000 4448 100 45 15470 25 635 5 127 n/a* n/a* 86 39 70351 32 813 7.5 190 600 2669 80 37 70381 32 813 7.5 190 750 3336 80 37 70471 32 813 7.5 190 1000 4448 80 37 70472 32 813 7.5 190 n/a* n/a* 86 39 70473 40 1016 7.5 190 600 2669 135 61 70475 40 1016 7.5 190 1000 4448 135 61 70478 40 1016 7.5 190 n/a* n/a* 100 45 * = Custom settings as required by user
