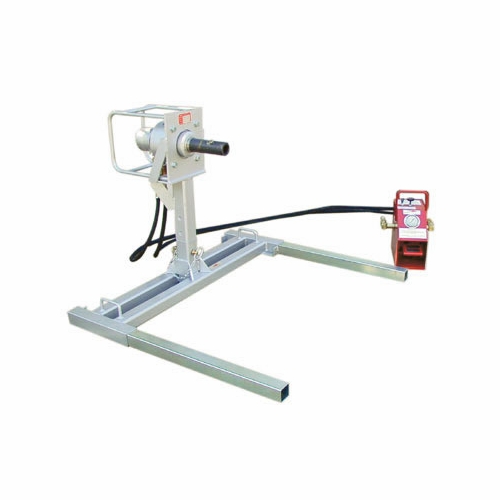

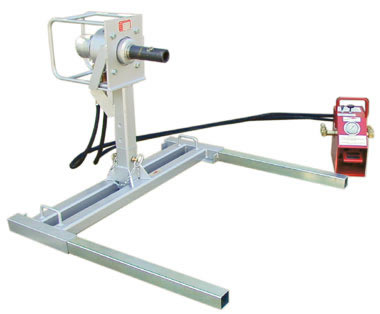

GMP 31116 STAND HYDRAULIC PULLER
Available*
Item # 30956060
Model # 31116
$1,053.00
financing available. Learn More
* Notes on Availability:
If item is in stock, it will ship same day.
Lead times vary, contact us for more info.
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Generic
Class
Group
Type
Manufacturer
LOT
Tuggers
Tools
Line Construction- Placing
Puller- Tuggers- Winches
GMP General Machine Products
Puller Accessories
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description
GENERAL MACHINE PRODUCTS 31116 STAND HYDRAULIC PULLER NEW 31116 Self-Support Frame 93 lbs. (42 kgs)
The Hydraulically Limited Cable Puller is designed to offer exceptional value while providing critical speed control and overload protection. It is simple to set up and easy to operate. Our Cable Puller has all of the features contractors demand, plus GENERAL MACHINE PRODUCTS quality and durability you can rely on . . . year after year.
Standard Features:
Adjustable pull control, up to 1000 lbs. (453 kg) maximum on a 40 in. (101 cm) diameter capstan
Speeds up to 425 ft/min @ 15 gpm flow
Control panel with pressure gauge, pressure adjustment knob and directional foot control valve
1/2 in. (12.7 mm) non-spill quick-disconnect fittings for 2500 psi maximum hydraulic source input
Options:
Three versatile set up options are available: Self-Support, Vehicle Receiver Mount and Socket Mount
Self Support Frame P/N 31116 Vehicle Receiver Mount and support Jack P/N 31219
Portable Hydraulic Power Source that provides 10 gpm @ 2000 psi with 20 feet (6 m) of hydraulic hose.
When you need reliable power to drive our Hydraulically Limited Cable Puller, the Stanley Hydraulic Power Pack has it. This portable power source pumps out 10 gpm @ 2000 psi to give you the muscle you need for the longest pulls. Comes with 20 feet (610 cm) of 1/2 in. (12.7 mm) hydraulic hose. P/N 70487 63 Portable Hydraulic Power Source
Ordering Information: P/N Description Weight
--------------------------------------------------------------------------------
70483 Hydraulically Limited Cable Puller Motor with Self-Support Frame, Foot Control Valve and (2) hydraulic hoses. 293 lbs. (133 kgs) 70484 Hydraulically Limited Cable Puller Motor with Vehicle Receiver Mount, Support Jack, Foot Control Valve and (2) hydraulic hoses. 248 lbs. (113 kgs) 70486 Hydraulically Limited Cable Puller Motor with Foot Control Valve and (2) hydraulic hoses for 2 1/2 in. Square Socket Mount. 200 lbs. (91 kgs) 70487 Stanley Hydraulic Power Unit with (2) hydraulic hoses, 1/2 in. dia. x 20 ft. 298 lbs. (135 kgs) 31115 Hydraulic Motor Assembly 125 lbs. (57 kgs) 31116 Self-Support Frame 93 lbs. (42 kgs) 31117 Foot Control Valve 54 lbs. (25 kgs) 31219 Vehicle Receiver Mount wIth Support Jack (for 2 in. receiver) 47 Lbs. (22 kgs) 31210 Support Jack (replacement for above) 14 lbs. (6 kgs) 30901 Hydraulic hoses (2), 1/2 in. dia. x 20 ft. 21 lbs. (10 kgs)
The Hydraulically Limited Cable Puller is designed to offer exceptional value while providing critical speed control and overload protection. It is simple to set up and easy to operate. Our Cable Puller has all of the features contractors demand, plus GENERAL MACHINE PRODUCTS quality and durability you can rely on . . . year after year.
Standard Features:
Adjustable pull control, up to 1000 lbs. (453 kg) maximum on a 40 in. (101 cm) diameter capstan
Speeds up to 425 ft/min @ 15 gpm flow
Control panel with pressure gauge, pressure adjustment knob and directional foot control valve
1/2 in. (12.7 mm) non-spill quick-disconnect fittings for 2500 psi maximum hydraulic source input
Options:
Three versatile set up options are available: Self-Support, Vehicle Receiver Mount and Socket Mount
Self Support Frame P/N 31116 Vehicle Receiver Mount and support Jack P/N 31219
Portable Hydraulic Power Source that provides 10 gpm @ 2000 psi with 20 feet (6 m) of hydraulic hose.
When you need reliable power to drive our Hydraulically Limited Cable Puller, the Stanley Hydraulic Power Pack has it. This portable power source pumps out 10 gpm @ 2000 psi to give you the muscle you need for the longest pulls. Comes with 20 feet (610 cm) of 1/2 in. (12.7 mm) hydraulic hose. P/N 70487 63 Portable Hydraulic Power Source
Ordering Information: P/N Description Weight
--------------------------------------------------------------------------------
70483 Hydraulically Limited Cable Puller Motor with Self-Support Frame, Foot Control Valve and (2) hydraulic hoses. 293 lbs. (133 kgs) 70484 Hydraulically Limited Cable Puller Motor with Vehicle Receiver Mount, Support Jack, Foot Control Valve and (2) hydraulic hoses. 248 lbs. (113 kgs) 70486 Hydraulically Limited Cable Puller Motor with Foot Control Valve and (2) hydraulic hoses for 2 1/2 in. Square Socket Mount. 200 lbs. (91 kgs) 70487 Stanley Hydraulic Power Unit with (2) hydraulic hoses, 1/2 in. dia. x 20 ft. 298 lbs. (135 kgs) 31115 Hydraulic Motor Assembly 125 lbs. (57 kgs) 31116 Self-Support Frame 93 lbs. (42 kgs) 31117 Foot Control Valve 54 lbs. (25 kgs) 31219 Vehicle Receiver Mount wIth Support Jack (for 2 in. receiver) 47 Lbs. (22 kgs) 31210 Support Jack (replacement for above) 14 lbs. (6 kgs) 30901 Hydraulic hoses (2), 1/2 in. dia. x 20 ft. 21 lbs. (10 kgs)
