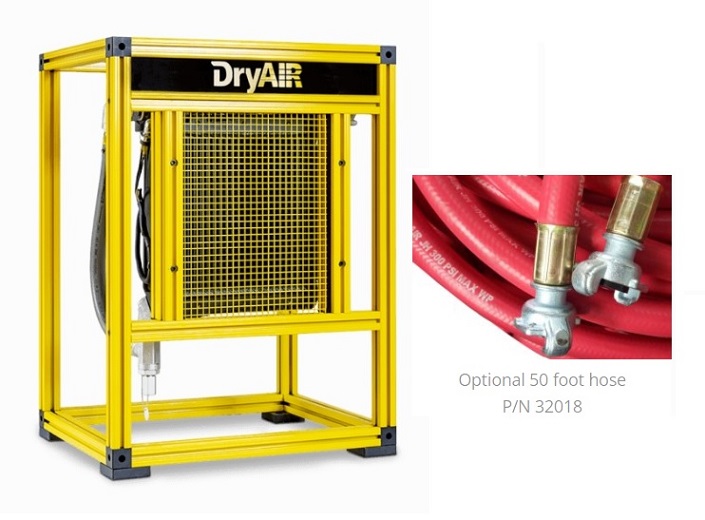

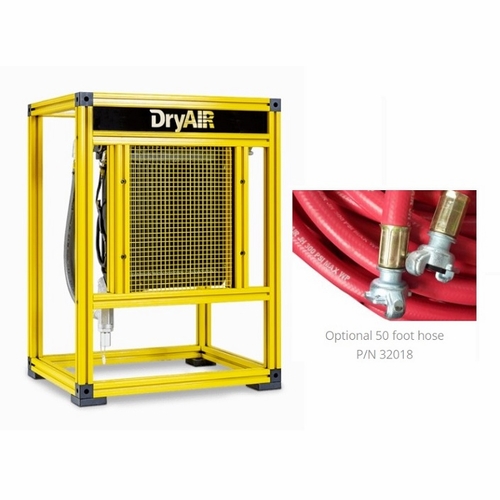

P/N 89060 Compressor Aftercooler 250 CFM

The 250CFM Compressor Aftercooler has been designed to cool compressed air and remove water droplets prior to entering a GMP Cable Blowing Machine.

Features a heavy-duty moisture separator and coalescing filter to trap moisture and condensed oil. Manual drain valves provide the removal of captured fluids Completely self-contained. Packaged in a construction skid with a centrally located bar for single-point lifting and an expanded metal heat exchanger guard

Chicago fittings are provided on the inlet and outlet connections for maximum versatility in the field. Includes a 1-micron coalescing filter with manual drain

DC fan motor is run from the compressor battery and automatically starts when the system is pressurized 13-foot power cord with alligator clips to connect to the compressor starting battery

Portable design for varied applications and mobility

Cools air to within 20� of ambient temperature to optimize moisture removal

Specifications Length: 19 in. (483 mm) Width: 24 in. (610 mm) Height: 32 in. (813 mm) Weight: 70 lbs. (32kg)

Fan Power Requirments 17.5 A, 12 VDC Max Working Pressure 200 psi (13.9 bar) Max Air Compressor Flow Rate 250 cfm (7 M�/Min) Air Hose Connections 2 Lug Chicago CouplingRead More
