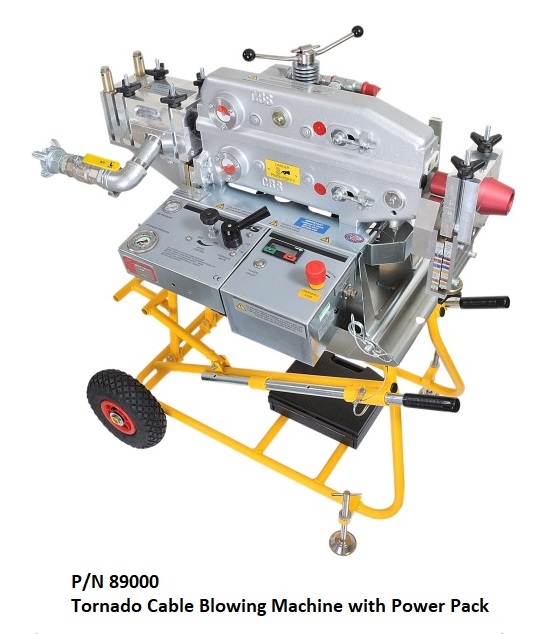

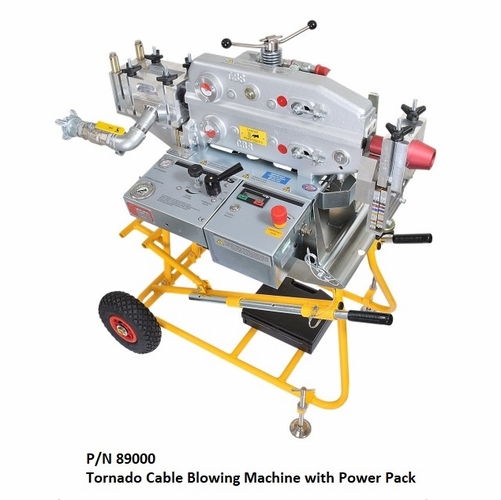

P/N 89000 Tornado Cable Blowing Machine with Power Pack Weight: 356 lbs. (162 kgs)

Includes: Tornado Cable Blowing Machine Hydraulic Power Pack 1 set of duct clamps for duct size of your choice 1 set of duct seals for duct size of your choice 1 set of Cable Collets and Guides for cable size of your choice 1 set of Cable Seals 1 cable seal plug Toolkit Manual

Operating Capacities Pushing Force: 0-220 lbs. (0-100kg) Pushing Speed: 0-300 ft/min (0-90m/min) Cable Size: .24-1.34" (6-34mm) O.D. Sub - Duct Size: 1/2-2" SDR (12-63mm) O.D.

Pneumatic System Air Hose Bore (min): 1 1/4" (32mm) Operating Pressure: 175 psi (12 bar) Flow: The air supply should be filtered, cooled and dry For Ducts with an Inner Diameter of: Minimum Flow Acceptable @175 psi (12 bar) 0 up to 1" (0 up to 25mm) : 150 CFM (4m�/min) 1 up to 1 1/8" (26 up to 30mm) : 185 CFM (5m�/min) 1 1/8 up to 1 3/8" (31 up to 35mm) : 250 CFM (7m�/min) 1 3/8 up to 1 5/8" (36 up to 40mm) : 375 CFM (10m�/min) 1 5/8 up to 1 3/4" (41 up to 44mm) : 450 CFM (12m�/min) 1 3/4 up to 2" (44 up to 51mm): 700 CFM 19m�/min

Designed to be safe, fast and effective, the Tornado Cable Blowing Machine installs fiber optic cable into pre-installed innerduct or direct buried innerduct. A conversion kit allows the Tornado to place either 12.7, 12/10mm or 10/8mm micro ducts into innerduct as well.

Comprised of an aluminum air box and cable pusher, the Tornado uses compressed air to install the cable with or without a missile. In operation, the hydraulically powered, belt drive system controls the fiber optic cable as it is propelled by compressed air through the innerduct. An electronic monitoring system provides read-outs of speed and distance, helps protect cable against damage, and includes an emergency stop button.

The air box and cable pusher are mounted on a lightweight, tubular-steel frame that can be tilted at a 30-degree angle to the manhole, which significantly minimizes any bending of the innerduct and cable. The frame has retractable handles to permit ease of maneuverability, and adjustable rear legs that provide added stability on uneven terrain. This unit comes complete with a gasoline engine powered hydraulic power pack.Read More
