GMP 89000 TORNADO BLOWER W/HYDRAULIC POWER PACK (INCL ONE SET OF DUCT AND CABLE COLLETS)
Available*
Item # 30936385
Model # 89000
$36,650.00
financing available. Learn More
* Notes on Availability:
If item is in stock, it will ship same day.
Lead times vary, contact us for more info.
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Generic
Class
Group
Type
Manufacturer
LOT
Blower Fib
Tools
Line Construction- Placing
Blowers- Cable- Winch Line
GMP General Machine Products
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description
GMP 89000 TORNADO BLOWER W/HYDRAULIC POWER PACK (INCL ONE SET OF DUCT AND CABLE COLLETS) NE
GMP 89000 TORNADO BLOWER W/HYDRAULIC POWER PACK (INCL ONE SET OF DUCT AND CABLE COLLETS) NE

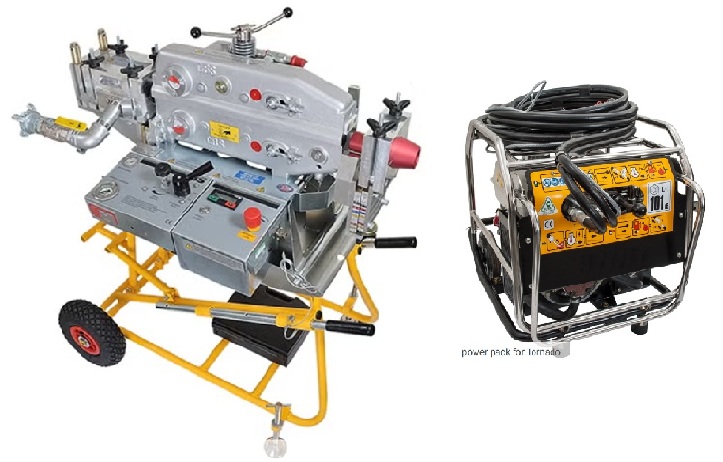

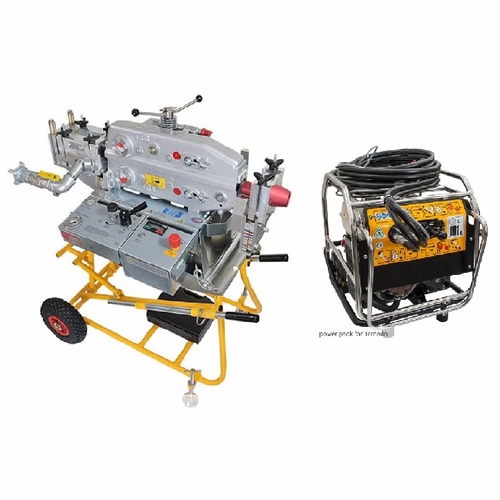

P/N 89000 Tornado Cable Blowing Machine with Hydraulic Power Pack (includes one set of duct and cable collets) Weight 356 lbs. (162 kgs) Includes: Tornado Cable Blowing Machine Hydraulic Power Pack 1 set of duct clamps for duct size of your choice 1 set of duct seals for duct size of your choice 1 set of Cable Collets and Guides for cable size of your choice 1 set of Cable Seals 1 cable seal plug Toolkit Manual
Operating Capacities Pushing Force: 0-220 lbs. (0-100kg) Pushing Speed: 0-300 ft/min (0-90m/min) Cable Size: .24-1.34" (6-34mm) O.D. Sub - Duct Size: 1/2-2" SDR (12-63mm) O.D.
Pneumatic System Air Hose Bore (min): 1 1/4" (32mm) Operating Pressure: 175 psi (12 bar) Flow: The air supply should be filtered, cooled and dry For Ducts with an Inner Diameter of: Minimum Flow Acceptable @175 psi (12 bar) 0 up to 1" (0 up to 25mm) : 150 CFM (4m³/min) 1 up to 1 1/8" (26 up to 30mm) : 185 CFM (5m³/min) 1 1/8 up to 1 3/8" (31 up to 35mm) : 250 CFM (7m³/min) 1 3/8 up to 1 5/8" (36 up to 40mm) : 375 CFM (10m³/min) 1 5/8 up to 1 3/4" (41 up to 44mm) : 450 CFM (12m³/min) 1 3/4 up to 2" (44 up to 51mm): 700 CFM 19m³/min
New expanded capacity to include large (1.34"/34mm), high density or high fiber count (1728/3456) cables.
Designed to be safe, fast and effective, the Tornado Cable Blowing Machine installs fiber optic cable into pre-installed innerduct or direct buried innerduct. A conversion kit allows the Tornado to place either 12.7, 12/10mm or 10/8mm micro ducts into innerduct as well.

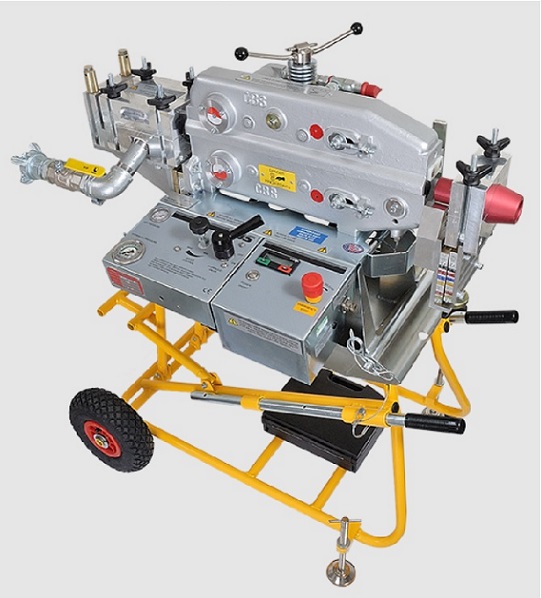

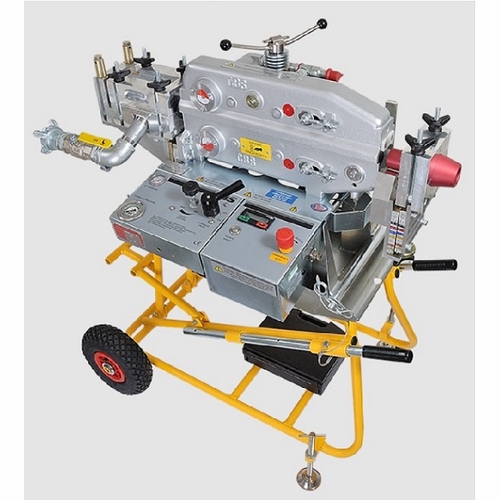

Comprised of an aluminum air box and cable pusher, the Tornado uses compressed air to install the cable with or without a missile. In operation, the hydraulically powered, belt drive system controls the fiber optic cable as it is propelled by compressed air through the innerduct. An electronic monitoring system provides read-outs of speed and distance, helps protect cable against damage, and includes an emergency stop button.
The air box and cable pusher are mounted on a lightweight, tubular-steel frame that can be tilted at a 30-degree angle to the manhole, which significantly minimizes any bending of the innerduct and cable. The frame has retractable handles to permit ease of maneuverability, and adjustable rear legs that provide added stability on uneven terrain. This unit comes complete with a gasoline engine powered hydraulic power pack.
GMP 89000 TORNADO BLOWER W/HYDRAULIC POWER PACK (INCL ONE SET OF DUCT AND CABLE COLLETS) NE
P/N 89000 Tornado Cable Blowing Machine with Hydraulic Power Pack (includes one set of duct and cable collets) Weight 356 lbs. (162 kgs) Includes: Tornado Cable Blowing Machine Hydraulic Power Pack 1 set of duct clamps for duct size of your choice 1 set of duct seals for duct size of your choice 1 set of Cable Collets and Guides for cable size of your choice 1 set of Cable Seals 1 cable seal plug Toolkit Manual
Operating Capacities Pushing Force: 0-220 lbs. (0-100kg) Pushing Speed: 0-300 ft/min (0-90m/min) Cable Size: .24-1.34" (6-34mm) O.D. Sub - Duct Size: 1/2-2" SDR (12-63mm) O.D.
Pneumatic System Air Hose Bore (min): 1 1/4" (32mm) Operating Pressure: 175 psi (12 bar) Flow: The air supply should be filtered, cooled and dry For Ducts with an Inner Diameter of: Minimum Flow Acceptable @175 psi (12 bar) 0 up to 1" (0 up to 25mm) : 150 CFM (4m³/min) 1 up to 1 1/8" (26 up to 30mm) : 185 CFM (5m³/min) 1 1/8 up to 1 3/8" (31 up to 35mm) : 250 CFM (7m³/min) 1 3/8 up to 1 5/8" (36 up to 40mm) : 375 CFM (10m³/min) 1 5/8 up to 1 3/4" (41 up to 44mm) : 450 CFM (12m³/min) 1 3/4 up to 2" (44 up to 51mm): 700 CFM 19m³/min
New expanded capacity to include large (1.34"/34mm), high density or high fiber count (1728/3456) cables.
Designed to be safe, fast and effective, the Tornado Cable Blowing Machine installs fiber optic cable into pre-installed innerduct or direct buried innerduct. A conversion kit allows the Tornado to place either 12.7, 12/10mm or 10/8mm micro ducts into innerduct as well.
Comprised of an aluminum air box and cable pusher, the Tornado uses compressed air to install the cable with or without a missile. In operation, the hydraulically powered, belt drive system controls the fiber optic cable as it is propelled by compressed air through the innerduct. An electronic monitoring system provides read-outs of speed and distance, helps protect cable against damage, and includes an emergency stop button.
The air box and cable pusher are mounted on a lightweight, tubular-steel frame that can be tilted at a 30-degree angle to the manhole, which significantly minimizes any bending of the innerduct and cable. The frame has retractable handles to permit ease of maneuverability, and adjustable rear legs that provide added stability on uneven terrain. This unit comes complete with a gasoline engine powered hydraulic power pack.
