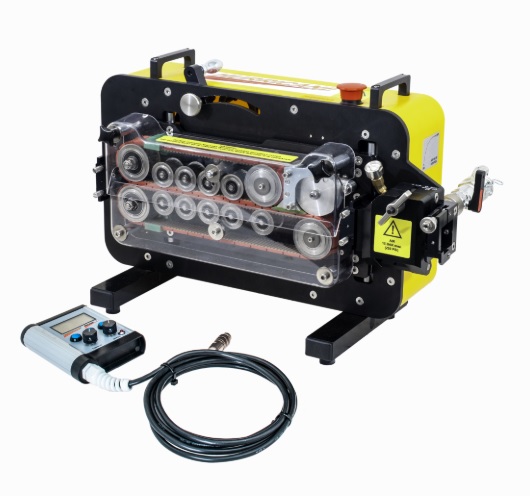

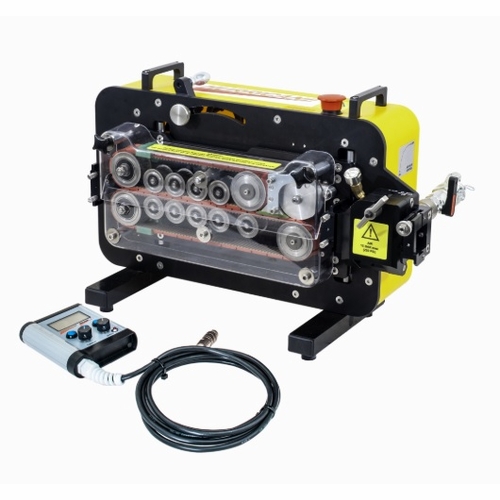

P/N 90000 Hurricane Cable Blowing Machine

The Hurricane has been designed to maximize protection for micro cables with a compliant double drive concept, backed by the latest technology in servo controls to provide precise control of torque and speed. Single-person operation with safe, easy-to-operate ergonomic controls combines low maintenance and high reliability to form the machine�s key features. Cable Size: 2.5-14mm Duct Size: 5-25mm Pushing Force: 90 lbs. Advanced Data Logging

Dual Digital servo motor drive system Digital cable speed and length monitoring Advanced data logging system measures speed, force, distance, GPS location and environmental conditions Auto stop facility when air stone fitted Forward and reverse Integral air valve and pressure gauge Installs an Industry-leading range of cables with one machine Easy cable threading Automatic Cable centralizing Polycarbonate safety guarding Synchronous high grip profiled compliant drive belts Lightweight and compact Vertical design with ergonomic controls for ease of operation Low maintenance Variable torque and speed controls via remote Low noise levels Single person operation Travel case and tool kit

SPECIFICATIONS

OPERATING CAPACITIES Pushing Force: 0-95 lbs. (0-422N) Pushing Speed: 0-279 ft/min (85m/min) Cable Size: .10-.55" (2.5-14mm) O.D.

Sub - Duct Size: .20-.98" SDR (5-25mm) O.D. Micro - 5-25mm OD SDR - .5 inch OD

DIMENSIONS Weight: 53 lbs. (24kg) Weight with case and power supply: 113.5 lbs. (51.5kg) Dimensions (ht x length x width): 13 7/8" x 21 7/8" x 12" 352mm x 556mm x 305mm

POWER REQUIREMENTS 90-264VAC 50/60 Hz

PNEUMATIC SYSTEM Air Hose Bore (min): Operating Pressure: 220 psi (15 bar) Max Flow: The air supply should be filtered, cooled, and dryRead More
