GMP General Machine Products 89950 Blower Cable Jetstream with Power Pack
GMP General Machine Products 89950 Blower Cable Jetstream with
Power Pack
P/N 89950
Jetstream Cable Blower
With Power Pack
Includes:

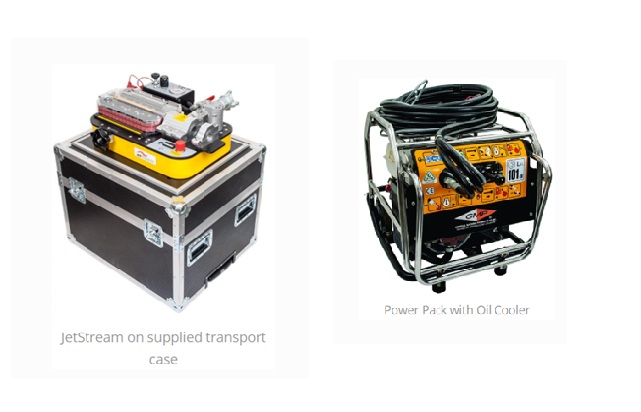

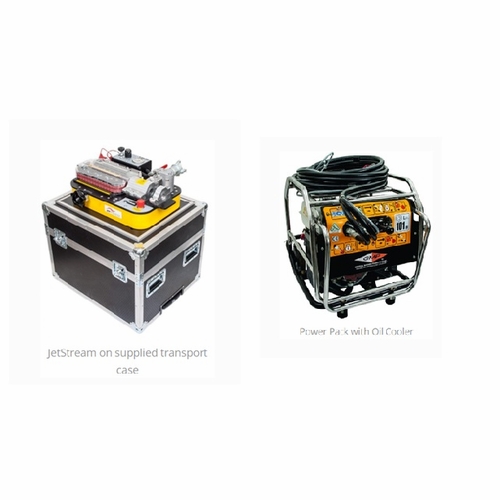

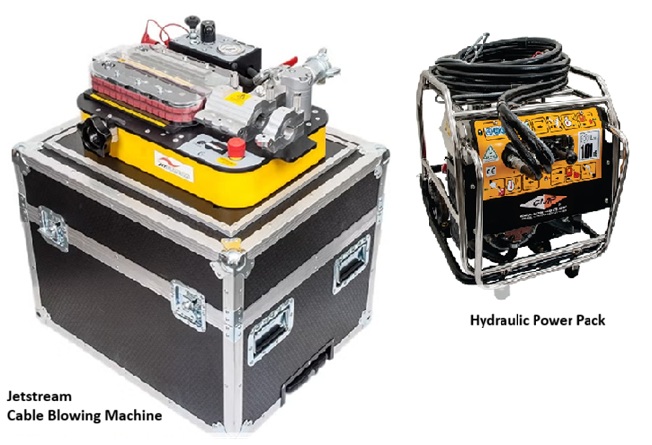

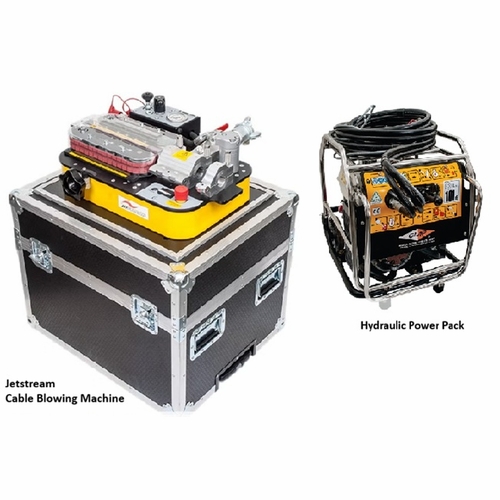

JetStream Cable Blowing Machine
(2) 9V batteries for control
Hydraulic Power Pack
1 set of duct clamps for duct size of your choice
1 set of duct seals for duct size of your choice
1 cable collet assembly for cable size of your choice
1 package of 10 cable seals for cable size of your choice
1 cable seal plug for cable size of your choice
Travel Case for JetStream and accessories
Toolkit
Manual
The JetStream� has been designed to provide maximum cable protection, combined with the performance and reliability of hydraulic drive. The profiled double drive belt system is driven by single 32cc hydraulic motor, powered by a supplied power pack with oil cooler.
The electronic monitoring system provides a read-out of speed and distance, helps protect against duct obstructions and includes an emergency stop. The JetStream is adjustable to suit a wide range of cable diameters .23-.79 in. (6-20mm), and duct diameters of .75-1.50 in. SDR (10-50mm OD). Optional belts suits a range of cable diameters from .16-.63 in. (4-16mm)
Specifications
Cable Diameter: .16-79 in. (4-20 mm)
Duct Size (Outside Dia): .75 - 1.50 in. SDR (10-50 mm OD)
Cable Speed (Adjustable): 0-280 ft/min (0-85m/min)
Air Pressure: 215 psi (15 bar) 450 cfm (12 m3/min)
Power Requirement: Supplied hydraulic power pack
Width: 19 in. (484 mm)
Length: 24.5 in. (620 mm)
Height: 9.2 in. (233 mm)
Machine only Net Weight: 68 lbs. (31kgs)
Total Weight (Machine, Case, and Power Pack): 277 lbs (126kgs)Read More
