HASTINGS 9265AA Wide Jaw Hot Stirrup 6 Sol.-397.5 Al
Available*
Item # 30853245
Model # 9265AA
$51.46
financing available. Learn More
* Notes on Availability:
If item is in stock, it will ship same day.
Lead times vary, contact us for more info.
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description

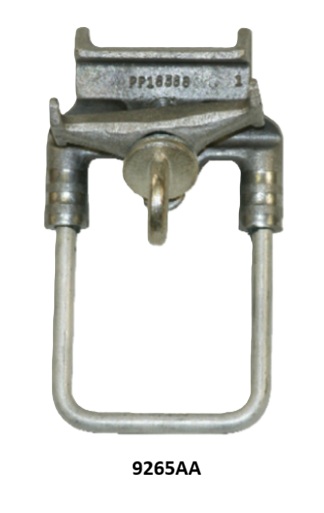

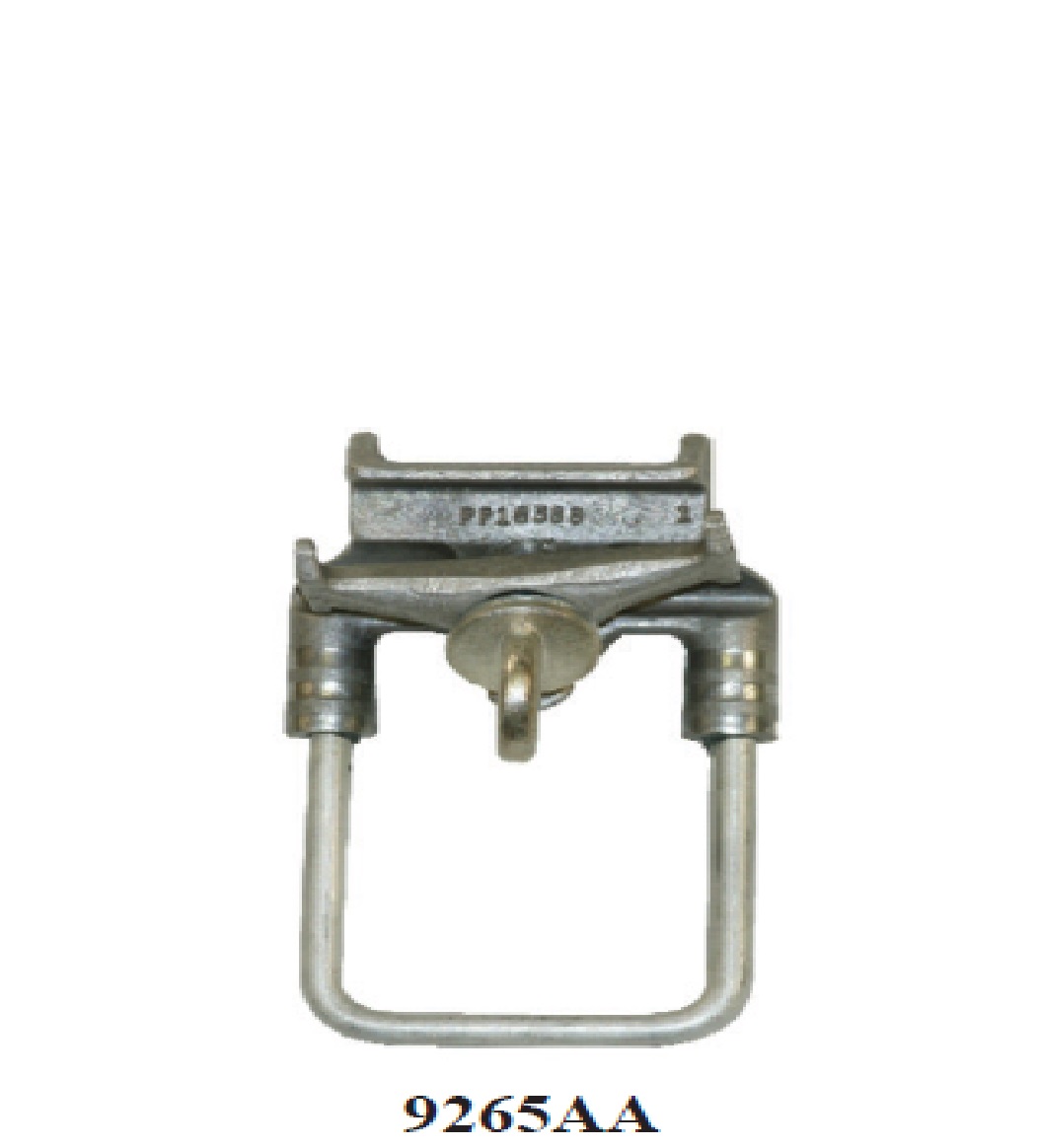

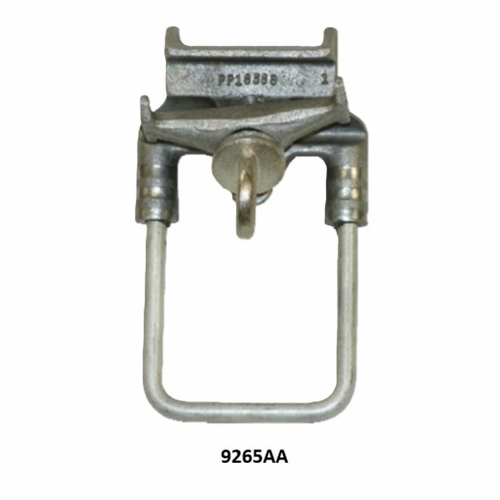

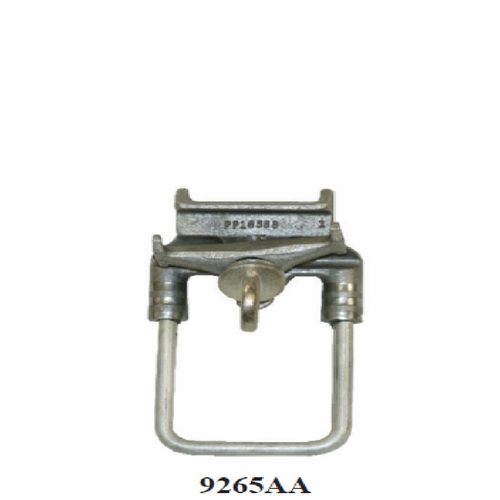

HASTINGS FIBER GLASS PRODUCTS 9265AA Wide Jaw Hot Stirrup 6 Sol.-397.5 Al NEW
WIDE JAW HOT STIRRUPS o Wide jaws make this stirrup well adapted for ACSR and aluminum lines o Easily installed with all shotgun type hot sticks o Inside loop width - 2 1/2" o Maximum installation torque - 200 inch pounds o Stirrups are crimped with a 30 ton hydraulic press
SPECIFICATIONS o Type Connection : AL - AL o Main Line Size - Maximum Armored : 1/0 ACSR o Main Line Size - Maximum Bare : 397,500 o Main Line Size - Minimum Bare : 6 ACSR o Stirrup Bar Diameter: 5/16 AL o Maximum Amp Rating : 340
WEIGHT: .7 LBS
WIDE JAW HOT STIRRUPS o Wide jaws make this stirrup well adapted for ACSR and aluminum lines o Easily installed with all shotgun type hot sticks o Inside loop width - 2 1/2" o Maximum installation torque - 200 inch pounds o Stirrups are crimped with a 30 ton hydraulic press
SPECIFICATIONS o Type Connection : AL - AL o Main Line Size - Maximum Armored : 1/0 ACSR o Main Line Size - Maximum Bare : 397,500 o Main Line Size - Minimum Bare : 6 ACSR o Stirrup Bar Diameter: 5/16 AL o Maximum Amp Rating : 340
WEIGHT: .7 LBS
