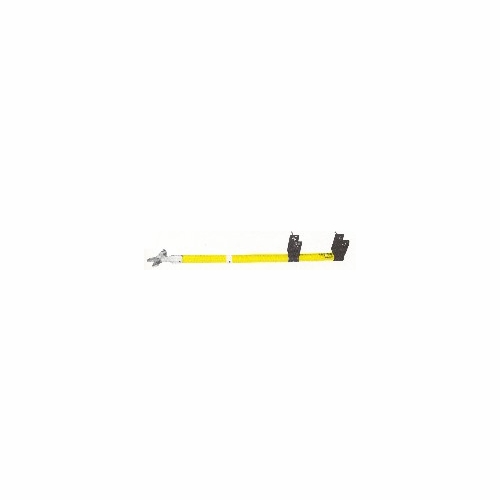

HASTINGS 7676 Dead-End Arm w/Cluster Hd
Available*
Item # 30852865
Model # 7676
$1,293.73
financing available. Learn More
* Notes on Availability:
If item is in stock, it will ship same day.
Lead times vary, contact us for more info.
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description
HASTINGS FIBER GLASS PRODUCTS 7676 Dead-End Arm w/Cluster Hd NEW

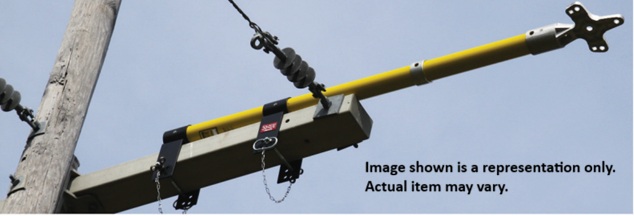

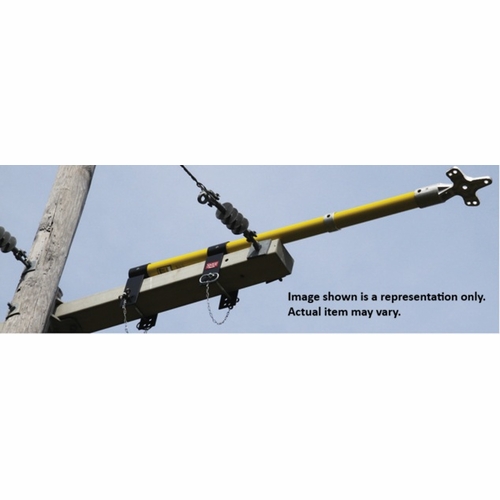

TEMPORARY DEAD END ARM The Temporary Dead End Arm enables a line crew to spread conductors off an existing dead end arm to gain working clearance to replace and terminate new conductors.
FEATURES AND BENEFITS: o Arms are constructed with 3" diameter fiberglass and a foam core to meet most load requirements for temporary dead ends. o Load limit - 500 lbs. per position or 1,000 lbs. total load limit. o Arms have two holes with 18" spacing to accommodate 5/8" diameter hardware bolts for dead ends. Two aluminum sleeves are installed to prevent wear on the fiberglass arm. o Steel mounting brackets have multiple holes for adjustment to fit various arm sizes. Note: adjustment range is described for all catalog numbers shown below. o Arms can be installed on either the top or bottom of existing cross arms. o Two styles are available. Butt swivel eye to dead end a single phase tap line or a 3 way aluminum alloy equipment mounting bracket for mounting a cutout, lighting arrester and a dead end tap line. o When utilizing the butt swivel or the equipment mounting bracket for temporary hanging of a tap line; only slack spans are recommended with loads not to exceed 150 lbs., providing that the Dead End Arm is being held captive on the crossarm.
SPECIFICATIONS: ARM WITH 3 WAY BRACKET o HEIGHT ADJUSTMENT : 4-5/8", 4-7/8", 5-7/8", 6-1/8" o WIDTH ADJUSTMENT : 6-1/8", 7-1/4", 8-3/8"
WEIGHT: 34.5 LBS
TEMPORARY DEAD END ARM The Temporary Dead End Arm enables a line crew to spread conductors off an existing dead end arm to gain working clearance to replace and terminate new conductors.
FEATURES AND BENEFITS: o Arms are constructed with 3" diameter fiberglass and a foam core to meet most load requirements for temporary dead ends. o Load limit - 500 lbs. per position or 1,000 lbs. total load limit. o Arms have two holes with 18" spacing to accommodate 5/8" diameter hardware bolts for dead ends. Two aluminum sleeves are installed to prevent wear on the fiberglass arm. o Steel mounting brackets have multiple holes for adjustment to fit various arm sizes. Note: adjustment range is described for all catalog numbers shown below. o Arms can be installed on either the top or bottom of existing cross arms. o Two styles are available. Butt swivel eye to dead end a single phase tap line or a 3 way aluminum alloy equipment mounting bracket for mounting a cutout, lighting arrester and a dead end tap line. o When utilizing the butt swivel or the equipment mounting bracket for temporary hanging of a tap line; only slack spans are recommended with loads not to exceed 150 lbs., providing that the Dead End Arm is being held captive on the crossarm.
SPECIFICATIONS: ARM WITH 3 WAY BRACKET o HEIGHT ADJUSTMENT : 4-5/8", 4-7/8", 5-7/8", 6-1/8" o WIDTH ADJUSTMENT : 6-1/8", 7-1/4", 8-3/8"
WEIGHT: 34.5 LBS
