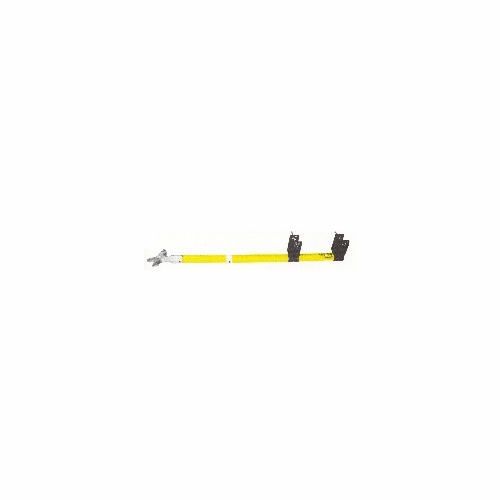

Hastings 7674 Dead End Arm W/Cluster

Hastings Fiber Glass Products 7674 Dead End Arm W/Cluster New

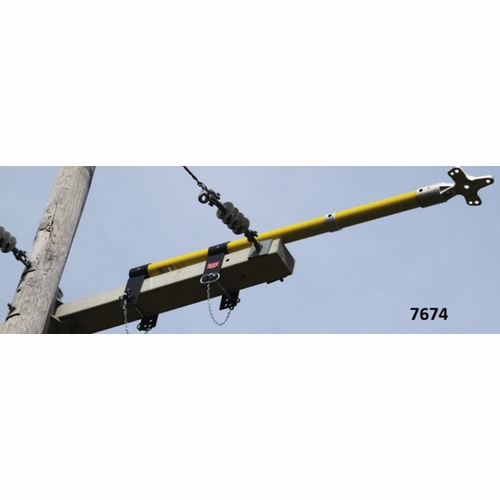

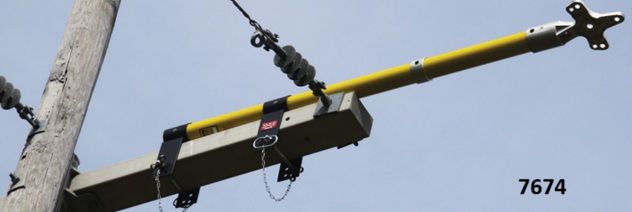

Temporary Dead End Arm The Temporary Dead End Arm Enables A Line Crew To Spread Conductors Off An Existing Dead End Arm To Gain Working Clearance To Replace And Terminate New Conductors.

Features And Benefits: O Arms Are Constructed With 3" Diameter Fiberglass And A Foam Core To Meet Most Load Requirements For Temporary Dead Ends. O Load Limit - 500 Lbs. Per Position Or 1,000 Lbs. Total Load Limit. O Arms Have Two Holes With 18" Spacing To Accommodate 5/8" Diameter Hardware Bolts For Dead Ends. Two Aluminum Sleeves Are Installed To Prevent Wear On The Fiberglass Arm. O Steel Mounting Brackets Have Multiple Holes For Adjustment To Fit Various Arm Sizes. Note: Adjustment Range Is Described For All Catalog Numbers Shown Below. O Arms Can Be Installed On Either The Top Or Bottom Of Existing Cross Arms. O Two Styles Are Available. Butt Swivel Eye To Dead End A Single Phase Tap Line Or A 3 Way Aluminum Alloy Equipment Mounting Bracket For Mounting A Cutout, Lighting Arrester And A Dead End Tap Line. O When Utilizing The Butt Swivel Or The Equipment Mounting Bracket For Temporary Hanging Of A Tap Line; Only Slack Spans Are Recommended With Loads Not To Exceed 150 Lbs., Providing That The Dead End Arm Is Being Held Captive On The Crossarm.

Specifications: Arm With 3 Way Bracket O Height Adjustment : 4-5/8", 4-7/8", 5-7/8", 6-1/8" O Width Adjustment : 3-7/8", 5", 6-1/8"

Weight: 34 LbsRead More
