HASTINGS 6874 25 KV Insulated Jumper Cable (Price Per Foot)
Available*
Item # 30852455
Model # 6874
$26.37
financing available. Learn More
* Notes on Availability:
If item is in stock, it will ship same day.
Lead times vary, contact us for more info.

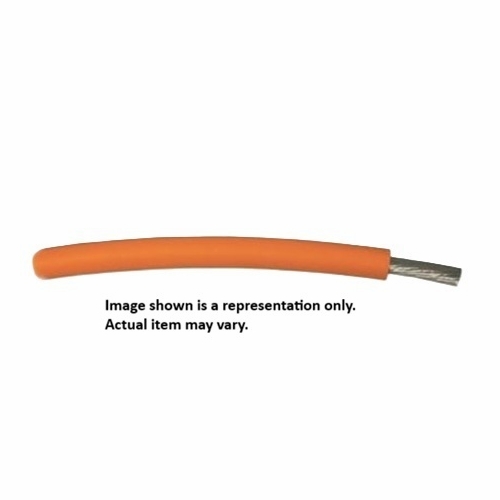

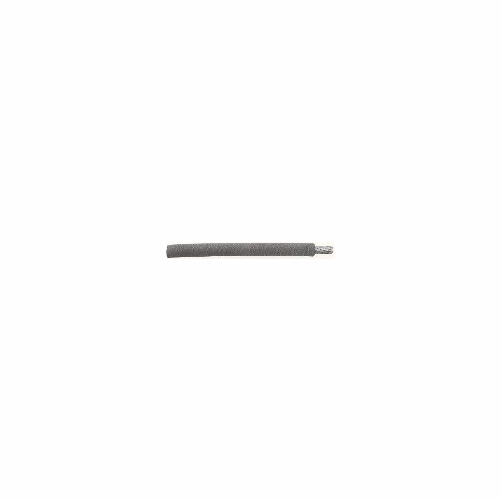

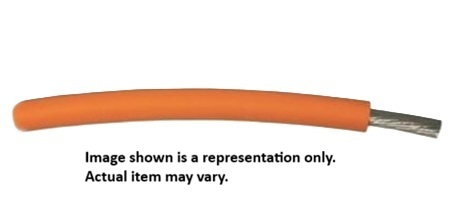

(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description
HASTINGS FIBER GLASS PRODUCTS 6874 Jumper Cable (Price Per Foot) AWG #2/0 Stranding 25KV NEW
INSULATED JUMPER CABLE - 15KV, 25KV, 35KV o 15KV Jumper cable available in four sizes o Conductive strand shield improves service life, dielectric strength and eliminates internal corona o Insulation is mold cured from ethylene propylene rubber (EPR) and resists abrasion, heat, moisture, and ultra violet rays o Flexible at low temperatures o Copper stranding is extra flexible and alloy coated o All cable is electrically tested per ASTM D470 and the insulation meets or exceeds ICEA-NEMA Standard S-68-516 and ASTM D752.
NOTE: These cables are not intended for use as permanently installed or portable power cable. To avoid possible cable damage and high leakage currents, these cables must be positioned away from grounded surfaces or energized conductors other than those to which they are connected.
SPECIFICATIONS: o SIZE AWG : # 2/0 o STRANDING : 427 o RATING AMPS : 300 o WEIGHT PER 1,000 FT : 903 LBS
INSULATED JUMPER CABLE - 15KV, 25KV, 35KV o 15KV Jumper cable available in four sizes o Conductive strand shield improves service life, dielectric strength and eliminates internal corona o Insulation is mold cured from ethylene propylene rubber (EPR) and resists abrasion, heat, moisture, and ultra violet rays o Flexible at low temperatures o Copper stranding is extra flexible and alloy coated o All cable is electrically tested per ASTM D470 and the insulation meets or exceeds ICEA-NEMA Standard S-68-516 and ASTM D752.
NOTE: These cables are not intended for use as permanently installed or portable power cable. To avoid possible cable damage and high leakage currents, these cables must be positioned away from grounded surfaces or energized conductors other than those to which they are connected.
SPECIFICATIONS: o SIZE AWG : # 2/0 o STRANDING : 427 o RATING AMPS : 300 o WEIGHT PER 1,000 FT : 903 LBS
