HASTINGS 6752-2 14 foot Insulated/Protected Jumper 1/0 15 KV
Available*
Item # 30852025
Model # 6752-2
$1,027.47
financing available. Learn More
* Notes on Availability:
If item is in stock, it will ship same day.
Lead times vary, contact us for more info.
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description

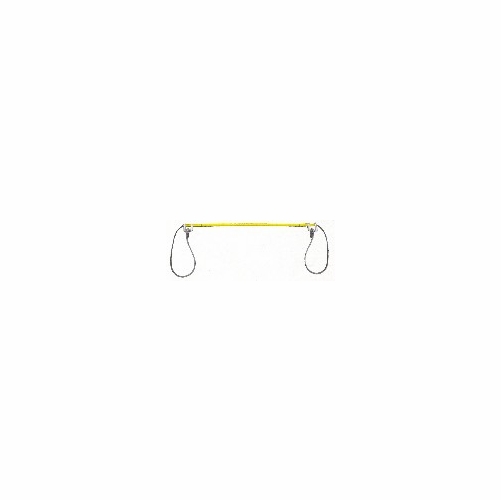

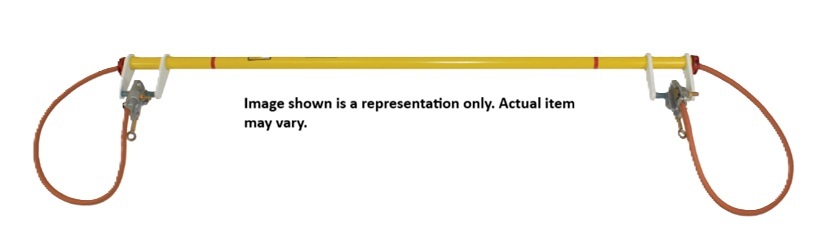

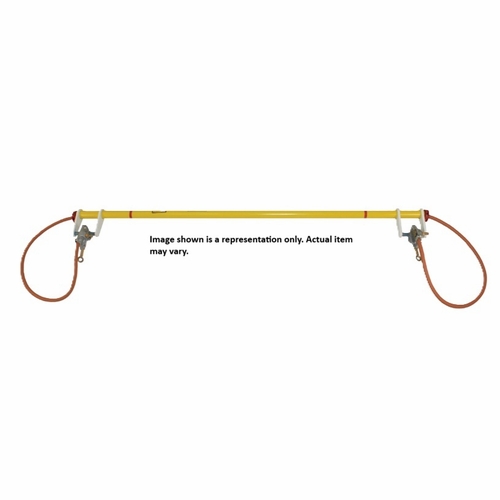

HASTINGS FIBER GLASS PRODUCTS 6752-2 14' Insulated/Protected Jumper 1/0 15 KV NEW
INSULATED / PROTECTED JUMPERS 15-69KV* o 15KV rated cable is encapsulated in a 1-3/4" O.D. fiberglass tube. o The fiberglass tube gives added insulation and mechanical protection for jumpering switch gear, reclosers and cutting in double deadends. o Cable can be removed for inspection and replacement o Fiberglass hanger brackets allow clamps to be secured for installation and removal of jumper o Can be installed on wire sizes from 8 solid .120 diameter up to and including 1,033 MCM 1.25 diameter o *Ratings - 69KV rating applies to area on fiberglass tube between red bands which are 12" from ends of the tube. 15KV ratings apply outside the red bands. Ratings apply for accidental brush contact only
SPECIFICATIONS: o LENGTH OF CABLE: 14 ft o TUBE : 6 FT o SIZE AWG : 1/0
WEIGHT : 27 LBS
INSULATED / PROTECTED JUMPERS 15-69KV* o 15KV rated cable is encapsulated in a 1-3/4" O.D. fiberglass tube. o The fiberglass tube gives added insulation and mechanical protection for jumpering switch gear, reclosers and cutting in double deadends. o Cable can be removed for inspection and replacement o Fiberglass hanger brackets allow clamps to be secured for installation and removal of jumper o Can be installed on wire sizes from 8 solid .120 diameter up to and including 1,033 MCM 1.25 diameter o *Ratings - 69KV rating applies to area on fiberglass tube between red bands which are 12" from ends of the tube. 15KV ratings apply outside the red bands. Ratings apply for accidental brush contact only
SPECIFICATIONS: o LENGTH OF CABLE: 14 ft o TUBE : 6 FT o SIZE AWG : 1/0
WEIGHT : 27 LBS
