HASTINGS 6013 46 KV Line Guard With 4 Ft. Stick
Available*
Item # 30851515
Model # 6013
$515.74
financing available. Learn More
* Notes on Availability:
If item is in stock, it will ship same day.
Lead times vary, contact us for more info.
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description

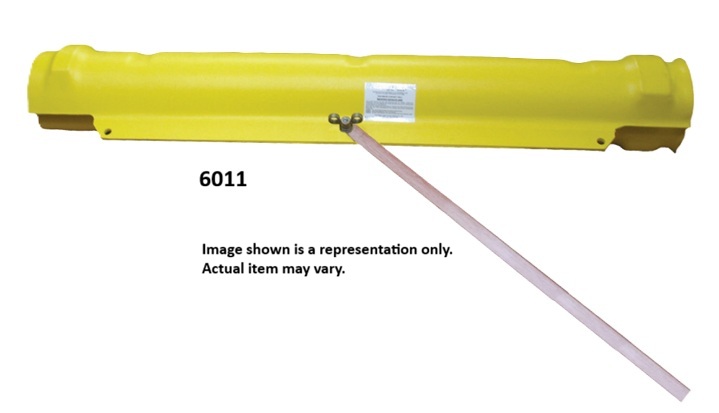

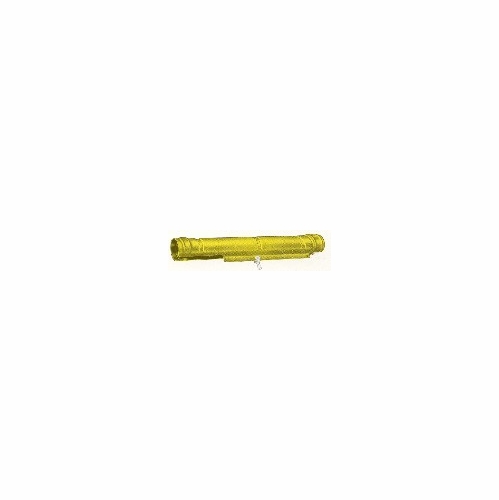

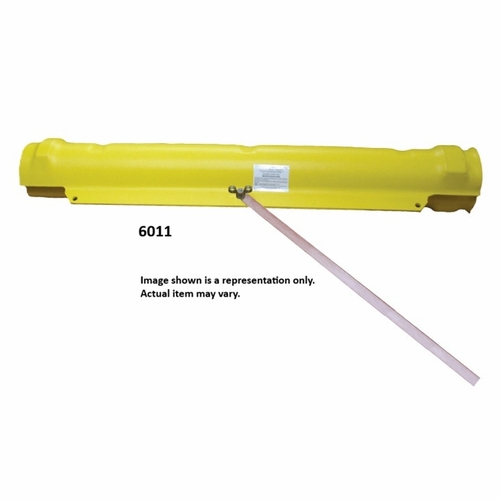

HASTINGS FIBER GLASS PRODUCTS 6013 Line Guard 46 KV With 4 Ft. Stick NEW
LINE GUARDS AND INSULATOR HOODS o 35 KV, 46 KV, AND 69 KV o Designed for easy installation and removal o Line guards are 4' 6" long o Installation - Guards and hoods are equipped with eye and can be installed with all shotgun sticks o Guards with 4' fiberglass installing stick are also an option o Eyes are adjustable to allow installation of guards at angles o Interlocking male and female ends allow as many guards as needed to be installed on conductors o Wire Range - Guards are designed to accept all sizes up to and including 1,272 MCM 45/7 ACSR o Brush contact only
SPECIFICATIONS : o DESCRIPTION : 46 KV LINE GUARD - WITH 4 FT INSTALLING STICK o RATING COVERED PHASE TO COVERED PHASE : 48.3 KV o RATING COVERED PHASE TO GROUND : 27 KV
WEIGHT : 9.5 LBS
LINE GUARDS AND INSULATOR HOODS o 35 KV, 46 KV, AND 69 KV o Designed for easy installation and removal o Line guards are 4' 6" long o Installation - Guards and hoods are equipped with eye and can be installed with all shotgun sticks o Guards with 4' fiberglass installing stick are also an option o Eyes are adjustable to allow installation of guards at angles o Interlocking male and female ends allow as many guards as needed to be installed on conductors o Wire Range - Guards are designed to accept all sizes up to and including 1,272 MCM 45/7 ACSR o Brush contact only
SPECIFICATIONS : o DESCRIPTION : 46 KV LINE GUARD - WITH 4 FT INSTALLING STICK o RATING COVERED PHASE TO COVERED PHASE : 48.3 KV o RATING COVERED PHASE TO GROUND : 27 KV
WEIGHT : 9.5 LBS
