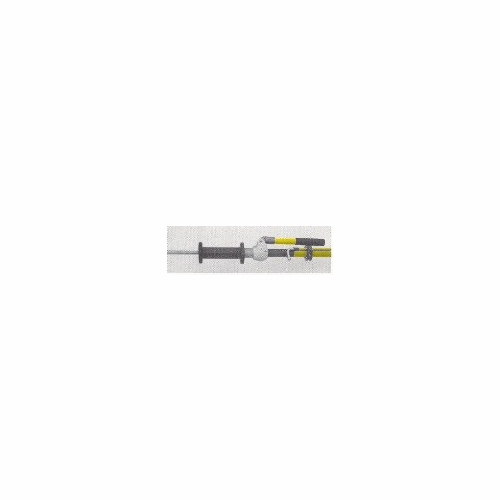

HASTINGS 5326-1 4 foot Elbow Puller With Torgue Handle
Available*
Item # 30850635
Model # 5326-1
$668.25
financing available. Learn More
* Notes on Availability:
If item is in stock, it will ship same day.
Lead times vary, contact us for more info.
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description
HASTINGS FIBER GLASS PRODUCTS 5326-1 Elbow Puller 4 ft With Torque Handle NEW
IMPACT STYLE ELBOW PULLER with Torque Handle
o Designed as a tool for safely removing and installing elbows on transformers and switch gear
o Positive latch, spring loaded fiberglass OPERATING ROD locks gripper securely to elbow by rotating the tool to the right. --This positive latch feature allows operator to position elbow in either direction once elbow is pulled without loosening its grip. --After elbow is positioned in its proper place, gripper is released by pulling operating rod towards the operator and rotating to the left.
o SLIDE HANDLE is used to impact elbow away from bushing. --The slide weight can also be utilized to "seat" the elbow in its normal position by impacting the slide handle towards the elbow. --The slide handle weighs 5 pounds and is plastisol coated. --Painted grit is used on hand area to provide positive grip.
o The elbow puller can be ordered with a TORQUE HANDLE feature factory installed. --This feature allows the operator an opportunity to break the seal between the elbow and bushing insert before attempting to remove the elbow. --Handle is spring loaded for storage purposes.
o Grippers are not included.

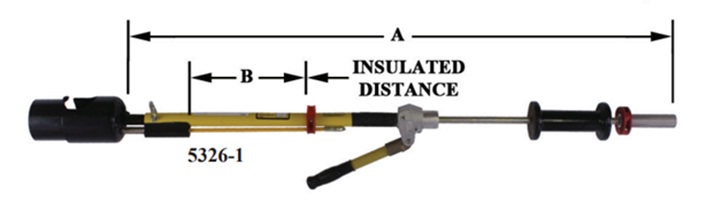

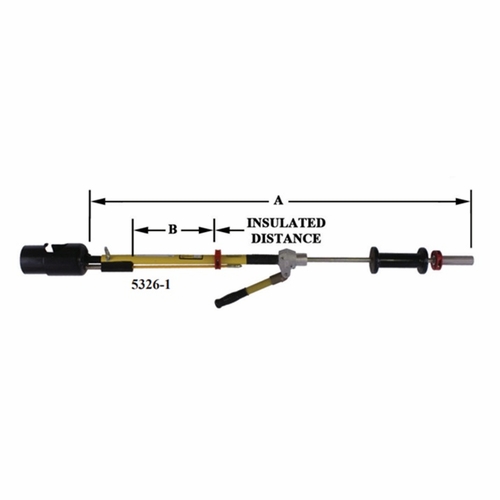

SPECIFICATIONS: 4' ELBOW PULLER With Torque Handle o DIMENSIONAL REFERENCE A* : 48-1/2 " o DIMENSIONAL REFERENCE B : 11-1/2" o CASE : 01-016
NOTE: RUBBER GLOVES are required when using CATALOG NUMBER 5326 OR 5326-1 on ENERGIZED CIRCUITS *DIMENSION A is shown without GRIPPER. Overall length w/GRIPPER varies according to GRIPPER when attached.
WEIGHT : 11 LBS
