HASTINGS 5051 Temporary Cross Arm
Available*
Item # 30850465
Model # 5051
$1,468.67
financing available. Learn More
* Notes on Availability:
If item is in stock, it will ship same day.
Lead times vary, contact us for more info.
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description

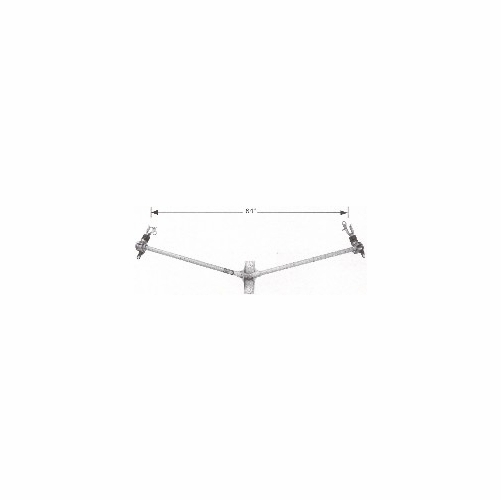

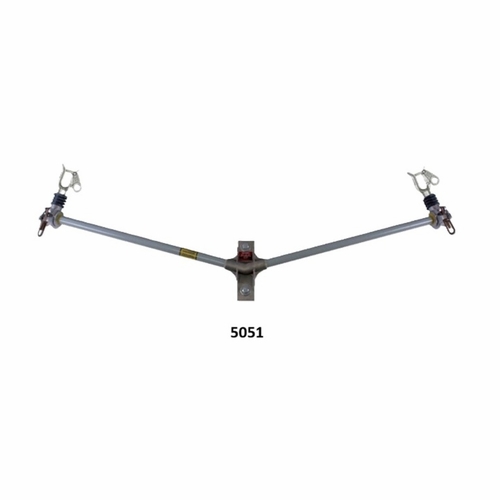

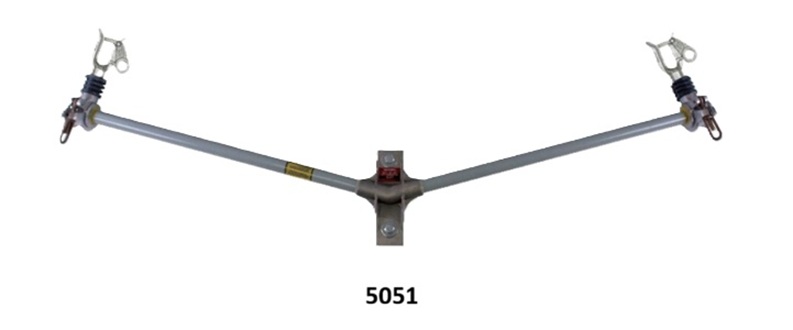

HASTINGS FIBER GLASS PRODUCTS 5051 Temporary Cross Arm NEW
TEMPORARY CROSS ARM o The Temporary Cross Arm is an excellent tool for changing cross arms. Solid fiberglass arms for maximum strength. Rated for 34.5KV phase to phase. o Two piece assembly makes installation easy and fast o The mounting base includes a ratchet and strap assembly for lightweight and safety. U-Shape design fits over pole top pin. o Fiberglass arm includes two standard conductor holders A10002 with insulators and will accept conductors up to 1 1/16" O.D. Conductor latches are hot stick operable. o Also available A10039 Large Conductor Holder - 2 5/8" opening o Captive bolts and washers on arm assembly enable the arm to be mounted to the base. No tools are required. o Load limit is 150 pounds per side
SPECIFICATIONS: o 72" WIDE, TWO A10002 STANDARD CONDUCTOR HOLDERS, COMPLETE WITH MOUNTING BASE
WEIGHT : 27 LBS
TEMPORARY CROSS ARM o The Temporary Cross Arm is an excellent tool for changing cross arms. Solid fiberglass arms for maximum strength. Rated for 34.5KV phase to phase. o Two piece assembly makes installation easy and fast o The mounting base includes a ratchet and strap assembly for lightweight and safety. U-Shape design fits over pole top pin. o Fiberglass arm includes two standard conductor holders A10002 with insulators and will accept conductors up to 1 1/16" O.D. Conductor latches are hot stick operable. o Also available A10039 Large Conductor Holder - 2 5/8" opening o Captive bolts and washers on arm assembly enable the arm to be mounted to the base. No tools are required. o Load limit is 150 pounds per side
SPECIFICATIONS: o 72" WIDE, TWO A10002 STANDARD CONDUCTOR HOLDERS, COMPLETE WITH MOUNTING BASE
WEIGHT : 27 LBS
