HASTINGS 3464 5/35KV Tensioning Tool
Available*
Item # 30848875
Model # 3464
$1,140.18
financing available. Learn More
* Notes on Availability:
If item is in stock, it will ship same day.
Lead times vary, contact us for more info.
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description

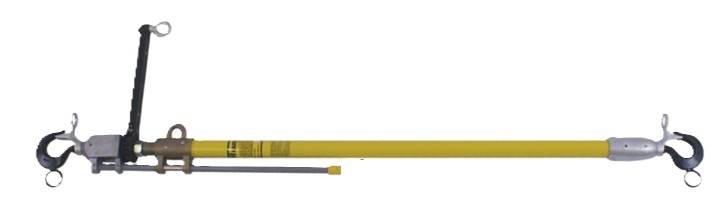

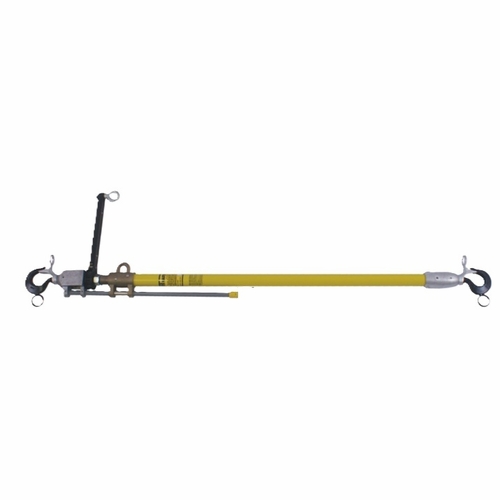

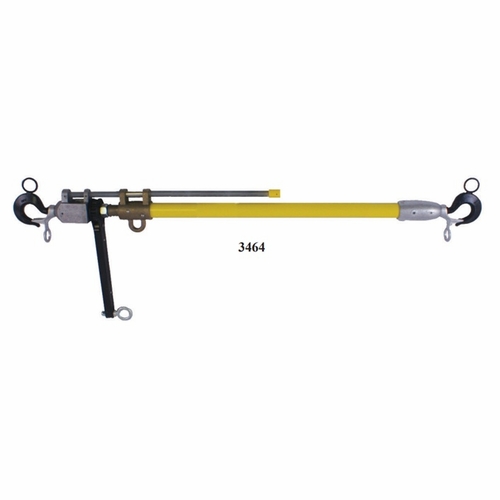

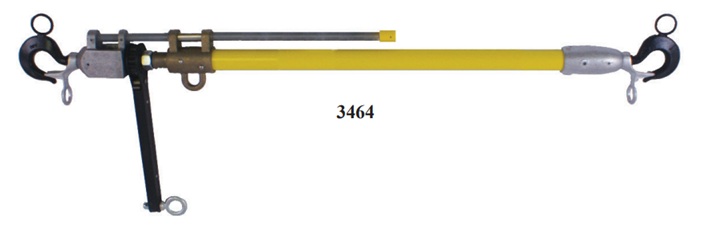

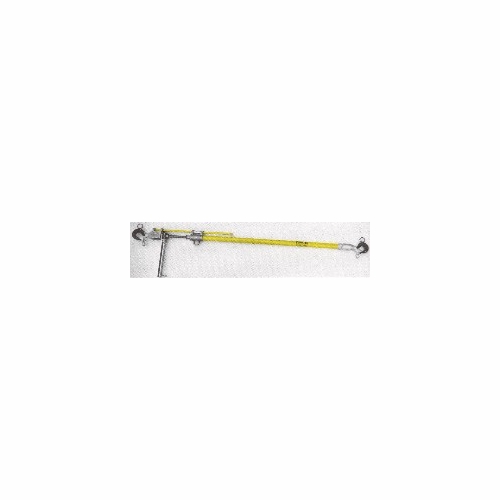

HASTINGS FIBER GLASS PRODUCTS 3464 Tensioning Tool 5/35KV NEW
CONDUCTOR TENSION TOOL o The conductor tension tool is excellent for both hot stick and rubber gloving applications o Used for temporarily isolating sections of lines, changing out dead end insulators and line splicing o Load limit 4,000 lbs. o Installed and operated using hot sticks o Two models available, 5KV to 35KV OR 46KV to 69KV o Conductor hooks have hot stick eyes and hot stick operable safety latches. Hooks are stationary. o Metal components are heat treated aluminum alloy or bronze alloy
SPECIFICATIONS: o MODEL TENSIONING TOOL : 5/35 KV o WORKING RANGE : 57 in to 69 inches o MAXIMUM TAKE UP : 12 inches o INSULATION MIN / MAX : 26 in to 36 inches o LENGTH STORED : 59 inches o LENGTH EXTENDED : 71 inches
WEIGHT : 12 LBS
CONDUCTOR TENSION TOOL o The conductor tension tool is excellent for both hot stick and rubber gloving applications o Used for temporarily isolating sections of lines, changing out dead end insulators and line splicing o Load limit 4,000 lbs. o Installed and operated using hot sticks o Two models available, 5KV to 35KV OR 46KV to 69KV o Conductor hooks have hot stick eyes and hot stick operable safety latches. Hooks are stationary. o Metal components are heat treated aluminum alloy or bronze alloy
SPECIFICATIONS: o MODEL TENSIONING TOOL : 5/35 KV o WORKING RANGE : 57 in to 69 inches o MAXIMUM TAKE UP : 12 inches o INSULATION MIN / MAX : 26 in to 36 inches o LENGTH STORED : 59 inches o LENGTH EXTENDED : 71 inches
WEIGHT : 12 LBS
