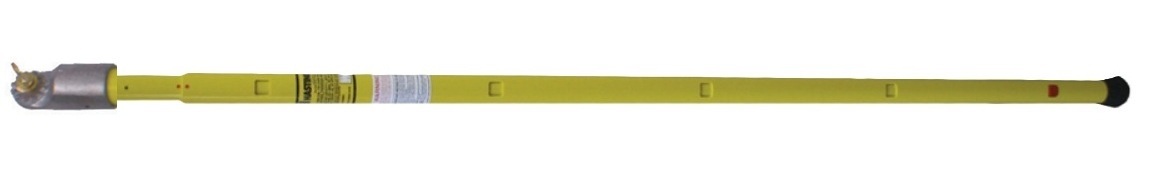

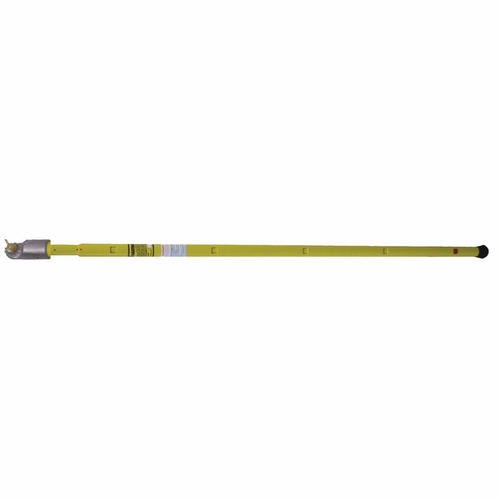

Hastings 3123 Substation Stick 12 Foot 4 Inch To 20 Foot

Hastings Fiber Glass Products 3123 Substation Stick 12'4" To 20' New

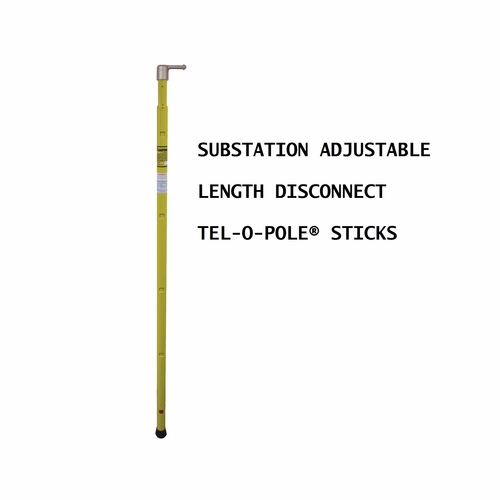

Substation Adjustable Length Disconnect Tel-O-Pole� Sticks Designed For Use In Close Confines Of Substations Features And Benefits: O Round Stick With Hastings Square Button Design Prevents Button Shearing Under Heavy Load O Eliminates Problem Of Threading Long Sticks Through Substation Structure O Eliminates Multiple Length Stick Requirements, Sticks Are Adjustable To Length In One Foot Increments O Top Section Is Conventional 1-1/4" Diameter Hot Stick. Can Be Removed For Use As Single One Piece Hot Stick. Base Section Is 1-1/2" Diameter. O Extended Length Is Shown At Each Lock Position For Reference O Safe Guard Design, Top Section Must Extend Beyond Base Before Lock Will Engage, Giving Full Protection Of Fire Retardant Unicellular Core (See Information On Collapsed And Minimum Usable Length) O Available With Standard Disconnect Head, Switch Head, Or Universal Head O Tested Per Osha And Astm F-711.

Specifications: O Universal Head O Extended Length : 20 Ft O Minimum Usable Length : 14 Ft O Collapsed Length : 12 Ft 4 In.

Weight : 9.5 LbsRead More
