HASTINGS 3121 Substation Stick 12 foot 4 inch to 20 foot
Available*
Item # 30848805
Model # 3121
$725.27
financing available. Learn More
* Notes on Availability:
If item is in stock, it will ship same day.
Lead times vary, contact us for more info.
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description

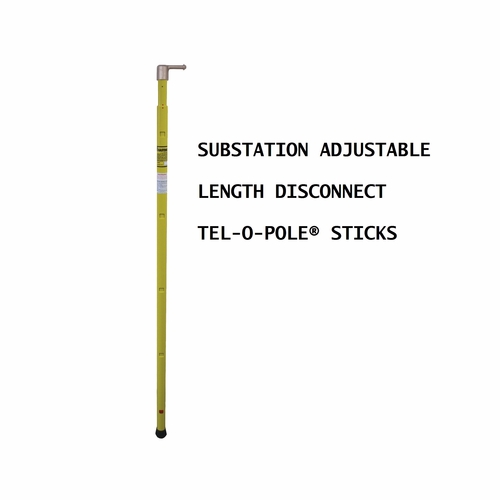

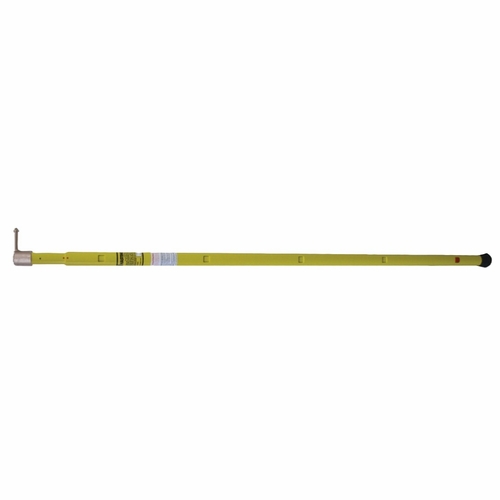

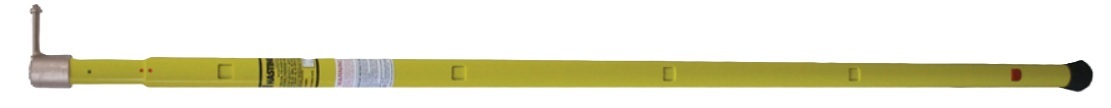

HASTINGS FIBER GLASS PRODUCTS 3121 Substation Stick 12'4" to 20' NEW
SUBSTATION ADJUSTABLE LENGTH DISCONNECT TEL-O-POLEŽ STICKS Designed for use in close confines of substations FEATURES AND BENEFITS: o Round Stick with HASTINGS Square Button design prevents button shearing under heavy load o Eliminates problem of threading long sticks through substation structure o Eliminates multiple length stick requirements, sticks are adjustable to length in one foot increments o Top section is conventional 1-1/4" diameter Hot Stick. Can be removed for use as single one piece Hot Stick. Base section is 1-1/2" diameter. o Extended length is shown at each lock position for reference o Safe guard design, top section must extend beyond base before lock will engage, giving full protection of fire retardant unicellular core (See information on collapsed and minimum usable length) o Available with standard disconnect head, switch head, or universal head o Tested per OSHA and ASTM F-711.
SPECIFICATIONS: o DISCONNECT HEAD o Extended Length : 20 Ft o Minimum Usable Length : 14 Ft o Collapsed Length : 12 ft 4 in.
WEIGHT : 9.5 lbs
SUBSTATION ADJUSTABLE LENGTH DISCONNECT TEL-O-POLEŽ STICKS Designed for use in close confines of substations FEATURES AND BENEFITS: o Round Stick with HASTINGS Square Button design prevents button shearing under heavy load o Eliminates problem of threading long sticks through substation structure o Eliminates multiple length stick requirements, sticks are adjustable to length in one foot increments o Top section is conventional 1-1/4" diameter Hot Stick. Can be removed for use as single one piece Hot Stick. Base section is 1-1/2" diameter. o Extended length is shown at each lock position for reference o Safe guard design, top section must extend beyond base before lock will engage, giving full protection of fire retardant unicellular core (See information on collapsed and minimum usable length) o Available with standard disconnect head, switch head, or universal head o Tested per OSHA and ASTM F-711.
SPECIFICATIONS: o DISCONNECT HEAD o Extended Length : 20 Ft o Minimum Usable Length : 14 Ft o Collapsed Length : 12 ft 4 in.
WEIGHT : 9.5 lbs
