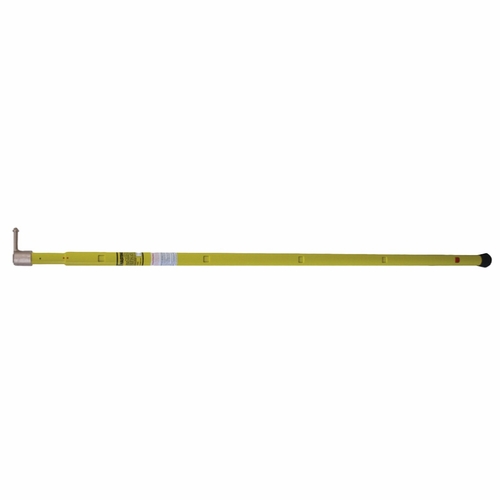

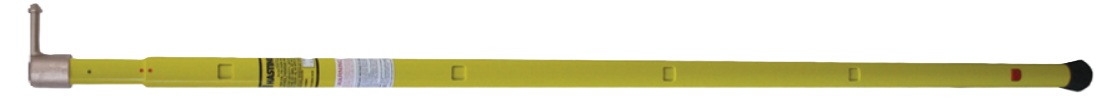

Hastings 3114 Substation Stick 8 Foot 4 Inch To 14 Foot

Hastings Fiber Glass Products 3114 Substation Stick 8'4" To 14' New

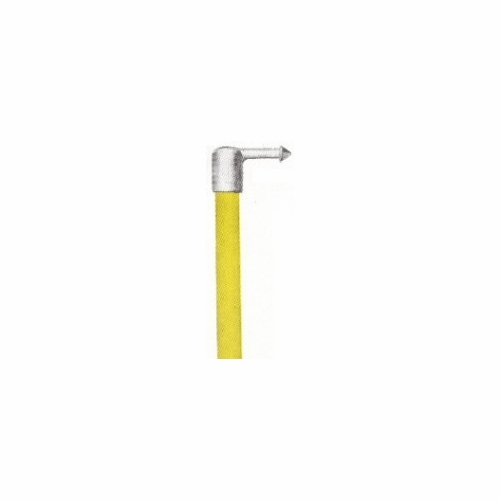

Substation Adjustable Length Disconnect Tel-O-Pole� Sticks Designed For Use In Close Confines Of Substations Features And Benefits: O Disconnect Head O Round Stick With Hastings Square Button Design Prevents Button Shearing Under Heavy Load O Eliminates Problem Of Threading Long Sticks Through Substation Structure O Eliminates Multiple Length Stick Requirements, Sticks Are Adjustable To Length In One Foot Increments O Top Section Is Conventional 1-1/4" Diameter Hot Stick. Can Be Removed For Use As Single One Piece Hot Stick. Base Section Is 1-1/2" Diameter. O Extended Length Is Shown At Each Lock Position For Reference O Safe Guard Design, Top Section Must Extend Beyond Base Before Lock Will Engage, Giving Full Protection Of Fire Retardant Unicellular Core (See Information On Collapsed And Minimum Usable Length) O Available With Standard Disconnect Head, Switch Head, Or Universal Head

Specifications: O Extended Length : 14 Ft O Minimum Usable Length : 10 Ft O Collapsed Length : 8 Ft 4 In.

Weight : 5.5 LbsRead More
