HASTINGS FIBER GLASS PRODUCTS 21365 Grounding Reel #21362 with 40FT #2/0 Str.Cu. Ground Cable NEW

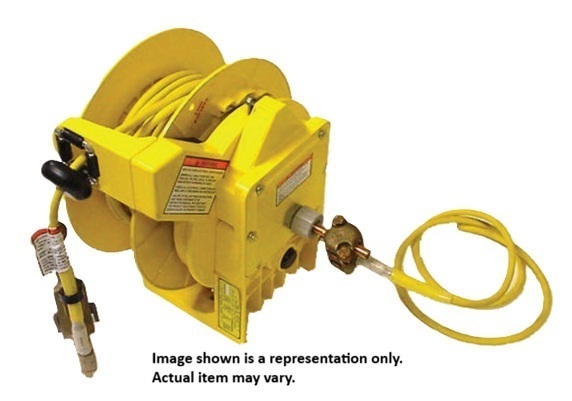

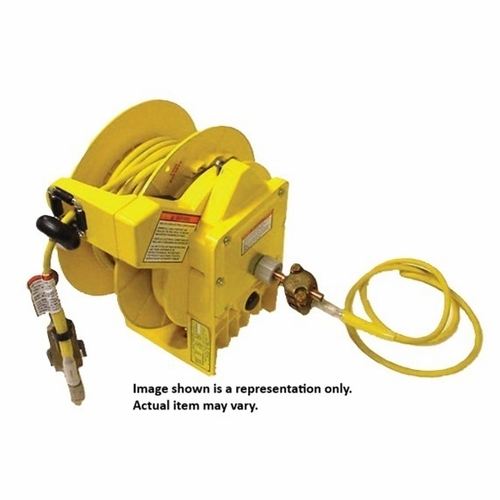

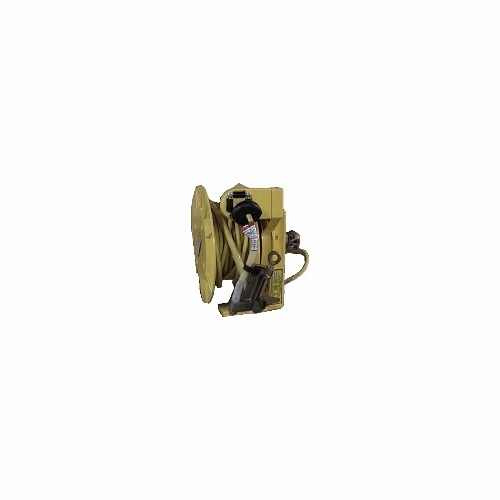

Retracting Grounding Reel 21362 with 40 FT of #2/0 Yellow Ground Cable (Factory Installed) and 21307 Bronze Clamp on One End
Two models available to ensure adequate cable lengths to meet truck grounding requirements small or
large
Compact design grounding reels provide an efficient and positive means to ground trucks working on or
near energized lines.
Grounding reels have been tested for maximum fault current rating and can be tested without removing
from the truck.
The ground connection from reel to the vehicle is made during the initial installation.
Reels are designed to be bolted to the vehicle so they can be removed easily for transfer to new trucks.
Spring rewind drum for controlled payout and take up.
4 way cable guide rollers allow for one man operation and prevents excessive wear on the ground cable.
Weather tight construction to prevent corrosion.
All cataloged ground reels with factory installed cables include a 6 FT length of 2/0 ground cable to connect
the reel to the truck.
Item A30205, a 4 way bronze tee connector is provided to connect one end of the
cable to the ground stud on the reel. The other end must be connected to the truck frame by a suitable
means.
WEIGHT : 57 LBS
