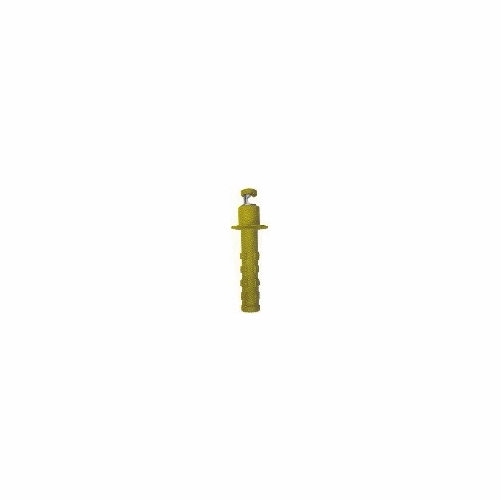

HASTINGS 11000 Qty. 1 Large Range Jumper Clamp
Available*
Item # 30847350
Model # 11000
$181.32
financing available. Learn More
* Notes on Availability:
If item is in stock, it will ship same day.
Lead times vary, contact us for more info.
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description
HASTINGS FIBER GLASS PRODUCTS 10-965 1000 Qty. 1 Large Range Jumper Clamp NEW
MECHANICAL JUMPER CLAMPS - LARGE RANGE JUMPER CLAMP YELLOW o Two sizes available - 6 solid through 556.5 MCM and 6 solid through 954 ACSR o Easy to install o Thrust bearing design provides low friction for tightening clamp o Bronze clamping rings have serrated contact surface to insure good electrical contact with conductors o Two styles available... ----Yellow handles are made from bright yellow, impact resistant modified polyolefin material ----Clear handles are made from a high impact plastic material o Grip tabs are molded in for easy gripping with rubber gloves o Conductor clamp is machined from brass alloy o Rated for 400 amps continuous current maximum rating - this rating is dependent on the rating of the jumper cable used with the clamps
SPECIFICATIONS o MAIN LINE RANGE : MAX - 954 ACSR 36/1 o MAIN LINE RANGE : MIN - 6 SOLID .162 DIA o JUMPER CABLE RANGE : MAX - 4/0 15KV, 1/0 25KV, 1/0 35KV o JUMPER CABLE RANGE : MIN - #2 15KV
WEIGHT : 2.7 LBS
MECHANICAL JUMPER CLAMPS - LARGE RANGE JUMPER CLAMP YELLOW o Two sizes available - 6 solid through 556.5 MCM and 6 solid through 954 ACSR o Easy to install o Thrust bearing design provides low friction for tightening clamp o Bronze clamping rings have serrated contact surface to insure good electrical contact with conductors o Two styles available... ----Yellow handles are made from bright yellow, impact resistant modified polyolefin material ----Clear handles are made from a high impact plastic material o Grip tabs are molded in for easy gripping with rubber gloves o Conductor clamp is machined from brass alloy o Rated for 400 amps continuous current maximum rating - this rating is dependent on the rating of the jumper cable used with the clamps
SPECIFICATIONS o MAIN LINE RANGE : MAX - 954 ACSR 36/1 o MAIN LINE RANGE : MIN - 6 SOLID .162 DIA o JUMPER CABLE RANGE : MAX - 4/0 15KV, 1/0 25KV, 1/0 35KV o JUMPER CABLE RANGE : MIN - #2 15KV
WEIGHT : 2.7 LBS
