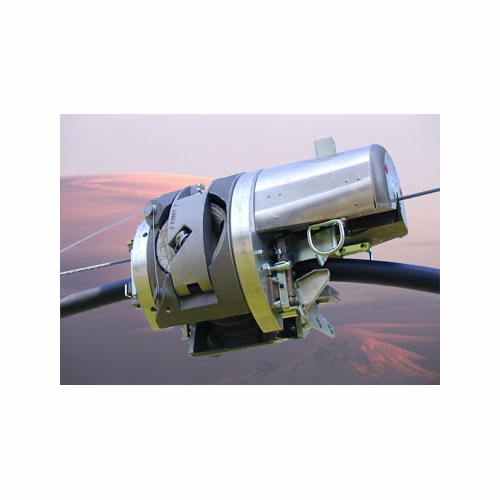

GMP 86070 J2 LASHER WITH CASE CABLE TO 3 inch DIAMETER-0.45 inch

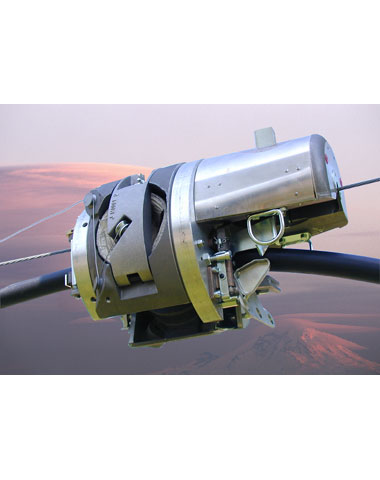

GENERAL MACHINE PRODUCTS 86070 J2 LASHER WITH CASE CABLE TO 3" DIAMETER-.045" NEW The Cable Lasher is used to lash an aerial cable or numerous cables to a supporting strand or to an existing lashed cable with stainless steel lashing wire. Will lash any single or multiple aerial cables up to 3 in. diameter across on any suspension strand from 1/4 in. (6 mm) to 7/16 in. (11 mm). A factory modification will allow the lasher to accommodate 1/2 in. (13 mm) strand if necessary. Consists of a rotating drum supported on a carriage that provides the mounting for a driving mechanism, cable lifters, cable and strand rollers Each of two recessed magazines will hold a 1200 ft. coil of .045 in. (365 m of 1.1 mm wire) lashing wire (or 450 ft. of .065 in.) The Lashing Wire is fully recessed and covered by a gate. Features a fast setup procedure, quick coil loading, and automatic drum lock for easy span transfers and smooth forward travel. J2 Lashers make overlashing easy. Just push down on the strand roller knob, rotate it a quarter turn and you can lash additional cables together on previously lashed cable Positive internal gear to gear mechanism has no chains or belts to stretch, slip or break Constructed with heat treated, plated steel, stainless steel, brass and aluminum components. Contains sealed and oiless bearings to minimize maintenance and assure durability Pre-drilled and tapped at the factory for mounting of the lasher guard or "halo". For use when lashing in overgrown areas The lasher is furnished with a rugged lightweight storage chest with corrosion resistant hardware, recessed latches and a moisture proof, tongue in groove for maximum protection when not in use. Supplied with a 6 ft. bridle rope assembly and snap hooks, and an information and operation manual. The J2 Lasher's design also gives it maximum service life. The body is cylindrical to help it slip more easily through branches and obstructions. There is a built-in mechanical brake to prevent unintended reversal, an automatic drum lock for easy span transfers, an all-range tensioning device for optimum strand traction and high strength front and rear gates for tighter lashing.



P/N Description Wire Dia. Weight 86070 J2 Cable Lasher Standard w/ Chest .045 65 lbs. (30 kgs) 86071 J2 Cable Lasher w/ Chest Modified for 450 ft. (optional) .065 65 lbs. (30 kgs) Weight of lasher only 46 lbs. (21 kgs) 86072 J2 Cable Lasher Modified for .535 in. strand 65 lbs. (30 kgs) 86074 J2 Cable Lasher w/o strand lock 65 lbs. (30 kgs) 03165 Bridle Rope Assembly only 3 lbs. (1.4 kg) 08189 Chest only 19 lbs. (8.6 kgs) 70190 Towing Lanyard 35 ft. (10.7 M) (optional) 6 lbs. (2.7 kgs) 70012 Lasher Guard “Halo” (optional) 3 lbs. (1.4 kg)
