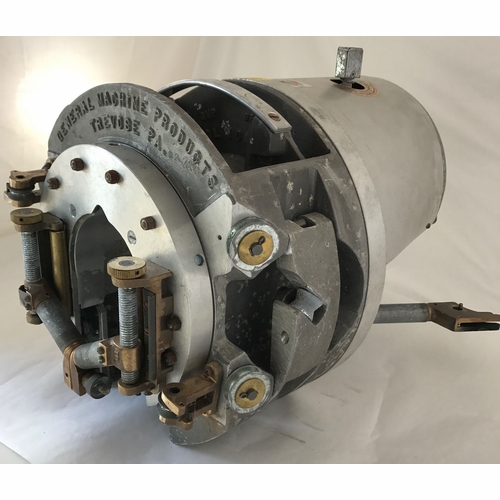

GMP 10500 G CABLE LASHER REBUILT WITH WARRANTY EXTRA LARGE THROAT
Available*
Item # 30600010
Model # G LASHER- R
$7,875.00
financing available. Learn More
* Notes on Availability:
If item is in stock, it will ship same day.
Lead times vary, contact us for more info.
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Generic
Class
Group
Type
Manufacturer
LOT
Lashers
Tools
Line Construction- Placing
Lashers- Spinners
GMP General Machine Products
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description

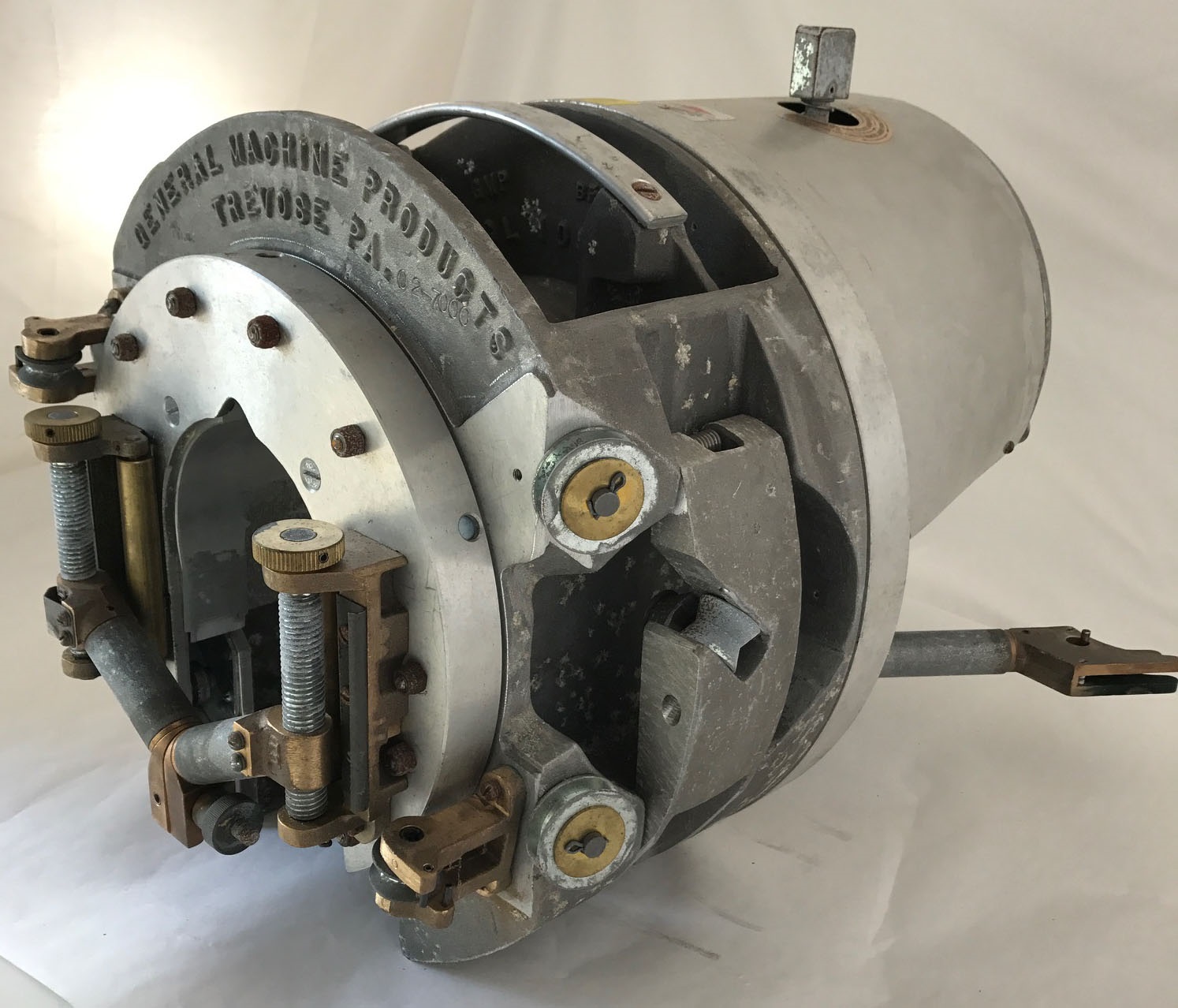

GENERAL MACHINE PRODUCTS 10500 G cable Lasher rebuilt with warranty( lasher only)
The largest of the GENERAL MACHINE PRODUCTS Lashers, this unit is designed to lash large single or combination of aerial cable up to 5 in. diameter to a supporting strand. Can be used for new installs or with existing cables in place.
Lashes any cable from about 2-1/2 in. to 5 in. (64-127 mm) diameter, on strand from 11/32 in. to 3/4 in. (9-19 mm) diameters with one or two left lay spiral wrappings of .065 in. diameter stainless steel wire
Nominal spacing between wraps is 16-1/2 in. (42 cm).
Each lasher includes a 6 ft. bridle rope assembly with snap hooks, an information and operations manual and a heavy duty storage chest
This big tough lasher has a pulling mechanism that pivots about the axis of the rear driving roller, so it always applies the right amount of hold down force. For lashing large diameter cable, it's your best choice.
--------------------------------------------------------------------------------
10500 G Cable Lasher Standard .065 71 lbs. (32.3 kgs) 10502 G Cable Lasher Modified for 1200 ft.of .045 in. wire .045 71 lbs. (32.3 kgs) 103165 Bridle Rope Assembly only 3 lbs. (1.4 kg) 10501 Chest only 36 lbs. (16.4 kgs) 70190 G Cable Lasher w/Chest Shipping Weight 110 lbs. (50 kgs)
The largest of the GENERAL MACHINE PRODUCTS Lashers, this unit is designed to lash large single or combination of aerial cable up to 5 in. diameter to a supporting strand. Can be used for new installs or with existing cables in place.
Lashes any cable from about 2-1/2 in. to 5 in. (64-127 mm) diameter, on strand from 11/32 in. to 3/4 in. (9-19 mm) diameters with one or two left lay spiral wrappings of .065 in. diameter stainless steel wire
Nominal spacing between wraps is 16-1/2 in. (42 cm).
Each lasher includes a 6 ft. bridle rope assembly with snap hooks, an information and operations manual and a heavy duty storage chest
This big tough lasher has a pulling mechanism that pivots about the axis of the rear driving roller, so it always applies the right amount of hold down force. For lashing large diameter cable, it's your best choice.
--------------------------------------------------------------------------------
10500 G Cable Lasher Standard .065 71 lbs. (32.3 kgs) 10502 G Cable Lasher Modified for 1200 ft.of .045 in. wire .045 71 lbs. (32.3 kgs) 103165 Bridle Rope Assembly only 3 lbs. (1.4 kg) 10501 Chest only 36 lbs. (16.4 kgs) 70190 G Cable Lasher w/Chest Shipping Weight 110 lbs. (50 kgs)
