DCD 24000-175 Power-Grip Pulling Eye 1750 MCM Lug Style
Available*
Item # 30509368
Model # 24000-175
$398.34
financing available. Learn More
* Notes on Availability:
If item is in stock, it will ship same day.
Lead times vary, contact us for more info.
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Generic
Class
Group
Type
Manufacturer
LOT
Pull Eyes
Tools
Line Construction- Placing
Eyes- Cable Pulling
DCD Design And Manufacturing Ltd
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description
DCD 24000-175 Power-Grip Pulling Eye 1750 MCM Lug Style
DCD 24000-175 Power-Grip Pulling Eye 1750 MCM Lug Style
Part # 24000-175 Description Power-grip Pulling Eye 1500 MCM Lug Style

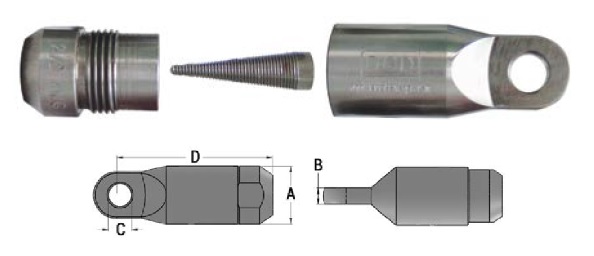

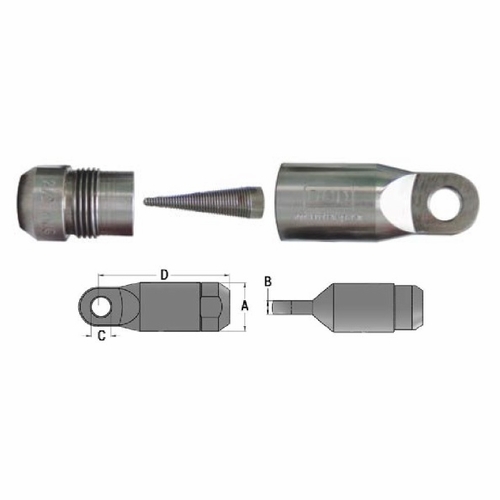

Maximum Cable Size 1750 MCM Maximum Core Diameter 1.53 inch 38.9 mm A 2-3/4 inch B 3/4 inch C 1 -1/32 inch D 7-15/16 inch Weight 5.84 lb Larger Power-Grips are machined from alloy steel and plated. Power-Grip Components include: Threaded Cone Nut # 24006-175 Tapered Insert # 24005-125 Body # 24007-125 Fits Line Swivels 00505-035 to 00505-041
The Power-Grip™ pulling eye is reusable and has a lug style head that will attach directly to a swivel. All materials are stainless steel. Only four body sizes are used to cover the range from 1/0 to 5000 MCM cable. Note that these pulling eyes should always be used with a Line Swivel (00505 series).
DCD 24000-175 Power-Grip Pulling Eye 1750 MCM Lug Style
Part # 24000-175 Description Power-grip Pulling Eye 1500 MCM Lug Style
Maximum Cable Size 1750 MCM Maximum Core Diameter 1.53 inch 38.9 mm A 2-3/4 inch B 3/4 inch C 1 -1/32 inch D 7-15/16 inch Weight 5.84 lb Larger Power-Grips are machined from alloy steel and plated. Power-Grip Components include: Threaded Cone Nut # 24006-175 Tapered Insert # 24005-125 Body # 24007-125 Fits Line Swivels 00505-035 to 00505-041
The Power-Grip™ pulling eye is reusable and has a lug style head that will attach directly to a swivel. All materials are stainless steel. Only four body sizes are used to cover the range from 1/0 to 5000 MCM cable. Note that these pulling eyes should always be used with a Line Swivel (00505 series).
