DCD 41000-600 TUF-Lugger™ Lite Lifting - Heavy Duty Gas Industrial Pulling and Lifting winch
Available*
Item # 30509198
Model # 41000-600
$4,642.92
financing available. Learn More
* Notes on Availability:
If item is in stock, it will ship same day.
Lead times vary, contact us for more info.
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Generic
Class
Group
Type
Manufacturer
LOT
Tuggers
Tools
Line Construction- Placing
Puller- Tuggers- Winches
DCD Design And Manufacturing Ltd
Pullers-Tuggers-Winches
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description
DCD 41000-600 TUF-Lugger™ Lite Lifting - Heavy Duty Gas Industrial Pulling and Lifting winch
DCD 41000-600 TUF-Lugger™ Lite Lifting - Heavy Duty Gas Industrial Pulling and Lifting winch
Part # 41000-600 Description TUF-Lugger™ Lite Lifting - Heavy Duty Gas Industrial Pulling and Lifting winch
Application Industrial Pulling and Lifting Engine Honda GX-160cc Turns at Idle No Gearbox (Ratio) Aluminum Alloy (53:1) Maximum Pulling Force 2,200 lb Maximum Lifting Force 990 lb Standard Capstan Size 4-1/4 inch Drum Pulling Speed 4-1/4" Drum 72' per min Max Force: 2,000 lb Rope Size 1/2 inch Dimesions 18" L x 14-5/8" W x 14-1/4" H Work Cycle 100% Continuous Work Weight 76 lbs

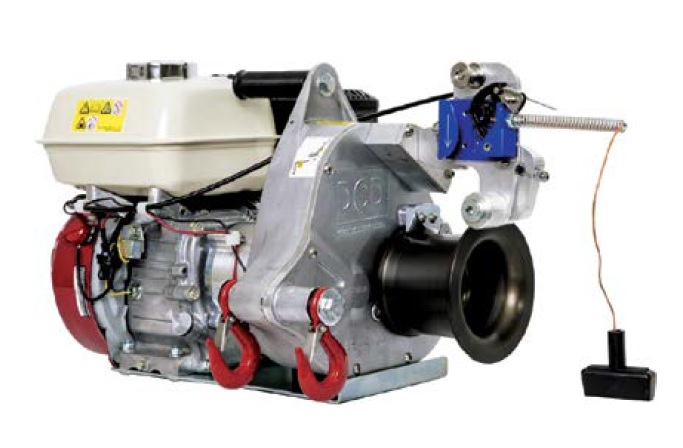

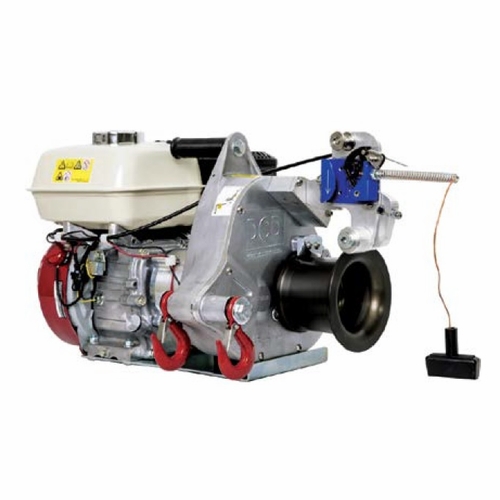

TUF-Lugger™ Lite Lifting - Heavy Duty This gas powered unit is equipped with a Honda GX-160 cc engine, which offers superior performance in a wide variety of tasks, such as erecting towers, lifting antennas, replacing insulators, cable pulling and other arduous tasks. The integrated rope grabbing system allows the operator to work safely and the start/stop mechanism means he can focus on the task required. This system can be used to lift or lower a load. A wide range of accessories are available to simplify the installation process and anchor this model at various anchoring points such as a vehicle, a post, a pylon and more.
DCD 41000-600 TUF-Lugger™ Lite Lifting - Heavy Duty Gas Industrial Pulling and Lifting winch
Part # 41000-600 Description TUF-Lugger™ Lite Lifting - Heavy Duty Gas Industrial Pulling and Lifting winch
Application Industrial Pulling and Lifting Engine Honda GX-160cc Turns at Idle No Gearbox (Ratio) Aluminum Alloy (53:1) Maximum Pulling Force 2,200 lb Maximum Lifting Force 990 lb Standard Capstan Size 4-1/4 inch Drum Pulling Speed 4-1/4" Drum 72' per min Max Force: 2,000 lb Rope Size 1/2 inch Dimesions 18" L x 14-5/8" W x 14-1/4" H Work Cycle 100% Continuous Work Weight 76 lbs
TUF-Lugger™ Lite Lifting - Heavy Duty This gas powered unit is equipped with a Honda GX-160 cc engine, which offers superior performance in a wide variety of tasks, such as erecting towers, lifting antennas, replacing insulators, cable pulling and other arduous tasks. The integrated rope grabbing system allows the operator to work safely and the start/stop mechanism means he can focus on the task required. This system can be used to lift or lower a load. A wide range of accessories are available to simplify the installation process and anchor this model at various anchoring points such as a vehicle, a post, a pylon and more.
