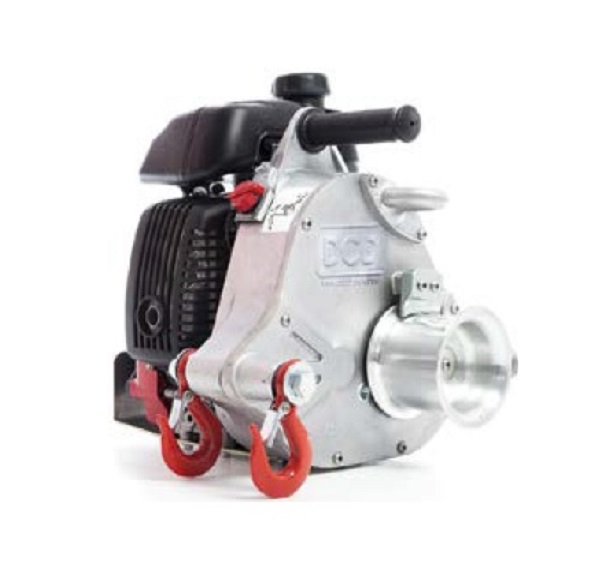

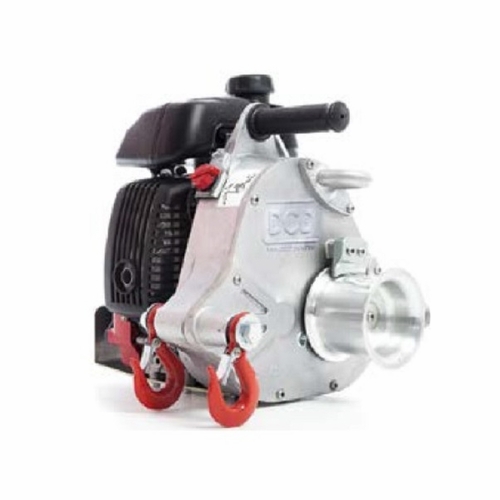

DCD 41000-300 TUF-Lugger™ Lite (High Speed) Gas powered Pulling Force 700 lb
Available*
Item # 30509192
Model # 41000-300
$2,482.92
financing available. Learn More
* Notes on Availability:
If item is in stock, it will ship same day.
Lead times vary, contact us for more info.
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Generic
Class
Group
Type
Manufacturer
LOT
Tuggers
Tools
Line Construction- Placing
Puller- Tuggers- Winches
DCD Design And Manufacturing Ltd
Pullers-Tuggers-Winches
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description
DCD 41000-300 TUF-Lugger™ Lite (High Speed) Gas powered Pulling Force 700 lb
DCD 41000-300 TUF-Lugger™ Lite (High Speed) Gas powered Pulling Force 700 lb
Part # 41000-300 Description TUF-Lugger™ Lite (High Speed) Gas powered Pulling Force 700 lb
Application Pulling Engine 4-Stroke Honda GXH-50cc Gearbox (Ratio) Aluminum Alloy (53:1) Turns at Idle Yes Maximum Pulling Force 1,100 lb Standard Capstan Size 3-3/8 inch Drum Pulling Speed (2.25 inch Drum) 75' per min Max Force: 1100 lb Pulling Speed (3-3/8 inch Drum) 115' per min. Max Force: 770 lb Rope Size (Pulling) 3/8 to 5/8 inch Dimesions 14-1/4" L x 14-5/8" W x 14-1/4" H Work Cycle 100% Continuous Work Weight 35 lbs
The overall pulling weight that this unit can handle is lower than the regular speed model, but with a larger capstan drum, and a lower gear ratio this unit can pull at speeds of up to 115' per minute. The other features that you’ll find on the regular speed model are still standard on this model, including the gas engine, and continuous work cycle.
DCD 41000-300 TUF-Lugger™ Lite (High Speed) Gas powered Pulling Force 700 lb
Part # 41000-300 Description TUF-Lugger™ Lite (High Speed) Gas powered Pulling Force 700 lb
Application Pulling Engine 4-Stroke Honda GXH-50cc Gearbox (Ratio) Aluminum Alloy (53:1) Turns at Idle Yes Maximum Pulling Force 1,100 lb Standard Capstan Size 3-3/8 inch Drum Pulling Speed (2.25 inch Drum) 75' per min Max Force: 1100 lb Pulling Speed (3-3/8 inch Drum) 115' per min. Max Force: 770 lb Rope Size (Pulling) 3/8 to 5/8 inch Dimesions 14-1/4" L x 14-5/8" W x 14-1/4" H Work Cycle 100% Continuous Work Weight 35 lbs
The overall pulling weight that this unit can handle is lower than the regular speed model, but with a larger capstan drum, and a lower gear ratio this unit can pull at speeds of up to 115' per minute. The other features that you’ll find on the regular speed model are still standard on this model, including the gas engine, and continuous work cycle.
