DCD 00925-100C Swivel Grip 1000 MCM Compact
DCD 00925-100C Swivel Grip 1000 MCM Compact

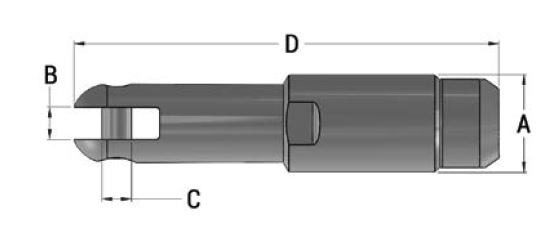

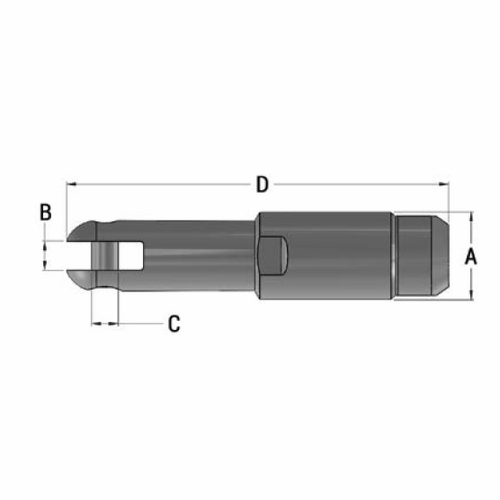

Part # 00925-100C Description Swivel Grip pulling eye Maximum Cable Size 1000 MCM Compact Maximum Core Diameter 1.03 inch 26.2 mm A 2-1/8 inch 54 mm B 25/32 inch 19.8 mm C 11/16 inch 17.4 mm D 8 inch 203 mm Weight 4.40 lb 2.2 kg
Swivel-Grip Components include: Threaded Cone Nut 24006-100C Tapered Insert 24005-070 Body 00926-070 Fits Bridle Sling 3/8 and 1/2 inch
The Swivel-Grip™ pulling eye is reusable and has a built in swivel. It is constructed with all the features of the DCD Line Swivel (00505 series). The clevis head will attach directly onto a bridle sling or other pulling rope.
DCD 00925-100C Swivel Grip 1000 MCM Compact
Part # 00925-100C Description Swivel Grip pulling eye Maximum Cable Size 1000 MCM Compact Maximum Core Diameter 1.03 inch 26.2 mm A 2-1/8 inch 54 mm B 25/32 inch 19.8 mm C 11/16 inch 17.4 mm D 8 inch 203 mm Weight 4.40 lb 2.2 kg
Swivel-Grip Components include: Threaded Cone Nut 24006-100C Tapered Insert 24005-070 Body 00926-070 Fits Bridle Sling 3/8 and 1/2 inch
The Swivel-Grip™ pulling eye is reusable and has a built in swivel. It is constructed with all the features of the DCD Line Swivel (00505 series). The clevis head will attach directly onto a bridle sling or other pulling rope.
