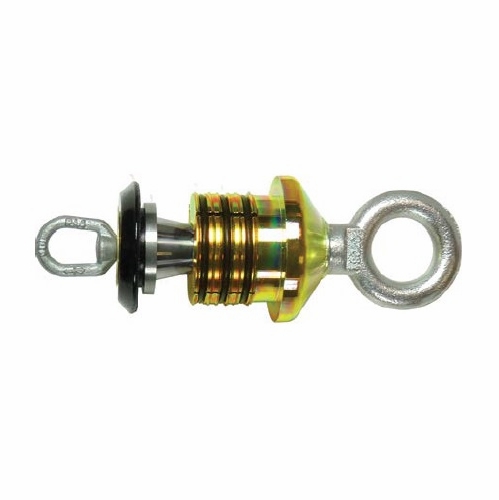

DCD 00617-110 Duct Puller 110mm Duct
Available*
Item # 30509120
Model # 00617-110
$538.81
financing available. Learn More
* Notes on Availability:
If item is in stock, it will ship same day.
Lead times vary, contact us for more info.
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Generic
Class
Group
Type
Manufacturer
LOT
Pull Eyes
Tools
Line Construction- Placing
Eyes- Cable Pulling
DCD Design And Manufacturing Ltd
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description

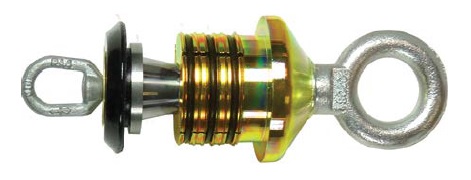

DCD 00617-110 Duct Puller 110mm Duct
DCD 00617-110 Duct Puller 110mm Duct
Part # 00617-110 Description Made to order Metric Duct Puller 110 mm Nominal Duct Size 110 mm 3:1 Safe Working Load 53.3 kN Rear Eye Capacity (3:1 SWL) 16.7 kN Minimum Inside Duct Diameter 3.313 inch / 84.1 mm Maximum Inside Duct Diameter 4.031 inch / 102.4 mm Weight 6.0 kg Duct Sleeve Part No. 00626-110
Metric Version 00617 Duct Pullers are the same as the 00616 series, but are designed with jaws that allow sizing to metric duct sizes. These Pullers are made to order.
The 00616/00617 series pullers were designed based on the older 00619 series pullers. After a customer request for a easier to handle puller we created a puller with a steel face plate instead of polyurethane. This design change has been made to satisfy customer request. As with the 00619 series, these pullers are designed with a larger expansion range in each unit as compared to the 00620 series. The puller comes standard with a duct plugger installed and complete with a rear pulling eye. Note: Safe Working Load is based on the duct yield strength to protect from creep failure.
DCD 00617-110 Duct Puller 110mm Duct
Part # 00617-110 Description Made to order Metric Duct Puller 110 mm Nominal Duct Size 110 mm 3:1 Safe Working Load 53.3 kN Rear Eye Capacity (3:1 SWL) 16.7 kN Minimum Inside Duct Diameter 3.313 inch / 84.1 mm Maximum Inside Duct Diameter 4.031 inch / 102.4 mm Weight 6.0 kg Duct Sleeve Part No. 00626-110
Metric Version 00617 Duct Pullers are the same as the 00616 series, but are designed with jaws that allow sizing to metric duct sizes. These Pullers are made to order.
The 00616/00617 series pullers were designed based on the older 00619 series pullers. After a customer request for a easier to handle puller we created a puller with a steel face plate instead of polyurethane. This design change has been made to satisfy customer request. As with the 00619 series, these pullers are designed with a larger expansion range in each unit as compared to the 00620 series. The puller comes standard with a duct plugger installed and complete with a rear pulling eye. Note: Safe Working Load is based on the duct yield strength to protect from creep failure.
