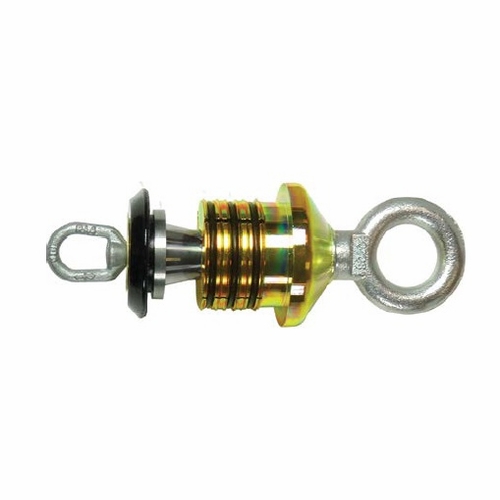

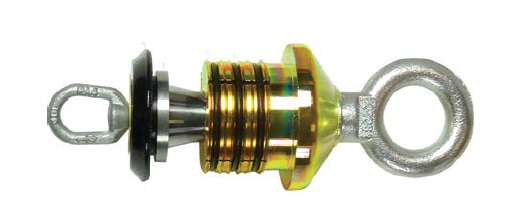

DCD 00617-063 Duct Puller 63Mm Duct

Dcd 00617-063 Duct Puller 63Mm Duct

Dcd 00617-063 Duct Puller 63Mm Duct

Part # 00617-063 Description Made To Order Metric Duct Puller 63 Mm Nominal Duct Size 63 Mm 3:1 Safe Working Load 38.2 Kn Rear Eye Capacity (3:1 Swl) 5.8 Kn Minimum Inside Duct Diameter 1.800 Inch / 45.7 Mm Maximum Inside Duct Diameter 2.250 Inch / 57.1 Mm Weight 1.5 Kg Duct Sleeve Part No. 00626-063

Metric Version 00617 Duct Pullers Are The Same As The 00616 Series, But Are Designed With Jaws That Allow Sizing To Metric Duct Sizes. These Pullers Are Made To Order.

The 00616/00617 Series Pullers Were Designed Based On The Older 00619 Series Pullers. After A Customer Request For A Easier To Handle Puller We Created A Puller With A Steel Face Plate Instead Of Polyurethane. This Design Change Has Been Made To Satisfy Customer Request. As With The 00619 Series, These Pullers Are Designed With A Larger Expansion Range In Each Unit As Compared To The 00620 Series. The Puller Comes Standard With A Duct Plugger Installed And Complete With A Rear Pulling Eye. Note: Safe Working Load Is Based On The Duct Yield Strength To Protect From Creep Failure.Read More
