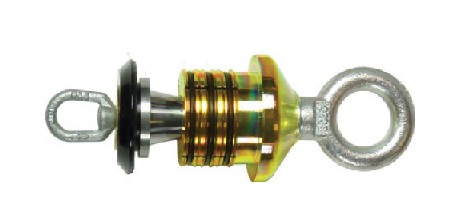

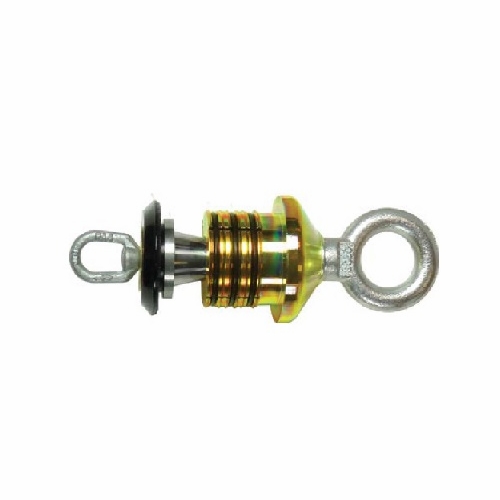

DCD 00616-125 Duct Puller 1-1/4 inch Duct
Available*
Item # 30509094
Model # 00616-125
$227.41
financing available. Learn More
* Notes on Availability:
If item is in stock, it will ship same day.
Lead times vary, contact us for more info.
(Images may not be of the actual item being sold.)
- Product Description
- You Might Also like
- Recently Viewed
Generic
Class
Group
Type
Manufacturer
LOT
Pull Eyes
Tools
Line Construction- Placing
Eyes- Cable Pulling
DCD Design And Manufacturing Ltd
Warning: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.govProduct Description
DCD 00616-125 Duct Puller 1-1/4 inch Duct
DCD 00616-125 Duct Puller 1-1/4 inch Duct
Part # 00616-125 Description Expanding Duct Puller Nominal Duct Size 1-1/4 inch 3:1 Safe Working Load 4,300 lb Rear Eye Capacity (3:1 SWL) 1,100 lb Minimum Inside Duct Diameter 1.280 inch / 32.5 mm Maximum Inside Duct Diameter 1.610 inch / 40.9 mm Weight 1.3 lb Duct Sleeve Part No. 00625-125 Note: Safe Working Load is based on the duct yield strength to protect from creep failure.
Expanding Duct Puller - 00616 Series The 00616/00617 series pullers were designed based on the older 00619 series pullers. After a customer request for a easier to handle puller we created a puller with a steel face plate instead of polyurethane. This design change has been made to satisfy customer request. As with the 00619 series, these pullers are designed with a larger expansion range in each unit as compared to the 00620 series. The puller comes standard with a duct plugger installed and complete with a rear pulling eye. Standard duct sleeves (00625 series) can also be used with this product.
DCD 00616-125 Duct Puller 1-1/4 inch Duct
Part # 00616-125 Description Expanding Duct Puller Nominal Duct Size 1-1/4 inch 3:1 Safe Working Load 4,300 lb Rear Eye Capacity (3:1 SWL) 1,100 lb Minimum Inside Duct Diameter 1.280 inch / 32.5 mm Maximum Inside Duct Diameter 1.610 inch / 40.9 mm Weight 1.3 lb Duct Sleeve Part No. 00625-125 Note: Safe Working Load is based on the duct yield strength to protect from creep failure.
Expanding Duct Puller - 00616 Series The 00616/00617 series pullers were designed based on the older 00619 series pullers. After a customer request for a easier to handle puller we created a puller with a steel face plate instead of polyurethane. This design change has been made to satisfy customer request. As with the 00619 series, these pullers are designed with a larger expansion range in each unit as compared to the 00620 series. The puller comes standard with a duct plugger installed and complete with a rear pulling eye. Standard duct sleeves (00625 series) can also be used with this product.
